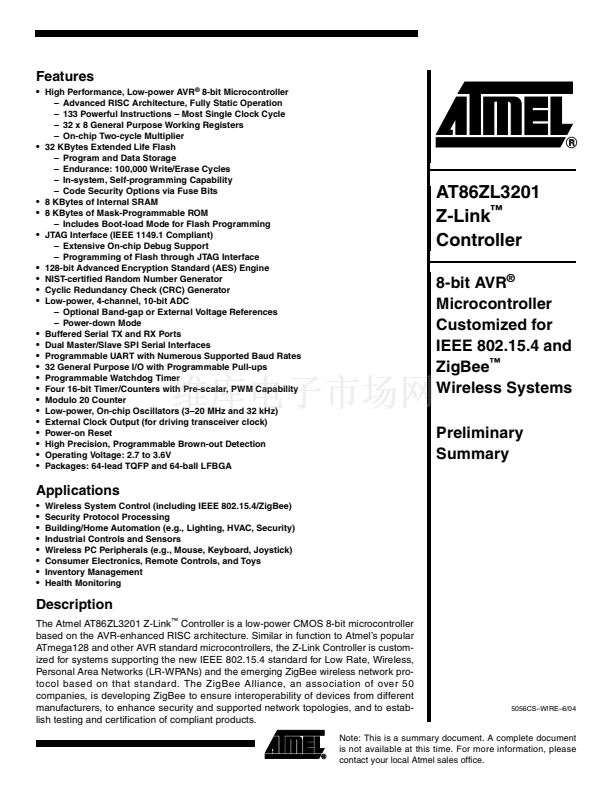

High Performance, Low-power AVR
廬
8-bit Microcontroller
鈥?Advanced RISC Architecture, Fully Static Operation
鈥?133 Powerful Instructions 鈥?Most Single Clock Cycle
鈥?32 x 8 General Purpose Working Registers
鈥?On-chip Two-cycle Multiplier
32 KBytes Extended Life Flash
鈥?Program and Data Storage
鈥?Endurance: 100,000 Write/Erase Cycles
鈥?In-system, Self-programming Capability
鈥?Code Security Options via Fuse Bits
8 KBytes of Internal SRAM
8 KBytes of Mask-Programmable ROM
鈥?Includes Boot-load Mode for Flash Programming
JTAG Interface (IEEE 1149.1 Compliant)
鈥?Extensive On-chip Debug Support
鈥?Programming of Flash through JTAG Interface
128-bit Advanced Encryption Standard (AES) Engine
NIST-certified Random Number Generator
Cyclic Redundancy Check (CRC) Generator
Low-power, 4-channel, 10-bit ADC
鈥?Optional Band-gap or External Voltage References
鈥?Power-down Mode
Buffered Serial TX and RX Ports
Dual Master/Slave SPI Serial Interfaces
Programmable UART with Numerous Supported Baud Rates
32 General Purpose I/O with Programmable Pull-ups
Programmable Watchdog Timer
Four 16-bit Timer/Counters with Pre-scalar, PWM Capability
Modulo 20 Counter
Low-power, On-chip Oscillators (3鈥?0 MHz and 32 kHz)
External Clock Output (for driving transceiver clock)
Power-on Reset
High Precision, Programmable Brown-out Detection
Operating Voltage: 2.7 to 3.6V
Packages: 64-lead TQFP and 64-ball LFBGA
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
AT86ZL3201
Z-Link
鈩?/div>
Controller
8-bit AVR
廬
Microcontroller
Customized for
IEEE 802.15.4 and
ZigBee
鈩?/div>
Wireless Systems
Preliminary
Summary
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Wireless System Control (including IEEE 802.15.4/ZigBee)
Security Protocol Processing
Building/Home Automation (e.g., Lighting, HVAC, Security)
Industrial Controls and Sensors
Wireless PC Peripherals (e.g., Mouse, Keyboard, Joystick)
Consumer Electronics, Remote Controls, and Toys
Inventory Management
Health Monitoring
Description
The Atmel AT86ZL3201 Z-Link
鈩?/div>
Controller is a low-power CMOS 8-bit microcontroller
based on the AVR-enhanced RISC architecture. Similar in function to Atmel鈥檚 popular
ATmega128 and other AVR standard microcontrollers, the Z-Link Controller is custom-
ized for systems supporting the new IEEE 802.15.4 standard for Low Rate, Wireless,
Personal Area Networks (LR-WPANs) and the emerging ZigBee wireless network pro-
tocol based on that standard. The ZigBee Alliance, an association of over 50
companies, is developing ZigBee to ensure interoperability of devices from different
manufacturers, to enhance security and supported network topologies, and to estab-
lish testing and certification of compliant products.
5056CS鈥揥IRE鈥?/04
Note: This is a summary document. A complete document
is not available at this time. For more information, please
contact your local Atmel sales office.
