Standard MII Port
Inter-networking Unit (INWARM) with Integrated ARM7TDMI
廬
RISC Processor Provides
the Bridging Functions between Ethernet and Wireless Interfaces
WLAN MAC Unit with a Second ARM7TDMI RISC Processor and Integrated 128-byte
Transmit and 128-byte Receive FIFOs, for Wireless MAC Layer Functions
Glueless SRAM Interface for all MAC Operations, Supporting up to 16M Bytes of
Common External Memory Shared between Both Processors
Integrated 2 x 6K x 32-bit Internal SRAM Memory Banks, Used for Each Processor鈥檚
Program Code and Data Space
Glueless Flash Memory Interface, Supporting up to 16M Bytes of Nonvolatile Memory
for Permanent Storage of Program Code
Enciphering/Deciphering of Wireless Data On-the-fly Ensures Maximum Privacy
of Data
The Integrated Physical Attachment Interface (PAI), Fully Supports Direct Sequence
Spread Spectrum and Frequency Hopping Spread Spectrum (2 Mbps) Physical-layer
Interfaces
The WLAN and Inter-networking Functions Can Be Changed and Updated Easily to
New Requirements Since They are Implemented in Microcode
3.3V for Core and I/O
128-lead Plastic Quad Flat Pack (PQFP) or Thin Quad Flat Pack (TQFP) Package
Ethernet to
Wireless
Bridge-on-a-
Chip
AT76C510
VNET-B
Summary

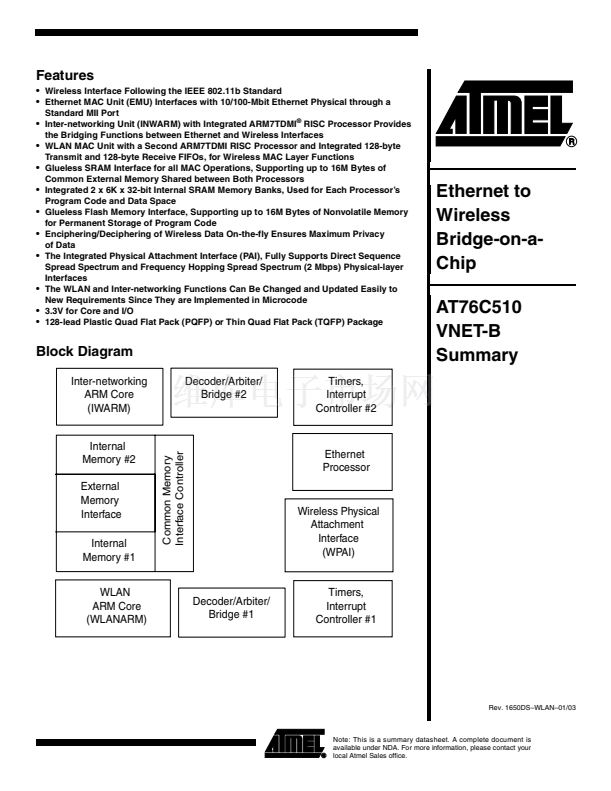

Block Diagram
Inter-networking
ARM Core
(IWARM)
Internal
Memory #2
External
Memory
Interface
Internal
Memory #1
WLAN
ARM Core
(WLANARM)
Decoder/Arbiter/
Bridge #2
Timers,
Interrupt
Controller #2
Common Memory
Interface Controller
Ethernet
Processor
Wireless Physical
Attachment
Interface
(WPAI)
Decoder/Arbiter/
Bridge #1
Timers,
Interrupt
Controller #1
Rev. 1650DS鈥揥LAN鈥?1/03
Note: This is a summary datasheet. A complete document is
available under NDA. For more information, please contact your
local Atmel Sales office.
