AT49LV040T-90VC Datasheet

  • AT49LV040T-90VC

  • x8 Flash EEPROM

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

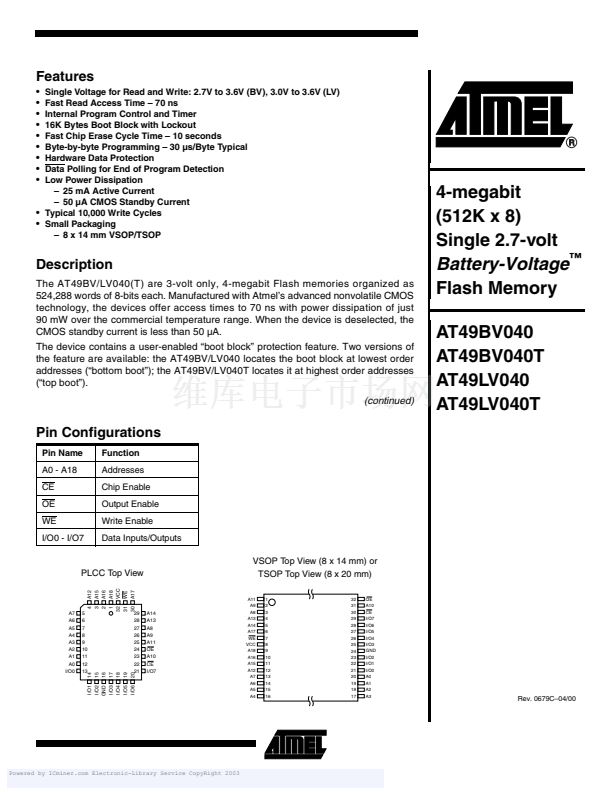

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Single Voltage for Read and Write: 2.7V to 3.6V (BV), 3.0V to 3.6V (LV)
Fast Read Access Time 鈥?70 ns
Internal Program Control and Timer
16K Bytes Boot Block with Lockout
Fast Chip Erase Cycle Time 鈥?10 seconds
Byte-by-byte Programming 鈥?30 碌s/Byte Typical
Hardware Data Protection

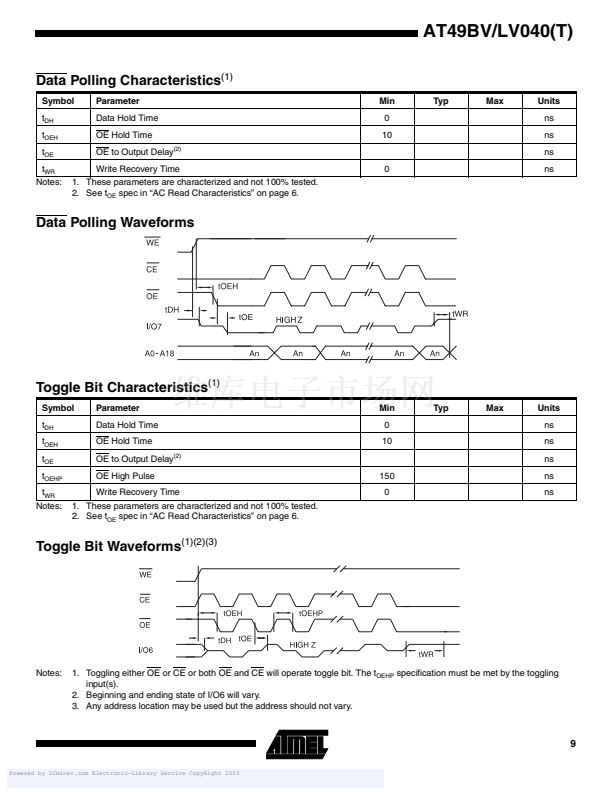

Data Polling for End of Program Detection
Low Power Dissipation
鈥?25 mA Active Current
鈥?50 碌A(chǔ) CMOS Standby Current
鈥?/div>
Typical 10,000 Write Cycles
鈥?/div>
Small Packaging
鈥?8 x 14 mm VSOP/TSOP
Description
The AT49BV/LV040(T) are 3-volt only, 4-megabit Flash memories organized as
524,288 words of 8-bits each. Manufactured with Atmel鈥檚 advanced nonvolatile CMOS
technology, the devices offer access times to 70 ns with power dissipation of just
90 mW over the commercial temperature range. When the device is deselected, the
CMOS standby current is less than 50 碌A(chǔ).
The device contains a user-enabled 鈥渂oot block鈥?protection feature. Two versions of
the feature are available: the AT49BV/LV040 locates the boot block at lowest order
addresses (鈥渂ottom boot鈥?; the AT49BV/LV040T locates it at highest order addresses
(鈥渢op boot鈥?.
(continued)
4-megabit
(512K x 8)
Single 2.7-volt
Battery-Voltage
鈩?/div>
Flash Memory
AT49BV040
AT49BV040T
AT49LV040
AT49LV040T
Pin Configurations
Pin Name
A0 - A18
CE
OE
WE
I/O0 - I/O7
Function
Addresses
Chip Enable
Output Enable
Write Enable
Data Inputs/Outputs
VSOP Top View (8 x 14 mm) or
TSOP Top View (8 x 20 mm)
A11
A9
A8
A13
A14
A17
WE
VCC
A18
A16
A15
A12
A7
A6
A5
A4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
OE
A10
CE
I/O7
I/O6
I/O5
I/O4
I/O3
GND
I/O2
I/O1
I/O0
A0
A1
A2
A3
PLCC Top View
A12
A15
A16
A18
VCC
WE
A17
I/O1
I/O2
GND
I/O3
I/O4
I/O5
I/O6
14
15
16
17
18
19
20
A7
A6
A5
A4
A3
A2
A1
A0
I/O0
5
6
7
8
9
10
11
12
13
4
3
2
1
32
31
30
29
28
27
26
25
24
23
22
21
A14
A13
A8
A9
A11
OE
A10
CE
I/O7
Rev. 0679C鈥?4/00
1
