Description
The AT49BV/LV4096A is a 3-volt, 4-megabit Flash memory organized as 524,288
words of 8 bits each or 256K words of 16 bits each. Manufactured with Atmel鈥檚
advanced nonvolatile CMOS technology, the device offers access times to 70 ns with
power dissipation of just 67 mV at 2.7V read. When deselected, the CMOS standby
current is less than 50 碌A(chǔ).
Th e device co nt ain s a us e r-e n a ble d 鈥?bo o t blo ck 鈥?pr ot ec tio n fe a tu re. Th e
AT49BV/LV4096A locates the boot block at lowest order addresses (鈥渂ottom boot鈥?.
To allow for simple in-system reprogrammability, the AT49BV/LV4096A does not
require high input voltages for programming. Reading data out of the device is similar
to reading from an EPROM; it has standard CE, OE and WE inputs to avoid bus con-
tention. Reprogramming the AT49BV/LV4096A is performed by first erasing a block of
data and then programming on a byte-by-byte or word-by-word basis.
4-megabit
(512K x 8/
256K x 16)
Single 2.7-volt
Battery-Voltage
鈩?/div>
Flash Memory
AT49BV4096A
AT49LV4096A

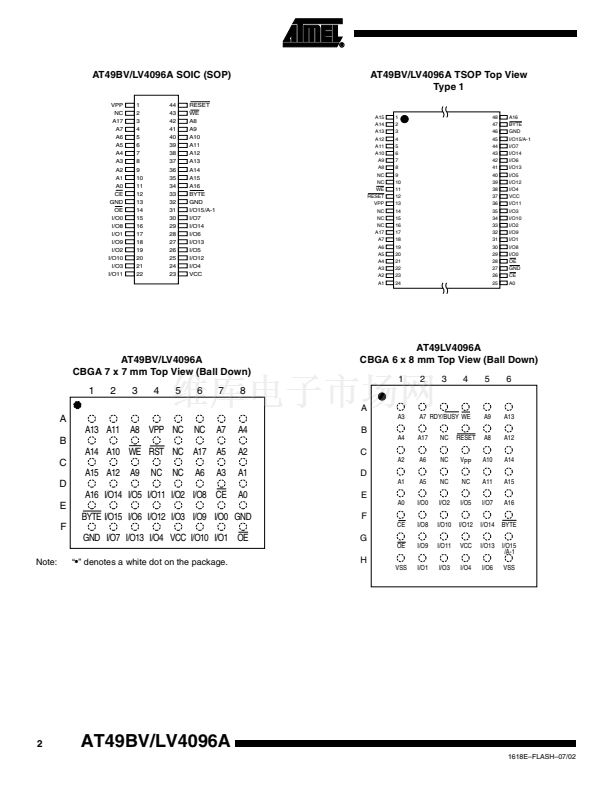

Pin Configurations
Pin Name
A0 - A17
CE
OE
WE
RESET
VPP
I/O0 - I/O15
I/O15(A-1)
BYTE
NC
Function
Addresses
Chip Enable
Output Enable
Write Enable
Reset
VPP can be left unconnected or connected to VCC, GND, 5V or
12V. The input has no effect on the operation of the device.
Data Inputs/Outputs
I/O15 (Data Input/Output, Word Mode)
A-1 (LSB Address Input, Byte Mode)
Selects Byte or Word Mode
No Connect
