AT45DCB008 Datasheet

  • AT45DCB008

  • 8-megabyte 4-megabyte, and 2-megabyte 2.7-volt Only DataFlas...

  • ATMEL   ATMEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

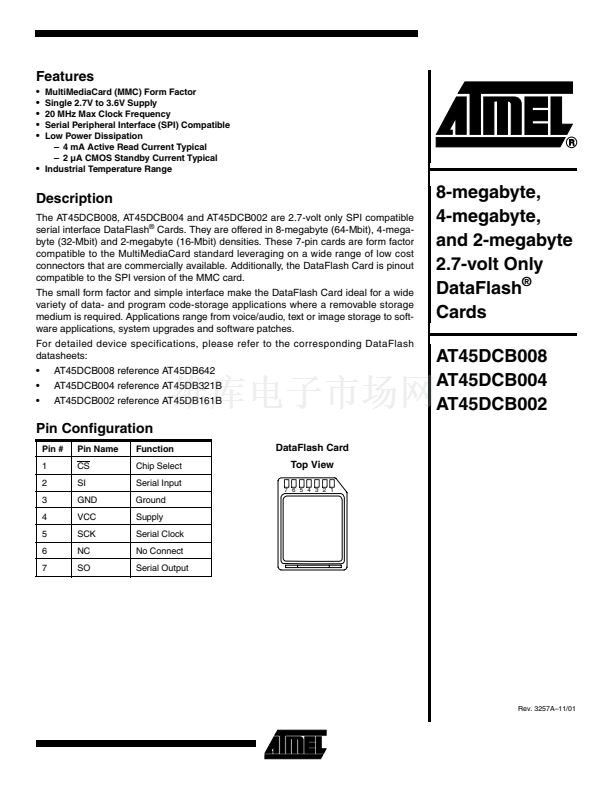

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
MultiMediaCard (MMC) Form Factor
Single 2.7V to 3.6V Supply
20 MHz Max Clock Frequency
Serial Peripheral Interface (SPI) Compatible
Low Power Dissipation
鈥?4 mA Active Read Current Typical
鈥?2 碌A(chǔ) CMOS Standby Current Typical
鈥?/div>
Industrial Temperature Range
Description
The AT45DCB008, AT45DCB004 and AT45DCB002 are 2.7-volt only SPI compatible
serial interface DataFlash
廬
Cards. They are offered in 8-megabyte (64-Mbit), 4-mega-
byte (32-Mbit) and 2-megabyte (16-Mbit) densities. These 7-pin cards are form factor
compatible to the MultiMediaCard standard leveraging on a wide range of low cost
connectors that are commercially available. Additionally, the DataFlash Card is pinout
compatible to the SPI version of the MMC card.
The small form factor and simple interface make the DataFlash Card ideal for a wide
variety of data- and program code-storage applications where a removable storage
medium is required. Applications range from voice/audio, text or image storage to soft-
ware applications, system upgrades and software patches.
For detailed device specifications, please refer to the corresponding DataFlash
datasheets:
鈥?/div>
鈥?/div>
鈥?/div>
AT45DCB008 reference AT45DB642
AT45DCB004 reference AT45DB321B
AT45DCB002 reference AT45DB161B
8-megabyte,
4-megabyte,
and 2-megabyte
2.7-volt Only
DataFlash
廬
Cards
AT45DCB008
AT45DCB004
AT45DCB002
Pin Configuration
Pin #
1
2
3
4
5
6
7
Pin Name
CS
SI
GND
VCC
SCK
NC
SO
Function
Chip Select
Serial Input
7 6 5 4 3 2 1
DataFlash Card
Top View
Ground
Supply
Serial Clock
No Connect
Serial Output
Rev. 3257A鈥?1/01
1
