Attenuation: 0.5 dB Steps to 31.5 dB

Temperature Stability: 鹵0.18 dB from 鈥?0潞C to +85潞C Typ.

Low DC Power Consumption

Surface Mount Package

Integral TTL Driver

High Intercept Point

Low Cost/High Performance

1

CR-13

Description

M/A-COM's AT20-0107 is a GaAs FET 6-bit digital attenuator with

a 0.5 dB minimum step size and a 31.5 dB total attenuation. This at-

tenuator and integral TTL driver is in a ceramic 24-lead surface

mount package. The AT20-0107 is ideally suited for use where

accuracy, fast speed, very low power consumption and low inter-

modulation products are required. Typical applications include dy-

namic range setting in precision receiver circuits and other gain/

leveling control circuits. Available with enhanced performance as

fully hermetic version. Environmentally screenable as P/N AT-107.

Ordering Information

Part Number

AT20-0107

AT20-0107-TR

AT20-0107-TB

Package

Bulk Packaging

Tape and Reel

2

Unit mounted on a test board

2. Check with the factory for available quantities and reel size.

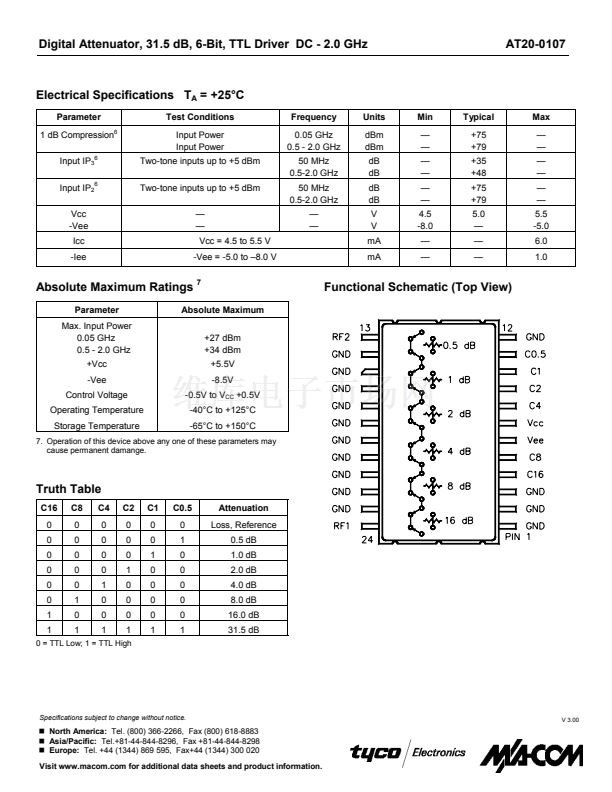

Electrical Specifications

3

T

A

= +25擄C

Parameter

Insertion Loss

Test Conditions

鈥?/div>

Any Bit or Combination of Bits

Full Range

Frequency

DC - 0.5 GHz

DC - 1.0 GHz

DC - 2.0 GHz

Units

dB

Ratio

nS

Min

鈥?/div>

Typical

2.5

2.9

3.2

鈥?/div>

50

150

Max

3.0

3.4

3.8

+(.3 +7% of atten.)

-(.2 +1% of atten.)

1.8:1

鈥?/div>

Attenuation Accuracy

4,5

VSWR

Trise, Tfall

Ton, Toff

1.

3.

10% to 90%

50% Control to 90%/10% RF

Above reference insertion loss.

All specifications apply when operated with bias voltages of +5V

for V

CC

and 鈥?.0 V to 鈥?.0 V for V

EE

and 50鈩?impedance at all

ports unless otherwise stated.

4. This attenuator is guaranteed monotonic.

5. For the attenuator to meet the guaranteed specifications, it is nec-

essary to have a DC return on either RF1 or RF2. The DC return

can be either a 10K鈩?resistor, or an RF choke.

6. V

EE

= -5 V for the typical numbers given.

Specifications subject to change without notice.

V 3.00

North America:

Tel. (800) 366-2266, Fax (800) 618-8883

Asia/Pacific:

Tel.+81-44-844-8296, Fax +81-44-844-8298

Europe:

Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

Visit www.macom.com for additional data sheets and product information.
