Input IP3: +31 dBm Min (Full Attenuation Range)
Input IP3 is
15 -20 dB
Better than GaAs
Linear Operation: +20 dBm Min.
Plastic SOIC, Wide Body, SMT Package
35 dB Dynamic Range (With 30 mA Bias Current)
Single Control Voltage
50 ohm Impedance
Linear Driver, DR65-0002, Available
Test Boards are Available
Tape and Reel Packaging Available
SOW-16
Description

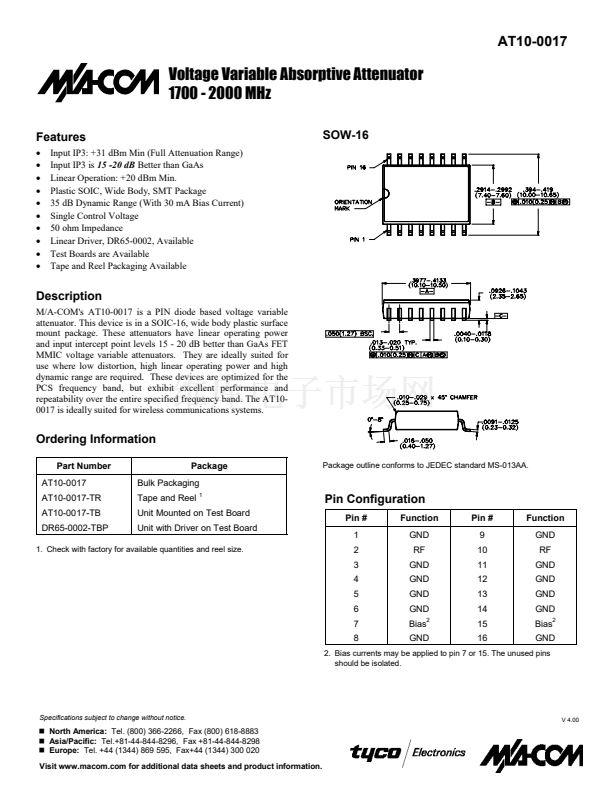

M/A-COM's AT10-0017 is a PIN diode based voltage variable
attenuator. This device is in a SOIC-16, wide body plastic surface
mount package. These attenuators have linear operating power
and input intercept point levels 15 - 20 dB better than GaAs FET
MMIC voltage variable attenuators. They are ideally suited for
use where low distortion, high linear operating power and high
dynamic range are required. These devices are optimized for the
PCS frequency band, but exhibit excellent performance and
repeatability over the entire specified frequency band. The AT10-
0017 is ideally suited for wireless communications systems.
Ordering Information
Part Number
AT10-0017
AT10-0017-TR
AT10-0017-TB
DR65-0002-TBP
Package
Bulk Packaging
Tape and Reel
1
Unit Mounted on Test Board
Unit with Driver on Test Board
Package outline conforms to JEDEC standard MS-013AA.
Pin Configuration
Pin #
1
2
3
4
5
6
7
8
Function
GND
RF
GND
GND
GND
GND
Bias
2
GND
Pin #
9
10
11
12
13
14
15
16
Function
GND
RF
GND
GND
GND
GND
Bias
2
GND
1. Check with factory for available quantities and reel size.
2. Bias currents may be applied to pin 7 or 15. The unused pins
should be isolated.
Specifications subject to change without notice.
V 4.00
