M
ICROCONTROLLERS
STK501 E
XPANSION
B
OARD

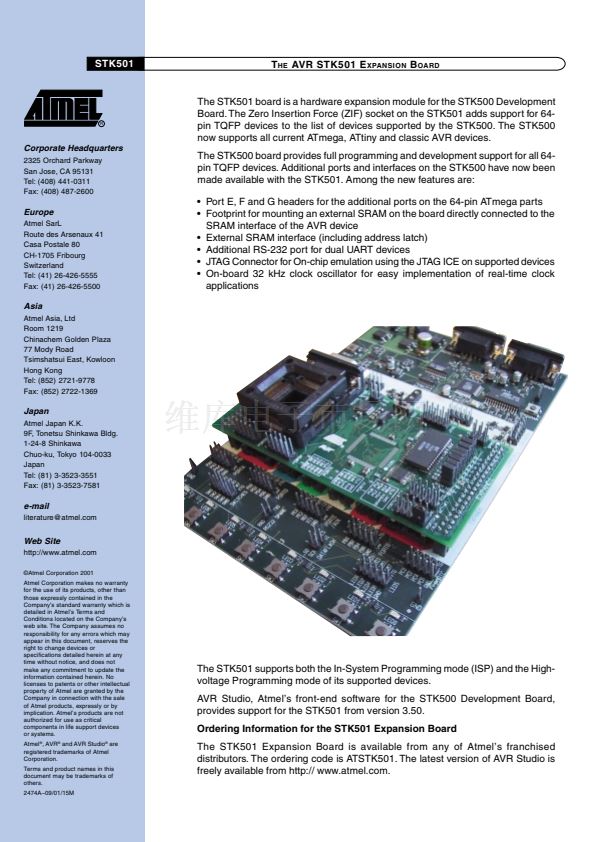

The STK501 board is an expansion module designed to add 64-pin support
to the Atmel STK500 Development Board. The STK500 and STK501 expansion
module extends support to all current AVR devices.
The STK501 includes connectors, jumpers and hardware allowing full support
for the new features on the 64-pin devices. The Zero Insertion Force (ZIF)
socket allows easy use of TQFP packages. In addition to providing support
for new devices, the STK501 also adds support for peripherals previously
not supported by the STK500. An additional RS-232 driver and an SRAM
interface are among the new features. Devices with dual UART or XRAM
interface can thus take advantage of the new resources on the STK501 board.
The STKcontaines the following features:
鈥?AVR Studio
廬
Software Interface
鈥?STK500 Compatible
鈥?Supports 64-pin ATmega Devices
鈥?Supports ISP and High-voltage
Programming
鈥?Zero Insertion Force Socket for
TQFP Packages
鈥?TQFP Footprint for Emulator
Adapters
鈥?JTAG Connector for On-chip
Debugging Using the JTAG ICE
鈥?Additional RS-232 Driver and
Connector
鈥?Adds XRAM support to the STK500
board for Devices with XRAM
Interface
鈥?On-board 32 kHz Clock Oscillator for
Easy RTC Implementations
