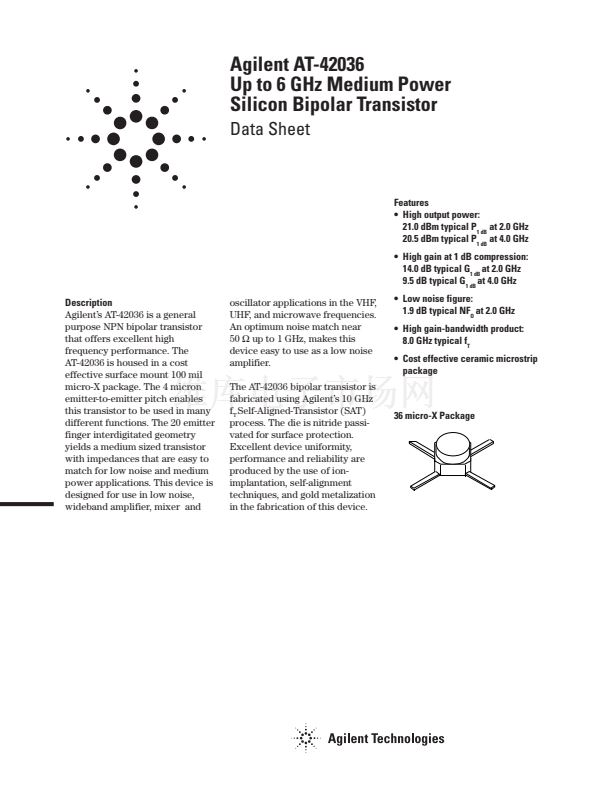

Agilent AT-42036

Up to 6 GHz Medium Power

Silicon Bipolar Transistor

Data Sheet

Features

鈥?High output power:

21.0 dBm typical P

1 dB

at 2.0 GHz

20.5 dBm typical P

1 dB

at 4.0 GHz

鈥?High gain at 1 dB compression:

14.0 dB typical G

1 dB

at 2.0 GHz

9.5 dB typical G

1 dB

at 4.0 GHz

Description

Agilent鈥檚 AT-42036 is a general

purpose NPN bipolar transistor

that offers excellent high

frequency performance. The

AT-42036 is housed in a cost

effective surface mount 100 mil

micro-X package. The 4 micron

emitter-to-emitter pitch enables

this transistor to be used in many

different functions. The 20 emitter

finger interdigitated geometry

yields a medium sized transistor

with impedances that are easy to

match for low noise and medium

power applications. This device is

designed for use in low noise,

wideband amplifier, mixer and

oscillator applications in the VHF,

UHF, and microwave frequencies.

An optimum noise match near

鈩?/div>

up to 1 GHz, makes this

device easy to use as a low noise

amplifier.

The AT-42036 bipolar transistor is

fabricated using Agilent鈥檚 10 GHz

Self-Aligned-Transistor (SAT)

process. The die is nitride passi-

vated for surface protection.

Excellent device uniformity,

performance and reliability are

produced by the use of ion-

implantation, self-alignment

techniques, and gold metalization

in the fabrication of this device.

鈥?Low noise figure:

1.9 dB typical NF

at 2.0 GHz

鈥?High gain-bandwidth product:

8.0 GHz typical f

鈥?Cost effective ceramic microstrip

package

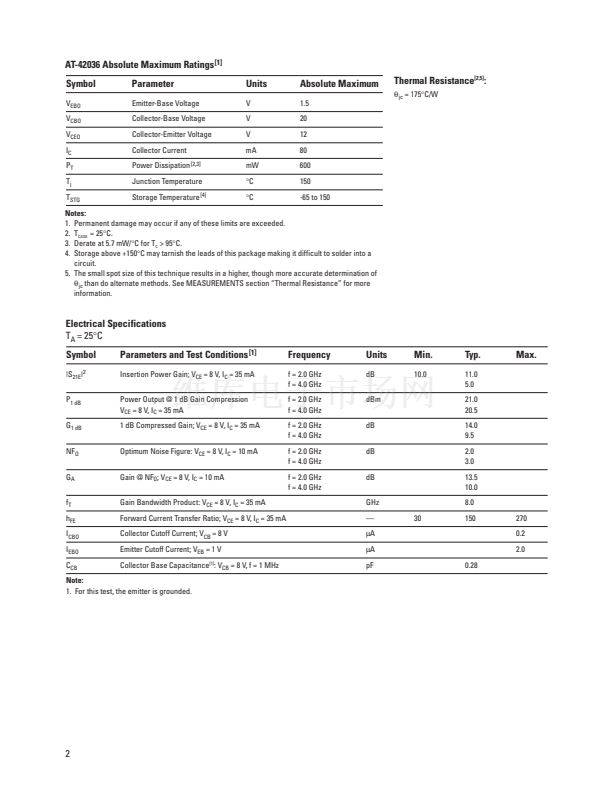

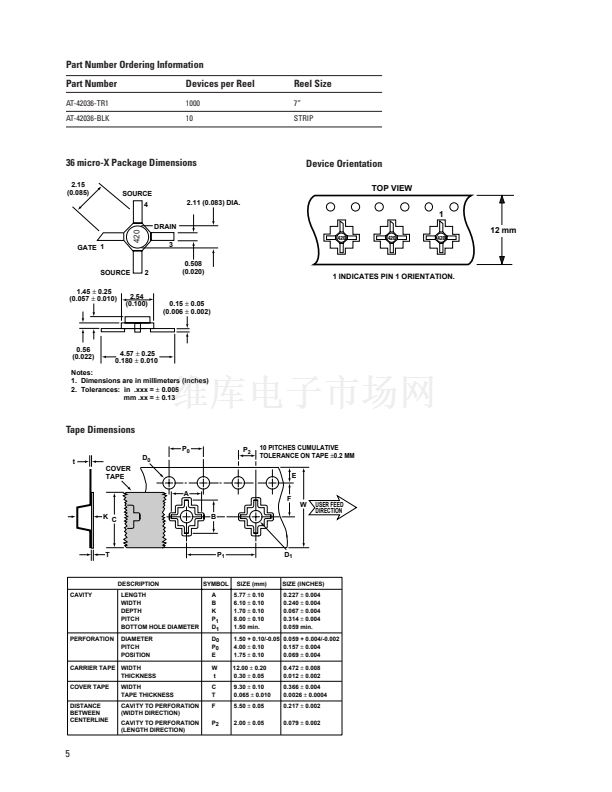

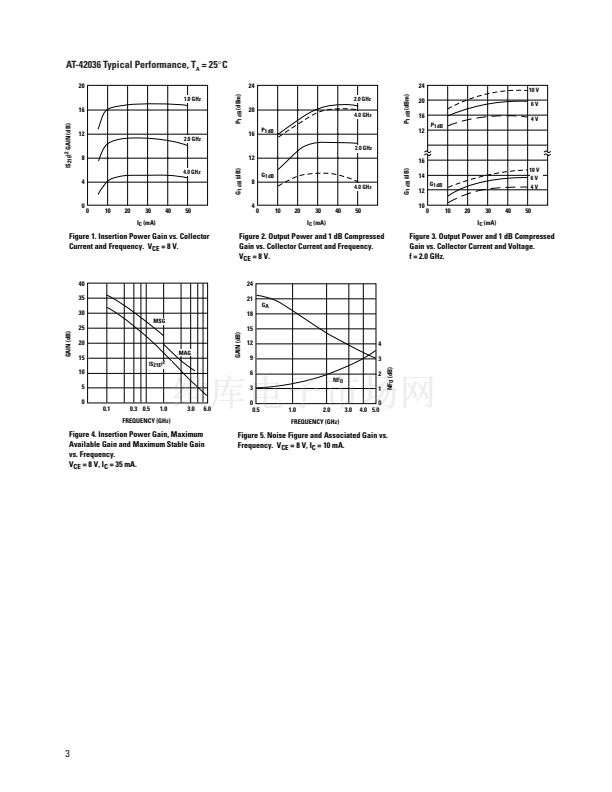

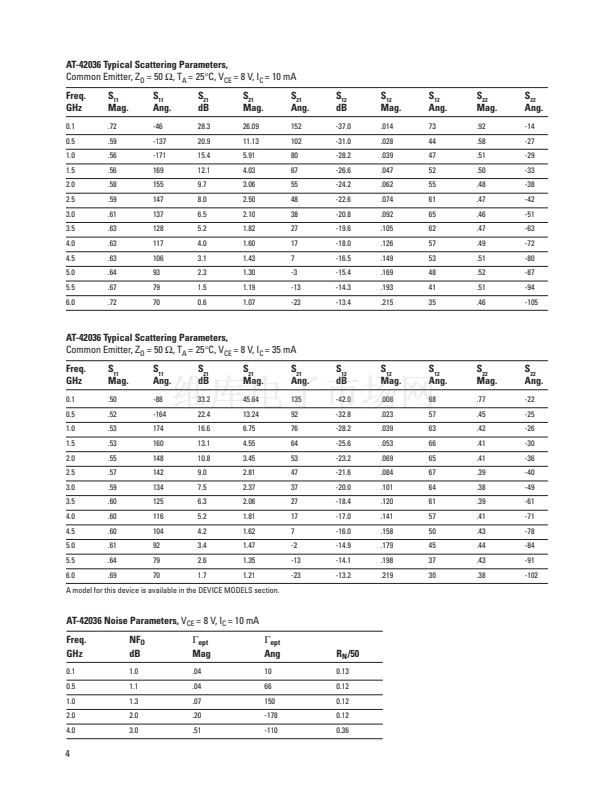

36 micro-X Package
