Printers
Single board computers

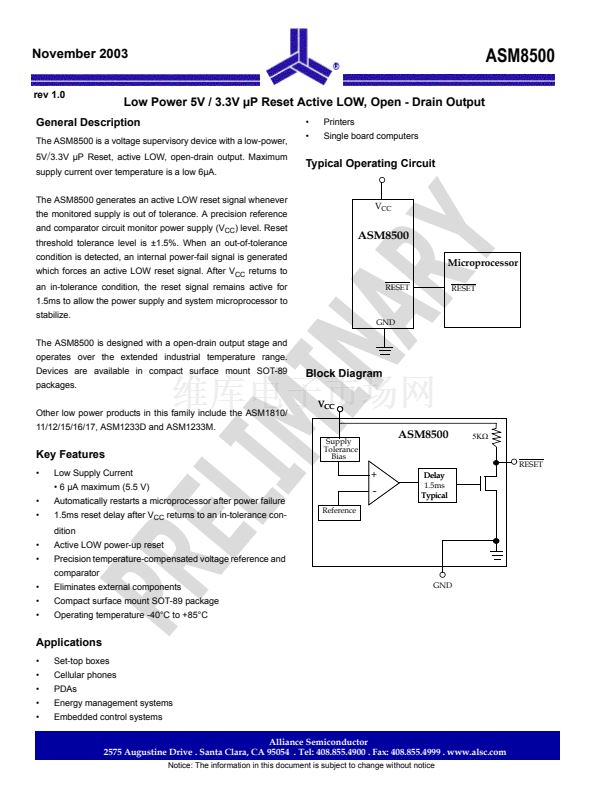

General Description
The ASM8500 is a voltage supervisory device with a low-power,
5V
/
3.3V 碌P Reset, active LOW, open-drain output. Maximum
supply current over temperature is a low 6碌A.
The ASM8500 generates an active LOW reset signal whenever
the monitored supply is out of tolerance. A precision reference
and comparator circuit monitor power supply (V
CC
) level. Reset
threshold tolerance level is 鹵1.5%. When an out-of-tolerance
condition is detected, an internal power-fail signal is generated
which forces an active LOW reset signal. After V
CC
returns to
an in-tolerance condition, the reset signal remains active for
1.5ms to allow the power supply and system microprocessor to
stabilize.
The ASM8500 is designed with a open-drain output stage and
operates over the extended industrial temperature range.
Devices are available in compact surface mount SOT-89
packages.

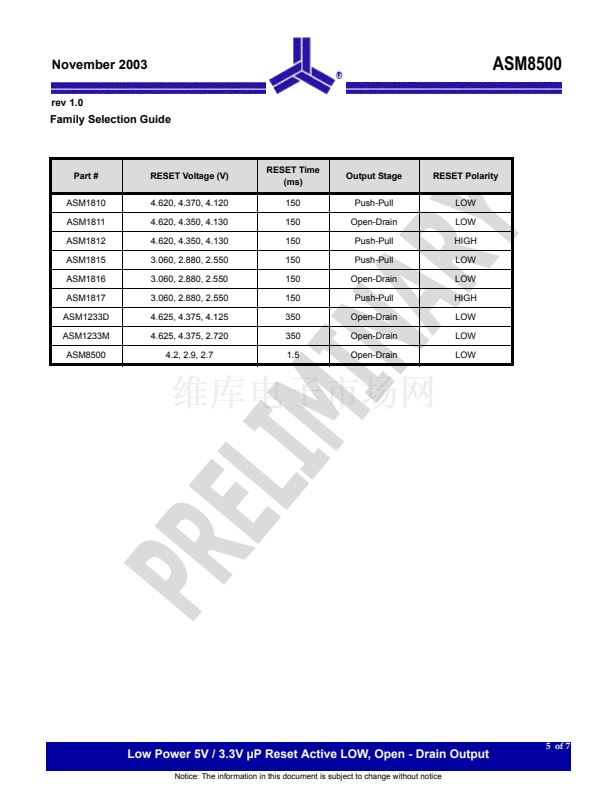

Other low power products in this family include the ASM1810/
11/12/15/16/17, ASM1233D and ASM1233M.
Typical Operating Circuit
V
CC
ASM8500
Microprocessor
RESET
RESET
GND
Block Diagram
V
CC
Key Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Supply Current
鈥?6 碌A maximum (5.5 V)
Automatically restarts a microprocessor after power failure
1.5ms reset delay after V
CC
returns to an in-tolerance con-
dition
Active LOW power-up reset
Precision temperature-compensated voltage reference and
comparator
Eliminates external components
Compact surface mount SOT-89 package
Operating temperature -40擄C to +85擄C
Supply
Tolerance
Bias
ASM8500
5螝鈩?/div>
RESET
+
-
Reference
Delay
1.5ms
Typical
GND
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Set-top boxes
Cellular phones
PDAs
Energy management systems
Embedded control systems
Alliance Semiconductor
2575 Augustine Drive . Santa Clara, CA 95054 . Tel: 408.855.4900 . Fax: 408.855.4999 . www.alsc.com
Notice: The information in this document is subject to change without notice
