ASM2I99447 Datasheet

  • ASM2I99447

  • 3.3V/2.5V 1:9 LVCMOS Clock Fanout Buffer

  • 564.00KB

  • 14頁

  • ALSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

May 2005
rev 0.3
3.3V/2.5V 1:9 LVCMOS Clock Fanout Buffer
Features
9 LVCMOS Compatible Clock Outputs
2 Selectable, LVCMOS Compatible Inputs
Maximum Clock Frequency of 350 MHz
Maximum Clock Skew of 150 pS
Synchronous Output Stop in Logic Low State
Eliminates Output Runt Pulses
High鈥揑mpedance Output Control
3.3V or 2.5V Power Supply
Drives up to 18 Series Terminated Clock Lines
Ambient Temperature Range 鈥?0擄C to +85擄C

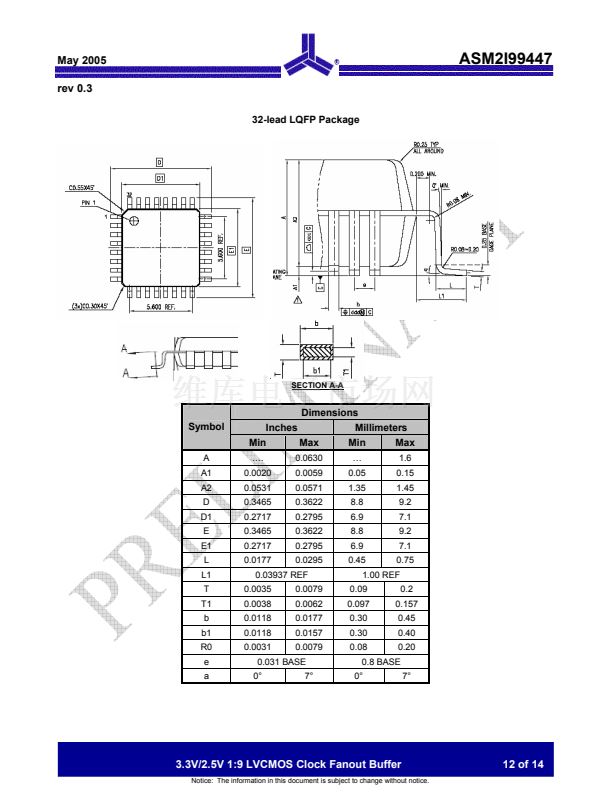

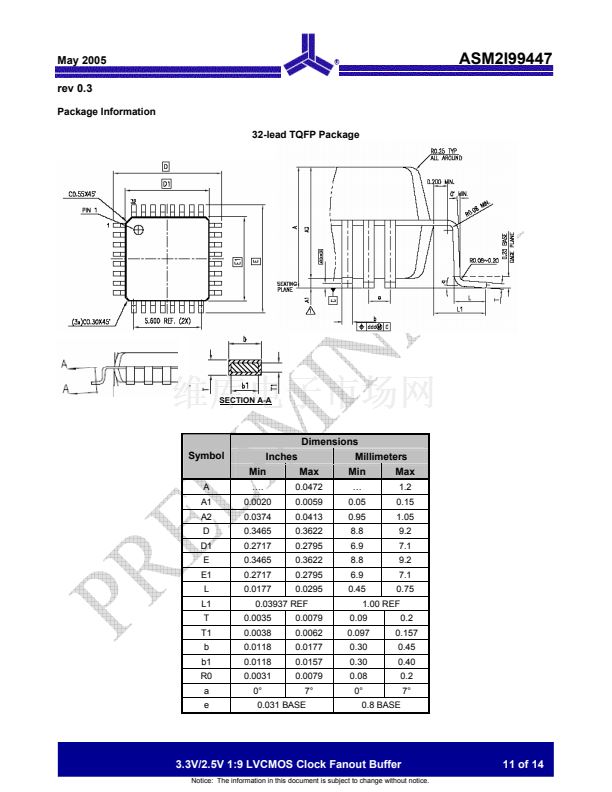

32 Lead LQFP and TQFP Packaging
Supports
Clock
Distribution
in
Networking,
ASM2I99447
ASM2I99447 is specifically designed to distribute LVCMOS
compatible clock signals up to a frequency of 350 MHz.
Each output provides a precise copy of the input signal with
a near zero skew. The outputs buffers support driving of
50鈩?terminated transmission lines on the incident edge:
each is capable of driving either one parallel terminated or
two series terminated transmission lines.
Two selectable independent LVCMOS compatible clock
inputs are available, providing support of redundant clock
source systems. The ASM2I99447 CLK_STOP control is
synchronous to the falling edge of the input clock. It allows
the start and stop of the output clock signal only in a logic
low state, thus eliminating potential output runt pulses.
Applying the OE control will force the outputs into high
impedance mode.
All inputs have an internal pull鈥搖p or pull鈥揹own resistor
preventing unused and open inputs from floating. The
device supports a 2.5V or 3.3V power supply and an
ambient temperature range of 鈥?0擄C to +85擄C. The
Telecommunications and Computer Applications
Pin and Function Compatible to MPC947 and
MPC9447
Functional Description
The ASM2I99447 is a 3.3V or 2.5V compatible, 1:9 clock
fanout buffer targeted for high performance clock tree
applications. With output frequencies up to 350 MHz and
output skews less than 150 pS, the device meets the needs
of most demanding clock applications.
ASM2I99447
is
pin
and
function
compatible
but
performance enhanced to the MPC947 and MPC9447.

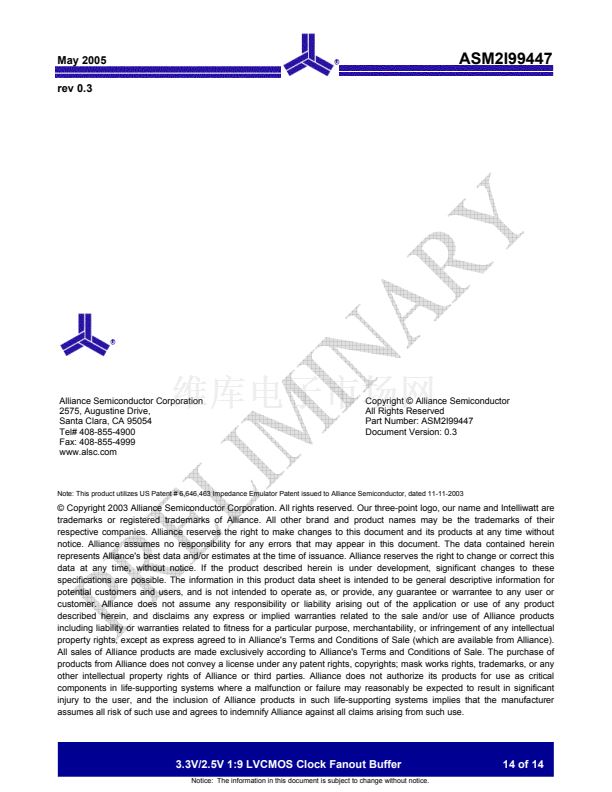

Alliance Semiconductor
2575, Augustine Drive
鈥?/div>
Santa Clara, CA
鈥?/div>
Tel: 408.855.4900
鈥?/div>
Fax: 408.855.4999
鈥?/div>
www.alsc.com
Notice: The information in this document is subject to change without notice.
