SRAM

Austin Semiconductor, Inc.

128K x 8 SRAM

High-Speed CMOS SRAM with

3.3V Revolutionary Pinout

FEATURES

鈥?High-speed access times of 10, 12, 15 and 20 ns

鈥?High-performance, low-power CMOS process

鈥?Multiple center power and ground pins for greater noise

immunity

鈥?Easy memory expansion with CE\ and OE\ options

鈥?CE\ power-down

鈥?Fully static operation: no clock or refresh required

鈥?TTL compatible inputs and outputs

鈥?Single 3.3V power supply

AS5LC1008

PIN ASSIGNMENT

(Top View)

32-Pin, 400-mil

Plastic SOJ (DJ) & Ceramic SOJ (DCJ)

OPTIONS

鈥?Timing

10ns access

12ns access

15ns access

20ns access

鈥?Package

Plastic SOJ (32-pin, 400-mil)

*Ceramic SOJ (32-pin, 400-mil)

鈥?Operating Temperature Ranges

-Military (-55

o

C to +125

o

C)

-Industrial (-40

o

C to +85

o

C)

MARKING

-10

-12

-15

-20

A0

A1

A2

A3

CE\

I/O 0

I/O 1

Vcc

GND

I/O 2

I/O 3

WE\

A4

A5

A6

A7

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

A16

A15

A14

A13

OE\

I/O 7

I/O 6

GND

Vcc

I/O 5

I/O 4

A12

A11

A10

A9

A8

DJ

DCJ

No. 906

No. 501

PIN FUNCTIONS

XT

IT

*Consult Factory, Possible Future Offering

GENERAL DESCRIPTION

The ASI AS5LC1008 is a very high-speed, low power,

131,072-word by 8-bit CMOS static RAM in revolutionary

pinout. The AS5LC1008 is fabricated using high-performance

CMOS technology. This highly reliable process coupled with

innovative circuit design techniques, yields higher performance

and low power consumption devices.

When CE\ is HIGH (deselected), the device assumes a

standby mode at which the power dissipation can be reduced

down to 250碌W (typical) with CMOS input levels.

The AS5LC1008 operates from a single 3.3V power supply

and all inputs are TTL-compatible.

PIN

A0 - A16

CE\

OE\

WE\

I/O0 - I/O7

V

CC

GND

DESCRIPTION

Address Inputs

Chip Enable Input

Output Enable Input

Write Enable Input

Bidirectional Ports

Power

Ground

For more products and information

please visit our web site at

www.austinsemiconductor.com

AS5LC1008

Rev. 1.0 11/02

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

1

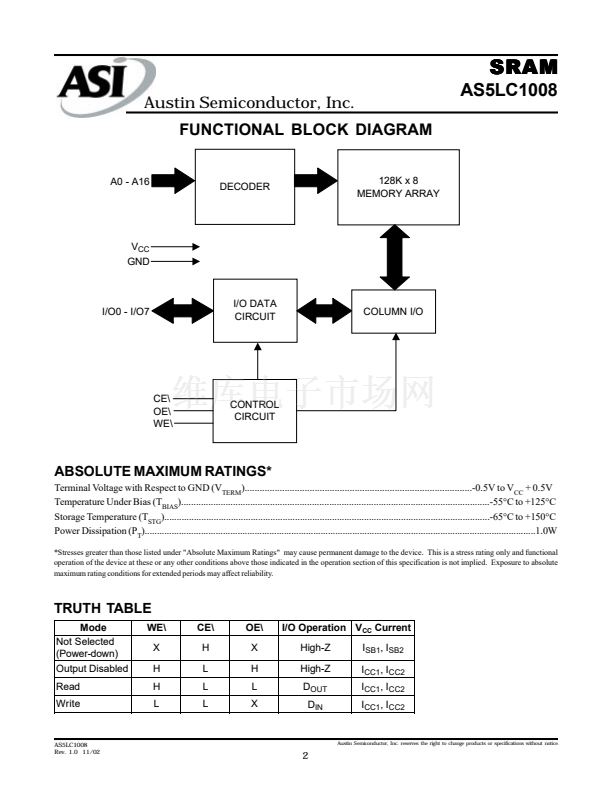

next

AS5LC1008相關型號PDF文件下載

• 型號
  版本
  描述
  廠商
  下載
