ARA05050S12CTR Datasheet

  • ARA05050S12CTR

  • Analog Miscellaneous

  • 16頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ARA05050
Reverse Amplifier with Step Attenuator
FEATURES
路
路
路
路
路
路
路
路
路
路
路
路
Data Sheet - Rev 2.0
Low cost integrated monolothic GaAs amplifier
with step attenuator
Attenuation Range: 0-30 dB, adjustable in
2dB increments via a 4 wire parallel control
Meets DOCSIS distortion requirements at
+58dBmV output signal level
Low distortion and low noise
Low signal to noise ratio at all gain levels
Frequency range: 5-100MHz
5 Volt operation
MCNS/DOCSIS Compliant Cable Modems
CATV Interactive Set-Top Box
OpenCable Set-Top Box
Fiber Nodes
Cable Modem Termination Systems (CMTS)
APPLICATIONS
S12 Package
28 Pin SSOP with Heat Slug
PRODUCT DESCRIPTION
The ARA05050 is a GaAs IC designed to provide the
reverse path amplification and output level control
functions in a CATV Set-Top Box or Cable Modem. It
incorporates a digitally controlled precision step
attenuator that is preceded by an ultra low noise
amplifier stage, and followed by an ultra-linear output
driver amplifier. This device is capable of meeting
the MCNS/DOCSIS requirements for harmonic
performance at a +58dBmV output level while
requiring only a single polarity +5V supply. Both the
input and the output are single-ended and matched
to 75 Ohms. The precision attenuator provides up to
30 dB of attenuation in 2 dB increments. The
ARA05050 is offered in a 28-pin SSOP package
featuring a heat slug on the bottom of the package.
4
Attenuation Control
Switch
ARA05050
LPF
Balun
Upstream
QPSK/16QAM
Modulator
Clock
Data
RAM
ROM
5-42 MHz
Transmit Enable/Disable
MAC
Clock
44 MHz
Data
Microcontroller
with Ethernet
MAC
Diplexer
54-860 MHz
Double-
Conversion
Tuner
SAW
Filter
QAM Receiver
with FEC
10Base-T
Transceiver
RJ45
Connector
Figure 1. Cable Modem or Set Top Box Application Diagram

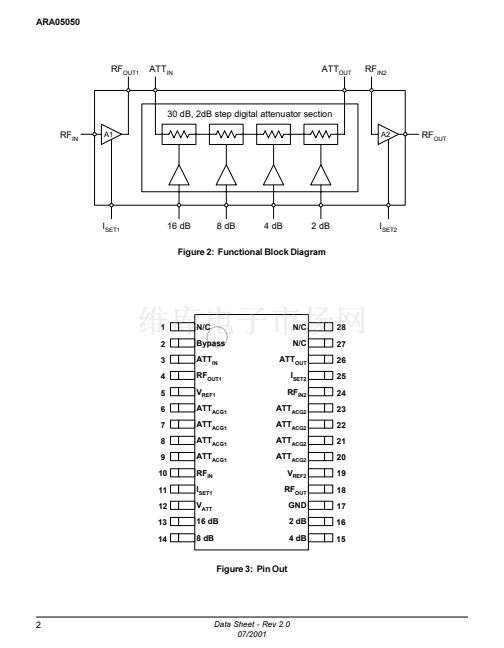

07/2001
