Motorola Cellular DSP Does It All
DSP56690 Integrates M-Core MPU, Supports Multiple Wireless Standards
Freescale Semiconductor, Inc...
by Tom R. Halfhill
Jet-setters who want to stay in touch won鈥檛 have to keep
packing more cell phones than shoes much longer. Motorola鈥檚
new DSP56690 is a highly integrated embedded processor
that supports all of the most common wireless standards
likely to be encountered on a globe-hopping journey.
For the 鏗乺st time, a single chip handles analog cellular as
well as a plethora of digital standards: code-division multiple
access (CDMA), time-division multiple access (TDMA),
global system for mobile communications (GSM), integrated
digital enhanced network (iDEN), general packet radio ser-
vice (GPRS), and even the Iridium satellite network. That
covers all of the 鏗乺st-, second-, and so-called 2.5-generation
wireless-telephony standards worldwide.
But despite the initial excitement over the dream of a
universal wireless phone鈥擬otorola鈥檚 announcement re-
ceived widespread press coverage and the company鈥檚 stock
jumped 5% in one day鈥攅ven Motorola doubts there鈥檚 a
large enough market for such a product. The extra memory
required to store the software for every standard would
in鏗俛te the phone鈥檚 cost, and relatively few people are obses-
sively connected globetrotters. Instead, Motorola sees the
DSP56690 as a malleable platform for a multitude of future
cell phones. Motorola can tailor the processor for a single
standard or any combination of standards by adding or
removing on-chip peripherals.
The first DSP56690-based phone from Motorola鈥檚
wireless-products group will likely be a GSM-only device
when it debuts in 2H00. Later, Motorola may introduce a
GSM/TDMA or GSM/CDMA combo model, which would
still cover a lot of bases in Europe and the U.S. But Motorola
will probably leave it to another vendor to use the DSP56690
as the Rosetta stone of wireless telephony.
In terms of both integration and performance, it goes well
beyond two related cellular-baseband chips from Motorola,
the DSP56651 and the DSP56652.
The new chip鈥檚 DSP core runs at a clock frequency of
104 MHz, while the microcontroller core runs at 52 MHz.
The core voltage can range from 1.8 to 2.7 V (2.2 V is nomi-
nal), and the I/O voltage can range from 1.8 V to 3.3 V. Moto-
rola will manufacture the initial chips in its 0.25-micron
CDR-3 process and migrate to the 0.18-micron HiPerMOS-6
(see MPR 9/14/98, p. 1) process later next year.
X-Data ROM
Y-Data ROM
Interrupt
Control
Real-Time
Reference
Interrupt
Timer
Smartcard
Interface
UARTs
(2)
Serial
Peripheral
Interface
Clock
Control
One-Wire
Interface
IC ID
Module
Watchdog
Timer
Clock
Monitor
Clock
Amplifier
Keypad
Port
Program RAM
252K
Program ROM
6K
DSP
Timer
Layer 1
Encryption
Module
Viterbi
Accelerator
Baseband
Port I/F
DSP56600
Core
Dedicated PLL
X-Data RAM
56K
Shared With MCU
Y-Data RAM
52K
DMA-1
DMA-2
AMPS
Accelerator
MCU-DSP
Interface
Layer 1
Timer
Deep-Sleep
Module
Serial Audio
Codec Port
DSP Debug
Data/Speech
Controller
Bus Interface
GPIO
GPRS
Encryption
RAM
92K
ROM
1K
Test-Control
Module
USB
Controller
Dedicated
PLL
Memory
Interface
16-Bit DRAM / Flash
M-Core 210
MCU
Dedicated PLL
A Dual-Core Processor

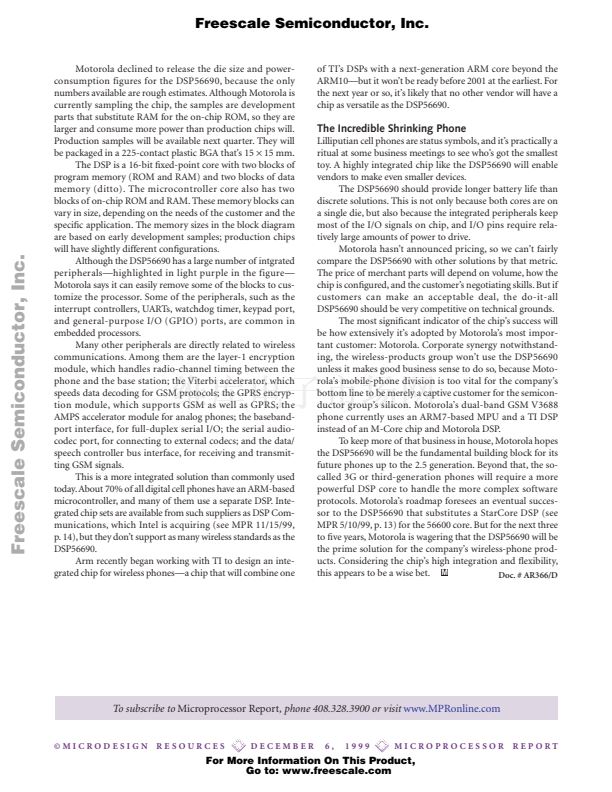

As Figure 1 shows, the DSP56690 integrates a Motorola
56600 DSP core with an M-Core 210 microcontroller, on-
chip memory for both cores, and a vast array of peripherals.
Figure 1.
Light-purple blocks show the DSP56690鈥檚 on-chip
peripherals, some of which can be removed to customize the chip.
