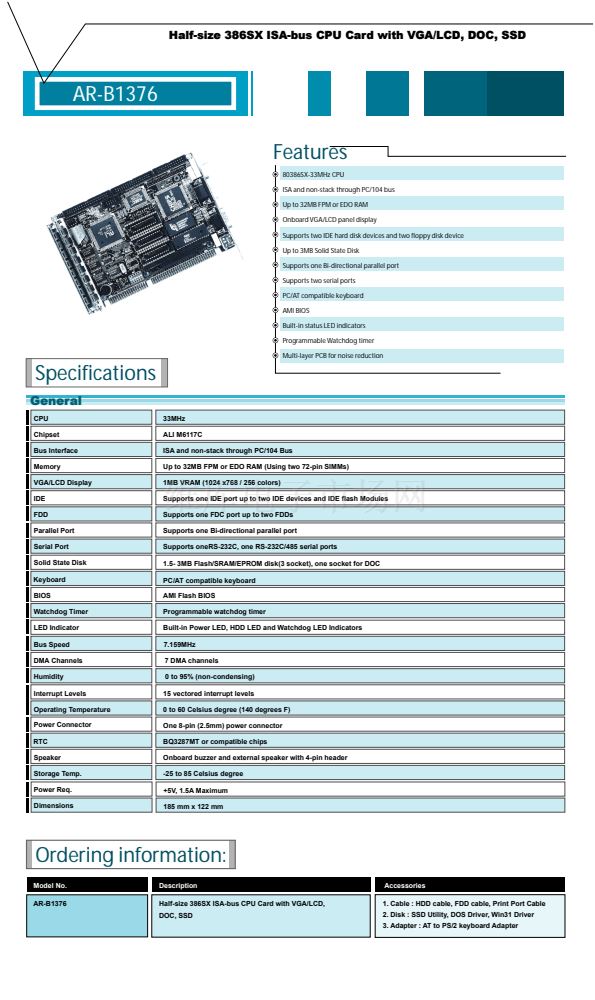

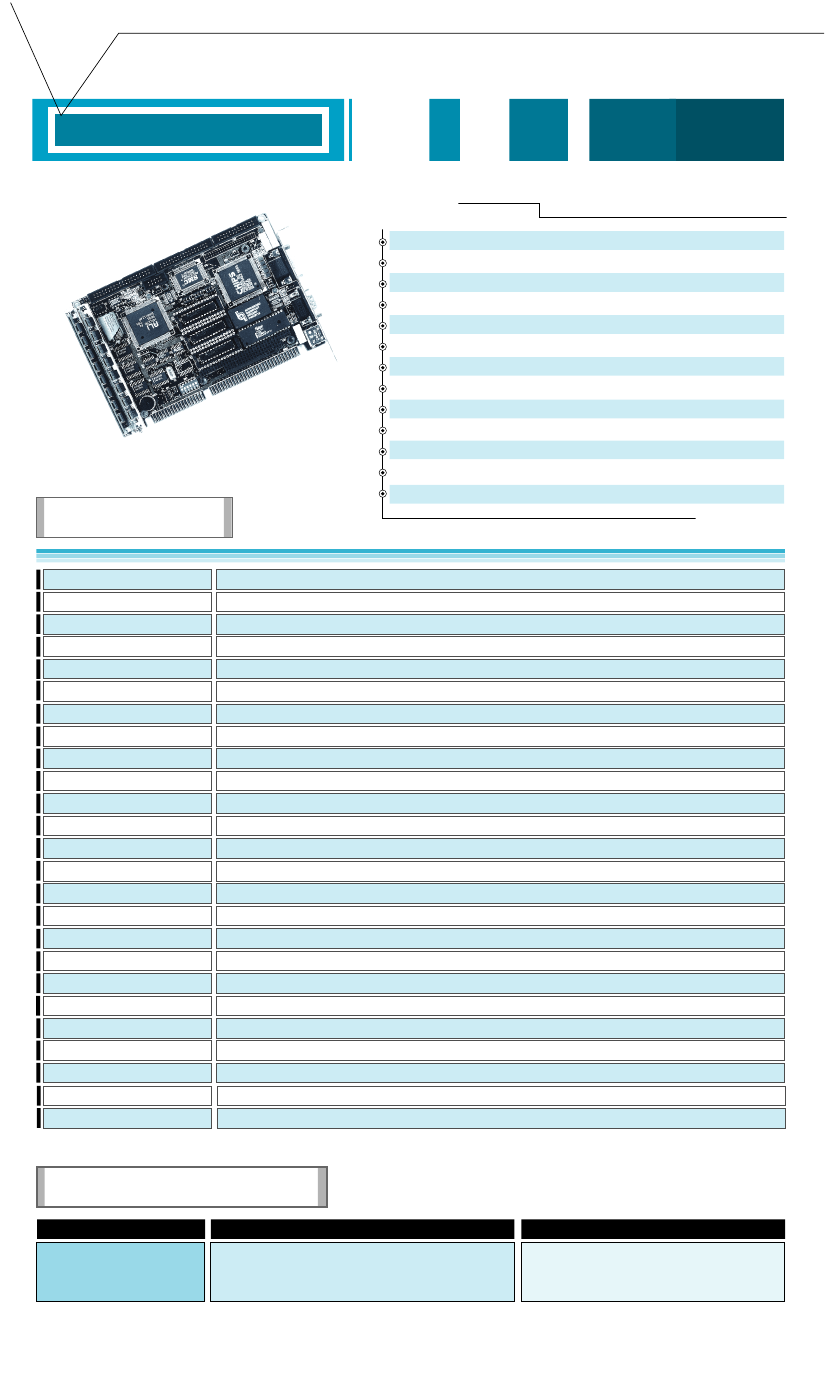

Half-size 386SX ISA-bus CPU Card with VGA/LCD, DOC, SSD
AR-B1376
Features
80386SX-33MHz CPU
ISA and non-stack through PC/104 bus
Up to 32MB FPM or EDO RAM
Onboard VGA/LCD panel display
Supports two IDE hard disk devices and two floppy disk device
Up to 3MB Solid State Disk
Supports one Bi-directional parallel port
Supports two serial ports
PC/AT compatible keyboard
AMI BIOS
Built-in status LED indicators
Programmable Watchdog timer
Multi-layer PCB for noise reduction
Specifications
General
CPU
Chipset
Bus Interface
Memory
VGA/LCD Display
IDE
FDD
Parallel Port
Serial Port
Solid State Disk
Keyboard
BIOS
Watchdog Timer
LED Indicator
Bus Speed
DMA Channels
Humidity
Interrupt Levels
Operating Temperature
Power Connector
RTC
Speaker
Storage Temp.
Power Req.
Dimensions
33MHz
ALI M6117C
ISA and non-stack through PC/104 Bus
Up to 32MB FPM or EDO RAM (Using two 72-pin SIMMs)
1MB VRAM (1024 x768 / 256 colors)
Supports one IDE port up to two IDE devices and IDE flash Modules
Supports one FDC port up to two FDDs
Supports one Bi-directional parallel port
Supports oneRS-232C, one RS-232C/485 serial ports
1.5- 3MB Flash/SRAM/EPROM disk(3 socket), one socket for DOC
PC/AT compatible keyboard
AMI Flash BIOS
Programmable watchdog timer
Built-in Power LED, HDD LED and Watchdog LED Indicators
7.159MHz
7 DMA channels
0 to 95% (non-condensing)
15 vectored interrupt levels
0 to 60 Celsius degree (140 degrees F)
One 8-pin (2.5mm) power connector
BQ3287MT or compatible chips
Onboard buzzer and external speaker with 4-pin header
-25 to 85 Celsius degree
+5V, 1.5A Maximum
185 mm x 122 mm
Ordering information:
Model No.
AR-B1376
Description
Half-size 386SX ISA-bus CPU Card with VGA/LCD,
DOC, SSD
Accessories
1. Cable : HDD cable, FDD cable, Print Port Cable
2. Disk : SSD Utility, DOS Driver, Win31 Driver
3. Adapter : AT to PS/2 keyboard Adapter
