APL1117 Datasheet

  • APL1117

  • 1A Low Dropout Fast Response Positive Adjustable Regulator a...

  • 18頁

  • ANPEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

APL1117
1A Low Dropout Fast Response Positive Adjustable Regulator and Fixed
1.8V, 2.5V, 2.85V and 3.3V
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Guaranteed Output Voltage Accuracy within 2%
Fast Transient Response
Guaranteed Dropout Voltage at Multiple
Currents
Load Regulation : 0.1% Typ.
Line Regulation : 0.03% Typ.
Low Dropout Voltage : 1.1V Typ. at I
OUT
=1A
Current Limit : 1A Typ. at T
J
=25擄C
On-Chip Thermal Limiting : 150擄C Typ.
Adjustable Output : 1.25~10.7V
Standard 3-pin TO-220, TO-252, TO-263 and
SOT-223 Power Packages
General Description
The APL1117 is a low dropout three-terminal adjust-
able regulators with 1A output current capability. In
order to obtain lower dropout voltage and faster tran-
sient response, which is critical for low voltage ap-
plications , the APL1117 has been optimized. The
device is available in an adjustable version and fixed
output voltages of 1.8V, 2.5V, 2.85V and 3.3V. The
output available voltage range of an adjustable ver-
sion is from 1.25~10.7V with an input supply below
12V. Dropout voltage is guaranteed at a maximum of
1.3V at 1A. Current limit is trimmed to ensure speci-
fied output current and controlled short-circuit current.
On-chip thermal limiting provides protection against
any combination of overload that would create exces-
sive junction temperatures. The APL1117 is available
in the industry standard 3-pin TO-220, TO-252, TO-
263, and the low profile surface mount SOT-223
power packages which can be used in applications
where space is limited.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Active SCSI Terminators
Low Voltage Logic Supplies
Battery-Powered Circuitry
Post Regulator for Switching Power Supply
Pin Description
Front View for TO-220
3
2
1
V
IN
V
OUT
ADJ/GND
Front View for TO-263
3
TAB is V
OUT
2
1
V
IN
V
OUT
ADJ/GND
Front View for TO-252
3
TAB IS V
OUT
2
1
V
IN
V
OUT
ADJ/GND

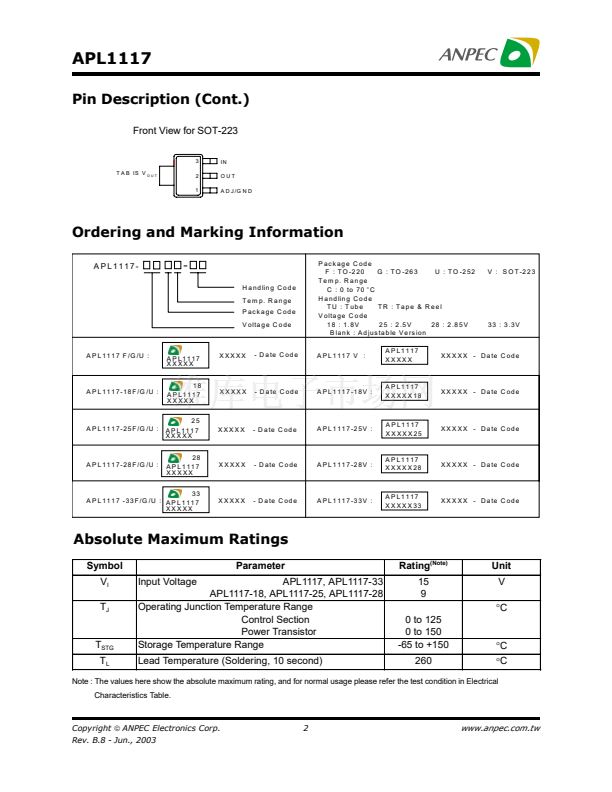

ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
錚?/div>
ANPEC Electronics Corp.
Rev. B.8 - Jun., 2003
1
www.anpec.com.tw
