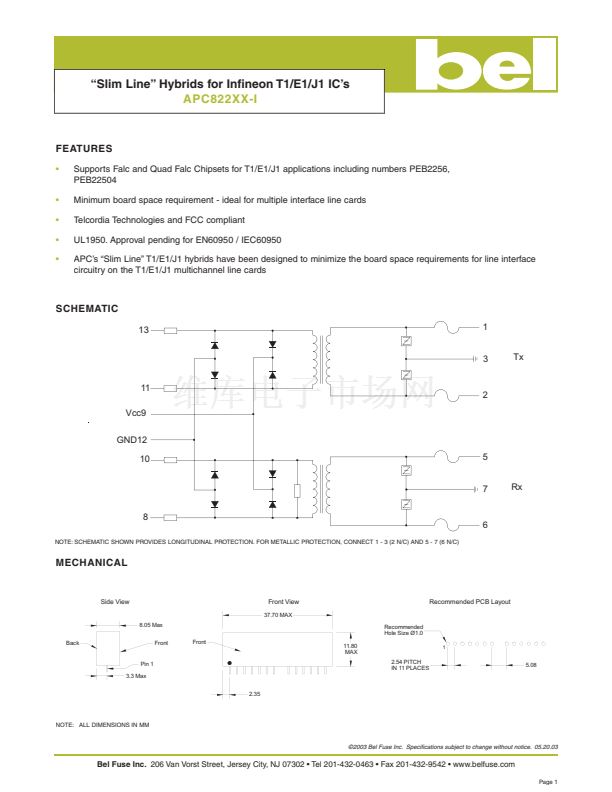

Supports Falc and Quad Falc Chipsets for T1/E1/J1 applications including numbers PEB2256, PEB22554 and
PEB22504
Minimum board space requirement - ideal for multiple interface line cards
Telcordia Technologies and FCC compliant
UL1950. Approval pending for EN60950 / IEC60950
APC鈥檚 鈥淪lim Line鈥?T1/E1/J1 hybrids have been designed to minimize the board space requirements for line interface
circuitry on the T1/E1/J1 multichannel line cards
SCHEMATIC
13
1
3
11
Vcc9
GND12
10
5
7
8
NOTE: SCHEMATIC SHOWN PROVIDES LONGITUDINAL PROTECTION. FOR METALLIC PROTECTION, CONNECT 1 - 3 (2 N/C) AND 5 - 7 (6 N/C)
Tx
2
Rx
6
MECHANICAL
Side View
8.05 Max
Back
Pin 1
3.3 Max
2.35
Front
Front
Front View
37.70 MAX
Recommended
Hole Size 脴1.0
11.80
MAX
2.54 PITCH
IN 11 PLACES
Recommended PCB Layout
1
5.08
NOTE: ALL DIMENSIONS IN MM
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
Page 1
