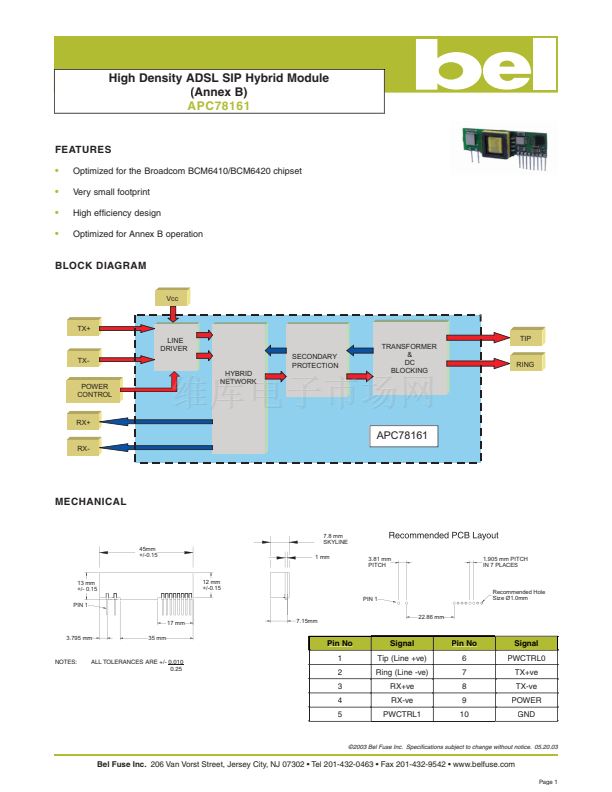

Optimized for the Broadcom BCM6410/BCM6420 chipset
Very small footprint
High efficiency design
Optimized for Annex B operation
BLOCK DIAGRAM
Vcc
TX+
LINE
DRIVER
TX-
POWER
CONTROL
HYBRID
NETWORK
TRANSFORMER
&
DC
BLOCKING
TIP
RING
SECONDARY
PROTECTION
RX+
APC78161
RX-
MECHANICAL
7.8 mm
SKYLINE
45mm
+/-0.15
1 mm
3.81 mm
PITCH
1.905 mm PITCH
IN 7 PLACES
13 mm
+/- 0.15
PIN 1
17 mm
3.795 mm
35 mm
12 mm
+/-0.15
PIN 1
22.86 mm
Recommended Hole
Size 脴1.0mm
7.15mm
Pin No
1
2
3
4
5
Signal
Tip (Line +ve)
Ring (Line -ve)
RX+ve
RX-ve
PWCTRL1
Pin No
6
7
8
9
10
Signal
PWCTRL0
TX+ve
TX-ve
POWER
GND
NOTES:
ALL TOLERANCES ARE +/- 0.010
0.25
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
