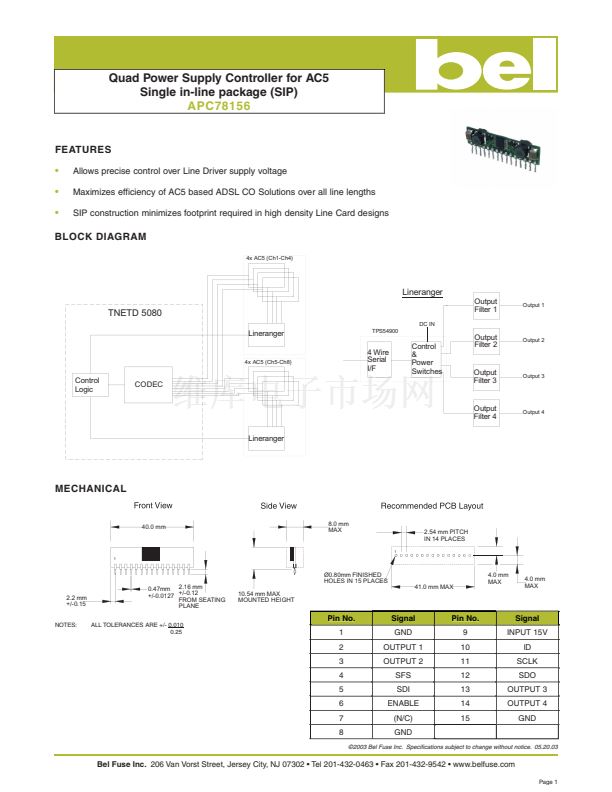

Allows precise control over Line Driver supply voltage
Maximizes efficiency of AC5 based ADSL CO Solutions over all line lengths
SIP construction minimizes footprint required in high density Line Card designs
BLOCK DIAGRAM
4x AC5 (Ch1-Ch4)
Lineranger
TNETD 5080
DC IN
Output
Filter 1
Output
Filter 2
Output
Filter 3
Output
Filter 4
Output 1
Lineranger
TPS54900
4x AC5 (Ch5-Ch8)
4 Wire
Serial
I/F
Control
&
Power
Switches
Output 2
Control
Logic
Output 3
CODEC
Output 4
Lineranger
MECHANICAL
40.0 mm
8.0 mm
MAX
2.54 mm PITCH
IN 14 PLACES
1
1
2.2 mm
+/-0.15
NOTES:
0.47mm 2.16 mm
+/-0.0127 +/-0.12
FROM SEATING
PLANE
ALL TOLERANCES ARE +/- 0.010
0.25
脴0.80mm FINISHED
HOLES IN 15 PLACES
10.54 mm MAX
MOUNTED HEIGHT
41.0 mm MAX
4.0 mm
MAX
4.0 mm
MAX
Pin No.
1
2
3
4
5
6
7
8
Signal
GND
OUTPUT 1
OUTPUT 2
SFS
SDI
ENABLE
(N/C)
GND
Pin No.
9
10
11
12
13
14
15
Signal
INPUT 15V
ID
SCLK
SDO
OUTPUT 3
OUTPUT 4
GND
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
