Designed for Broadcom BCM6315 and BCM6020 VDSL chipsets
Designed to be used with APC77155 MII Plan998+ AFE
Includes Line Protection (voltage and current) and US ISDN Low Pass Filter Function
Packaged to complement the APC77131-134 VDSL splitter series
Minimum surface mount footprint for increased line card density
ELECTRICAL SPECIFICATIONS@25擄C
Description
US ISDN
Passband Freq
DC to 90 KHz
Stopband Freq
350 KHz >
Attenuation
min
70dB
Impedance
100R

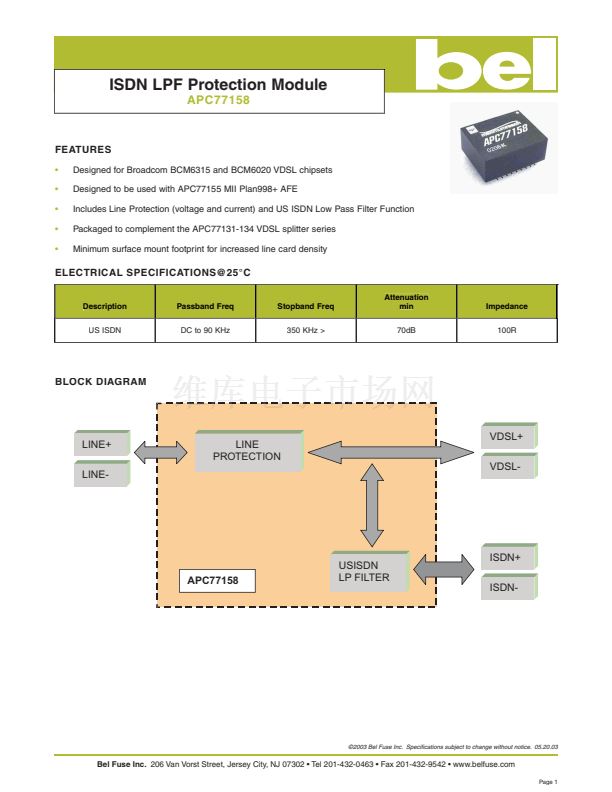

BLOCK DIAGRAM
LINE+
LINE-
LINE
PROTECTION
VDSL+
VDSL-
APC77158
USISDN
LP FILTER
ISDN+
ISDN-
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
Page 1
