Designed for Broadcom BCM6315 and BCM6020 chipset
Includes Line Protection (voltage and current) / VDSL filter / ISDN (CO)
Splitter functions
Minimum surface mount footprint for increased line card density

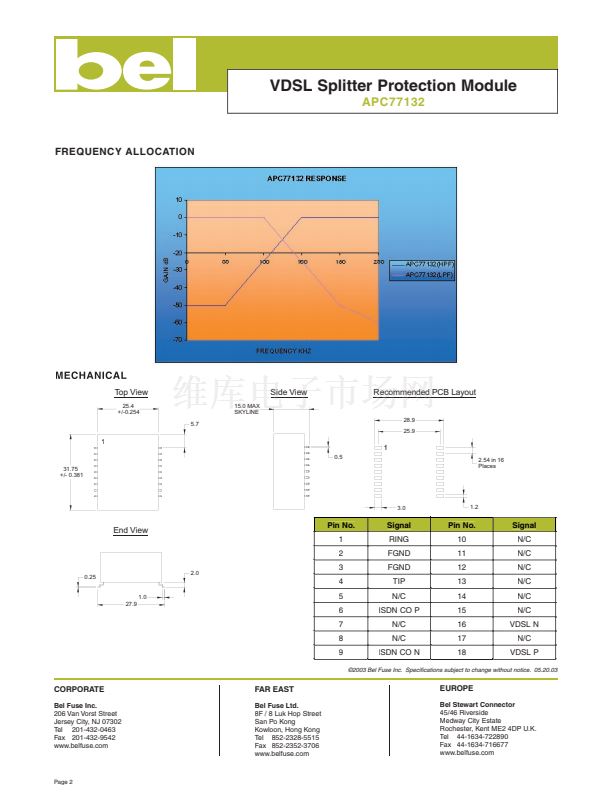

ELECTRICAL SPECIFICATIONS@25擄C
Description
ISDN LPF (CO)
VDSL HPF (CO)
Passband Freq
DC to 100 KHz
160 KHz >
Stopband Freq
180 KHz >
DC to 55 KHz
Attenuation
min
50dB
50dB
Impedance
100R
100R
BLOCK DIAGRAM
CMC
VDSL
FILTER
VDSL+
VDSL-
LINE+
LINE-
LINE
PROTECTION
APC77132
ISDN
FILTER
ISDN+
ISDN-
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
Page 1
