Designed for Broadcom BCM6315 and BCM6020 chipset
Includes Line Protection (voltage and current) / VDSL filter / POTS Splitter functions
Minimum surface mount footprint for increased line card density
ELECTRICAL SPECIFICATIONS@25擄C
Description
POTS LPF
VDSL HPF
Passband Freq
DC to 18 KHz
90 KHz >
Stopband Freq
130 KHz >
DC to 15 KHz
Attenuation
min
50dB
50dB
Impedance
600R
100R

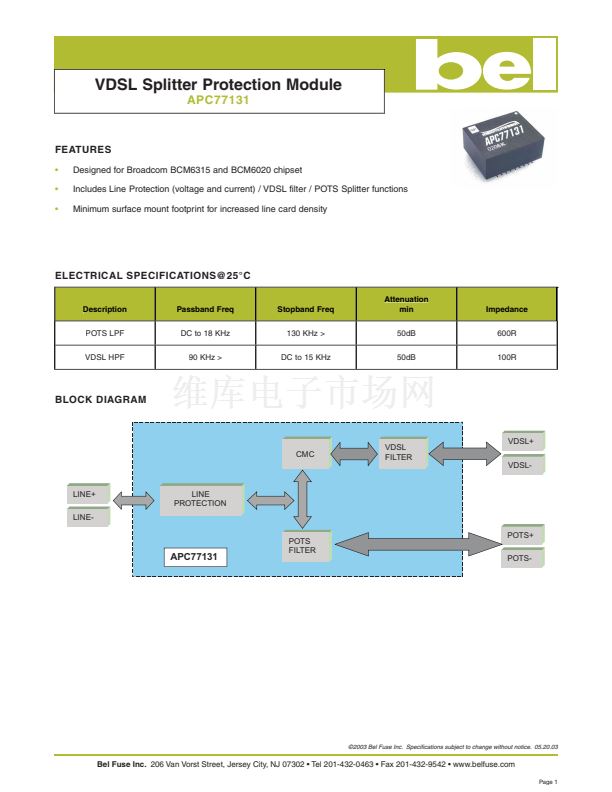

BLOCK DIAGRAM
CMC
VDSL
FILTER
VDSL+
VDSL-
LINE+
LINE-
LINE
PROTECTION
APC77131
POTS
FILTER
POTS+
POTS-
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
Page 1
