SMD ISDN S Interface Hybrid
APC5568-5v
ELECTRICAL SPECIFICATIONS @ 25擄C
Choke
Primary
Inductance
mH min
22
Leakage
Inductance
uH max
5.0
Primary
DCR
OHMS
+/- 30%
2.2
Secondary
DCR
OHMS
+/- 30%
2.8
Inductance
per line
mH nom
0.04
DCR
per line
OHMS
0.5
Turns Ratio
+/-5%
1CT:2
NOTES:
ISOLATION PRI:SEC 1500VRMS
APPROVALS PENDING FOR IEC6950:A4:1996 AND EN60950:A4:1997
DESIGNED FOR USE WITH MOTOROLA MC145575 AND COLOGNE HFC-SXX
EXTERNAL RESISTORS R1 AND R1鈥?REQUIRED FOR AMPLITUDE OPTIMIZATION. RECOMMENDED VALUE 560 OHMS
MECHANICAL
5.08
[0.2]
20.32
[0.8]
5.08
[0.2]
38.00
[1.49]
13.3 MAX
[0.52]
20.00
[0.78]
18
13
17.8
[0.7]
1
12
3.20
[0.16]
0.50
[0.02]
Side elevation
End elevation
0.25
[0.01]
2.54[0.1] Typica l
0.8
[0.03]
30.48
[1.2]
Plan view (suggested PCB hole layout)
NOTES:
NOT TO SCALE
TOLERANCE+/- 0.2MM
ALL DIMENSIONS IN MM [INCHES]
DOT ON TOP SURFACE INDICATES PIN 1
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com

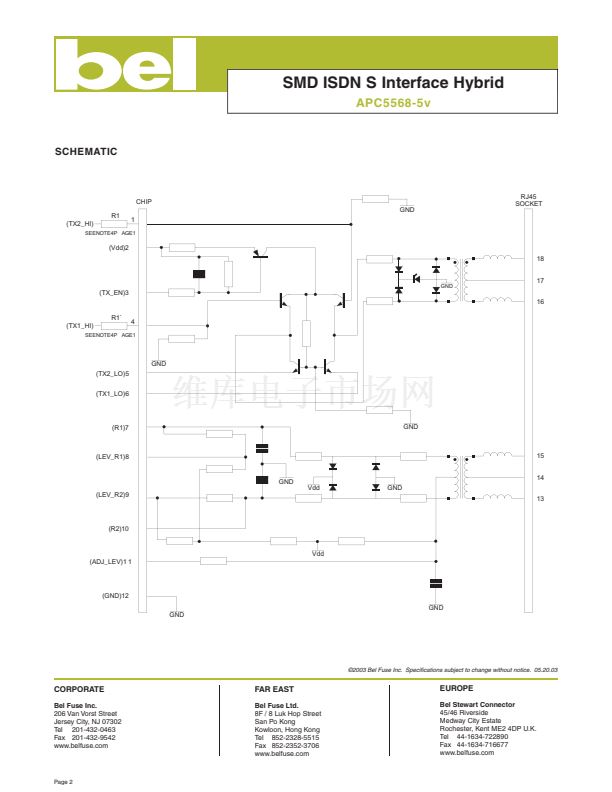

Page 1
