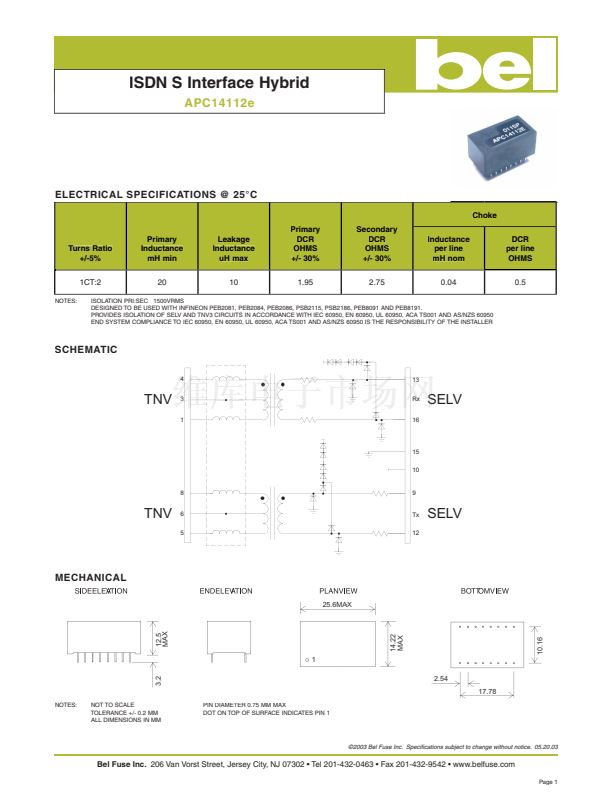

ISDN S Interface Hybrid
APC14112e
ELECTRICAL SPECIFICATIONS @ 25擄C
Choke
Primary
Inductance
mH min
20
Leakage
Inductance
uH max
10
Primary
DCR
OHMS
+/- 30%
1.95
Secondary
DCR
OHMS
+/- 30%
2.75
Inductance
per line
mH nom
0.04
DCR
per line
OHMS
0.5
Turns Ratio
+/-5%
1CT:2
NOTES:
ISOLATION PRI:SEC 1500VRMS
DESIGNED TO BE USED WITH INFINEON PEB2081, PEB2084, PEB2086, PSB2115, PSB2186, PEB8091 AND PEB8191.
PROVIDES ISOLATION OF SELV AND TNV3 CIRCUITS IN ACCORDANCE WITH IEC 60950, EN 60950, UL 60950, ACA TS001 AND AS/NZS 60950
END SYSTEM COMPLIANCE TO IEC 60950, EN 60950, UL 60950, ACA TS001 AND AS/NZS 60950 IS THE RESPONSIBILITY OF THE INSTALLER
SCHEMATIC
4
13
Rx
16
TNV
3
1
SELV
15
10
8
9
Tx
12
TNV
6
5
SELV
MECHANICAL
25.6MAX
12.5
MAX
14.22
MAX
1
3.2
2.54
17.78
NOTES:
NOT TO SCALE
TOLERANCE +/- 0.2 MM
ALL DIMENSIONS IN MM
PIN DIAMETER 0.75 MM MAX
DOT ON TOP OF SURFACE INDICATES PIN 1
漏2003 Bel Fuse Inc. Specifications subject to change without notice. 05.20.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
Page 1
10.16
1
