ACT鈥揝F512K16 High Speed

512Kx16 SRAM/FLASH Multichip Module

CIRCUIT TECHNOLOGY

FEATURES

www.aeroflex.com

Packaging 鈥?Hermetic Ceramic

2 鈥?512K x 8 SRAMs & 2 鈥?512K x 8 Flash Die in

One MCM

Access Times of 25ns (SRAM) and 60ns (Flash)

35ns (SRAM) and 70 or 90ns (Flash)

512K x 16 SRAM

512K x 16 5V Flash

Organized as 512K x 16 of SRAM and 512K x 16 of

Flash Memory with Separate Data Buses

Both Blocks of Memory are User Configurable as

1M x 8

Low Power CMOS

Input and Output TTL Compatible Design

MIL-PRF-38534 Compliant MCMs Available

Decoupling Capacitors and Multiple Grounds for Low

Noise

Industrial and Military Temperature Ranges

Industry Standard Pinouts

Note: Programming information available upon request

66 Pin, 1.08" x 1.08" x .160" PGA Type, No Shoulder,

Aeroflex code# "P3"

66 Pin, 1.08" x 1.08" x .185" PGA Type, With

Shoulder, Aeroflex code# "P7"

68 Lead, .94" x .94" x .140" Single-Cavity Small

Outline Gull Wing, Aeroflex code# "F18"

(Drops into

the 68 Lead JEDEC .99"SQ CQFJ footprint)

DESC SMD Pending 鈥?5962-96901

FLASH MEMORY FEATURES

Sector Architecture (Each Die)

Equal Sectors of 64K bytes each

Any combination of sectors can be erased with one

command sequence.

+5V Programing, 5V 鹵10% Supply

Embedded Erase and Program Algorithms

Hardware and Software Write Protection

Internal Program Control Time.

10,000 Erase / Program Cycles

Block Diagram 鈥?PGA Type Packages (P3 & P7) & CQFP (F18)

Pin Description

SWE

SCE

SWE

SCE

FWE

FCE

FWE

FCE

FI/O

0-15

鈥?/div>

512Kx8

SRAM

SI/O

0-7

512Kx8

SRAM

SI/O

8-15

512Kx8

Flash

FI/O

0-7

512Kx8

Flash

FI/O

8-15

SI/O

0-15

0鈥?8

FWE

1-2

Flash Data I/O

SRAM Data I/O

Address Inputs

Flash Write Enables

SWE

1-2

SRAM Write Enables

FCE

1-2

SCE

1-2

GND

Flash Chip Enables

SRAM Chip Enables

Output Enable

Not Connected

Power Supply

Ground

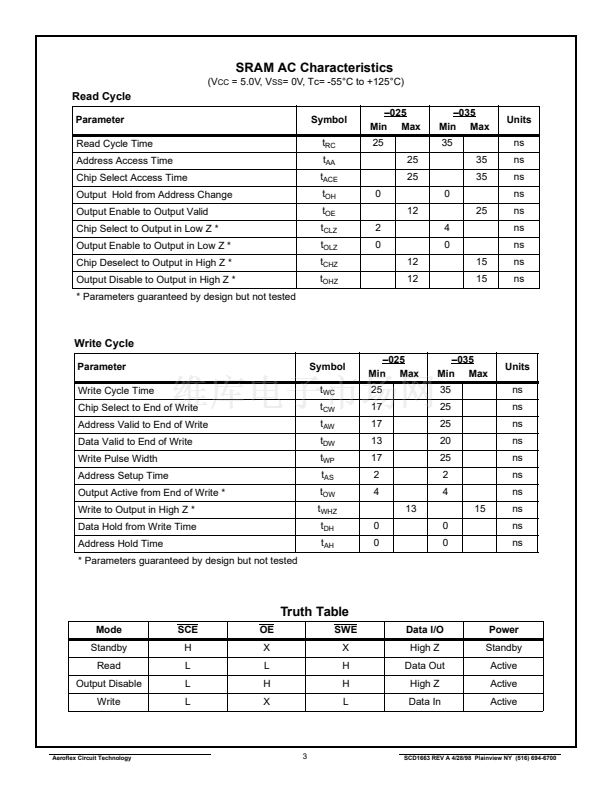

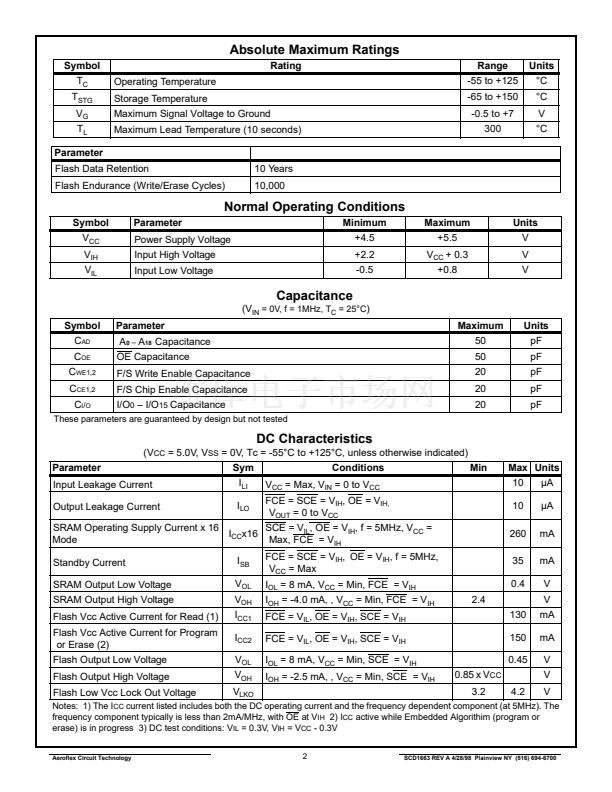

eroflex Circuit Technology - Advanced Multichip Modules 漏 SCD1663 REV A 4/28/98
