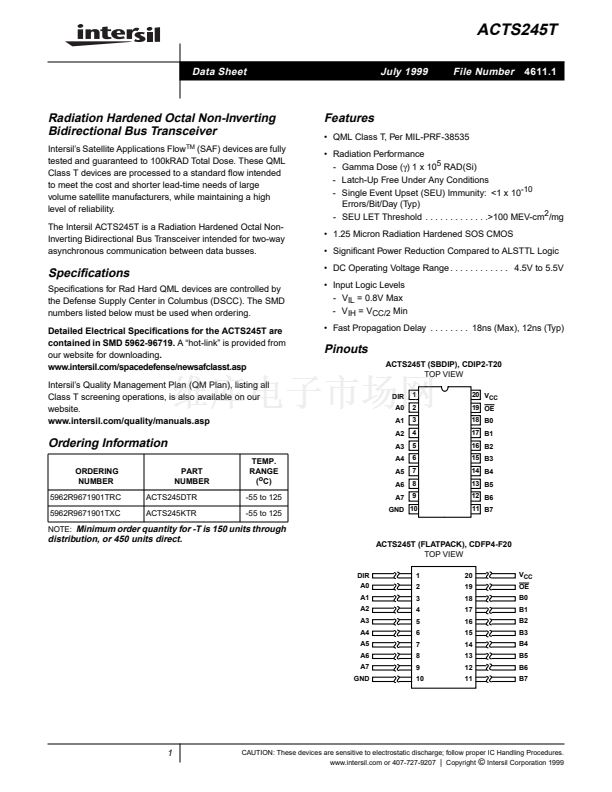

ACTS245T
Data Sheet
July 1999
File Number
4611.1
Radiation Hardened Octal Non-Inverting
Bidirectional Bus Transceiver
Intersil鈥檚 Satellite Applications
(SAF) devices are fully
tested and guaranteed to 100kRAD Total Dose. These QML
Class T devices are processed to a standard 鏗俹w intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The Intersil ACTS245T is a Radiation Hardened Octal Non-
Inverting Bidirectional Bus Transceiver intended for two-way
asynchronous communication between data busses.
Flow
TM
Features
鈥?QML Class T, Per MIL-PRF-38535
鈥?Radiation Performance
- Gamma Dose (緯) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day (Typ)
- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm
2
/mg
鈥?1.25 Micron Radiation Hardened SOS CMOS
鈥?Signi鏗乧ant Power Reduction Compared to ALSTTL Logic
鈥?DC Operating Voltage Range . . . . . . . . . . . . 4.5V to 5.5V
鈥?Input Logic Levels
- V
IL
= 0.8V Max
- V
IH
= V
CC/2
Min
鈥?Fast Propagation Delay . . . . . . . . 18ns (Max), 12ns (Typ)
Speci鏗乧ations
Speci鏗乧ations for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Speci鏗乧ations for the ACTS245T are
contained in SMD 5962-96719.
A 鈥渉ot-link鈥?is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil鈥檚 Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Pinouts
ACTS245T (SBDIP), CDIP2-T20
TOP VIEW
DIR
A0
A1
A2
1
2
3
4
5
6
7
8
9
20 V
CC
19 OE
18 B0
17 B1
16 B2
15 B3
14 B4
13 B5
12 B6
11 B7
Ordering Information
ORDERING
NUMBER
5962R9671901TRC
5962R9671901TXC
PART
NUMBER
ACTS245DTR
ACTS245KTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
A3
A4
A5
A6
A7
GND 10
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
ACTS245T (FLATPACK), CDFP4-F20
TOP VIEW
DIR
A0
A1
A2
A3
A4
A5
A6
A7
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
OE
B0
B1
B2
B3
B4
B5
B6
B7
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
