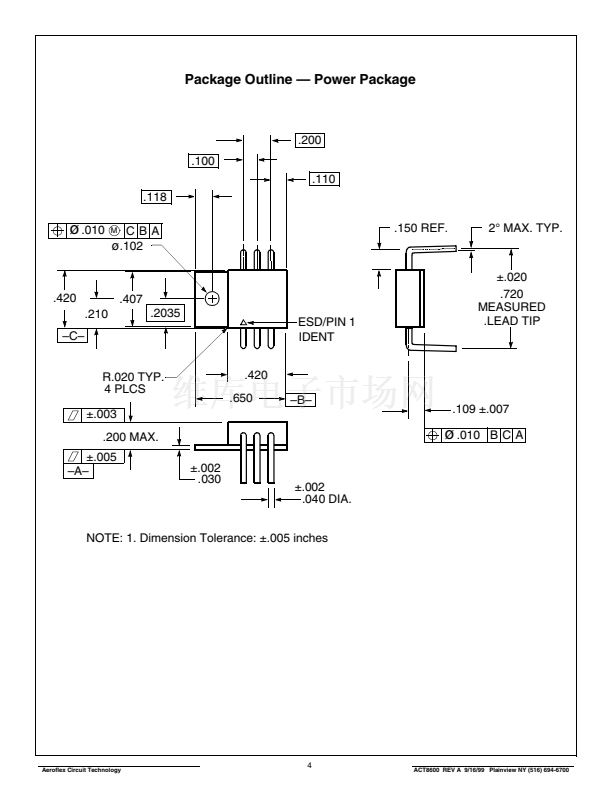

6 Leads, .65" x .42" x .200"
Power Package
Industrial , Military and Space
Temperature Range
DESC SMD 鈥?TBD
Load regulation 0.3% typ
Ripple rejection 77dB typ
A E
RO
LE
F
X
LA
C
ISO
9001
E
RT
I
F
I
E
D
B
S
I
NC
.
General Description
Aeroflex鈥檚 ACT8600 is a radiation hardened, Dual adjustable 6-terminal device containing a
positive (LM117) and a negative (LM137) voltage regulator each capable of supplying in excess of
1.5A over an output voltage range of 1.2V to 37V. Each regulator is exceptionally easy to set-up,
requiring only 2 external resistors to set the output voltage. The module design has been optimized
for excellent regulation and low thermal transients. There is full electrical isolation between positive
and negative regulators and each to the package.
Further, the ACT8600 features internal current limiting, thermal shutdown and safe-area
compensation, making them virtually blowout-proof against overloads. The ACT8600 serves a
wide variety of applications including local on-card regulation, programmable output voltage
regulation or precision current regulation.
The ACT8600 has been specifically designed to meet exposure to radiation environments. It is
available in a 6 lead Metal Power Package. It is guaranteed operational from -55擄C to +125擄C.
Available screened to MIL-STD-883, the ACT8600 is ideal for demanding industrial, military and
space applications.
1
1
ADJ
2
3
V
OUT
LM117
1
ADJ
V
OUT
LM137
2
6
4
V
IN
2
3
V
IN
3
5
Block Diagram / Schematic
eroflex Circuit Technology 鈥?Voltage Regulator Modules For The Future 漏 ACT8600 REV A 9/16/99
