ACT4460 Datasheet

  • ACT4460

  • ACT 4454 / 4460 Single Supply Transceivers for MIL-STD-1553A...

  • 8頁

  • AEROFLEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

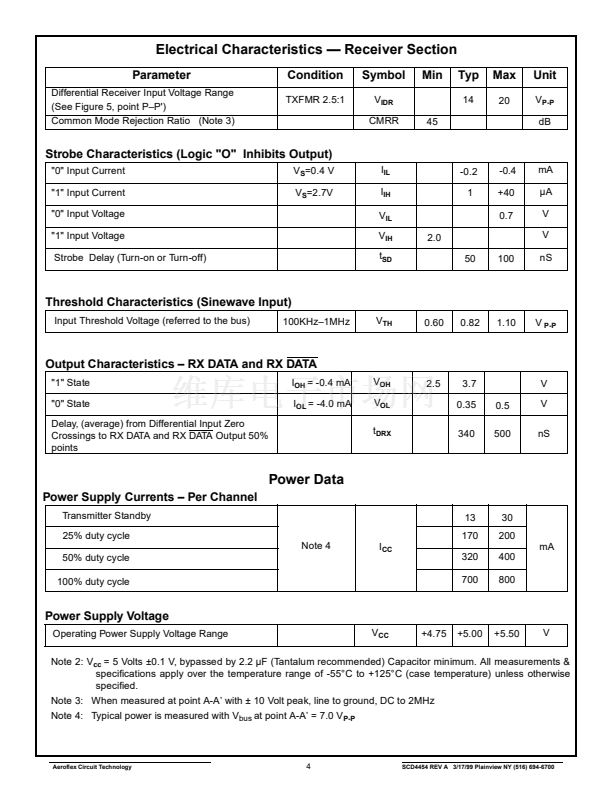

ACT 4454 / 4460 Single Supply Transceivers
for MIL-STD-1553A/B &
MacAir A3818, A4905, A5232 & A5690
Features
鈥?Single 5 Volt Supply Operation
鈥?Low Power Dissipation
鈥?Small Size & Light Weight
鈥?Dual Transceivers Save Space & Cost
鈥?Outstanding MIL-STD-1553A/B and MacAir A3818, A4905,
A5232, A5690 Performance
鈥?Processed and Screened to Mil-STD-883 Specs
鈥?Radiation Hard Dielectric Isolation Monolithic Construction
for Severe Space Environments
鈥?Superior High Frequency Line Transient and Input Ripple
Rejection
鈥?Input and Output TTL Compatible Design
鈥?DESC SMD# 5962-92061
CIRCUIT TECHNOLOGY
www.aeroflex.com
General Description
The Aeroflex Circuit Technology
ACT4454 / 4460 series are next
generation monolithic transceiver
designs
which
provides
full
compliance with MIL-STD-1553A/B
and MacAir A3818, A5690, A5232 &
A4905 requirements in the smallest
packages
with
low
power
consumption and single power supply
operation.
The ACT4454 / 4460 series
performs the front-end analog
function of inputting and outputting
data through a transformer to the
MIL-STD-1553 data bus.
The ACT4454 / 4460 series can be
considered a "Universal" Transceiver
in that it is compatible with
MIL-STD-1553A & B, Macair A-3818,
A-4905, A-5232 and A-5690.
Case Style
ACT 4454FP
Actual Size
TX DATA OUT
TX DATA IN
DRIVER
TX DATA IN
ACTIVE
FILTER
OUTPUT
STAGE
TX DATA OUT
Design of these transceivers
reflects particular attention to active
filter performance. This results in low
bit and word error rate with superior
waveform purity and minimal zero
crossover
distortion.
Efficient
transmitter electrical and thermal
design provides low internal power
dissipation and heat rise at high as
well as low duty cycles.
Each channel of the dual
transceiver is completely separate
from the other and fully independent.
This includes power leads as well as
signal lines. Hence, each channel
may be connected to a different data
bus with no interaction.
TX INHIBIT
RX DATA OUT
COMP.
+5 V
REFERENCE
+5V RTN
RX DATA IN
RX DATA IN
INPUT
AMPLIFIER
ACTIVE
FILTER
RX DATA OUT
COMP.
STROBE
Transmitter:
Block Diagram (without Transformer)
The Transmitter section accepts
bi-phase TTL data at the input and
eroflex Circuit T
echnology
鈥?Data Bus Modules For The Future 漏 SCD4454 REV A 3/17/99
