ACS752SCA-100 Datasheet

  • ACS752SCA-100

  • Current Sensor

  • 1626.88KB

  • 11頁

  • ALLEGRO   ALLEGRO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Current Sensor: ACS752SCA-100
The Allegro ACS752 family of current sensors provides economical and precise
solutions for current sensing in industrial, commercial, and communications sys-
tems. The device package allows easy implementation by the customer. Typical
applications include: motor control, load detection and management, switched
mode power supplies, and overcurrent fault protection.

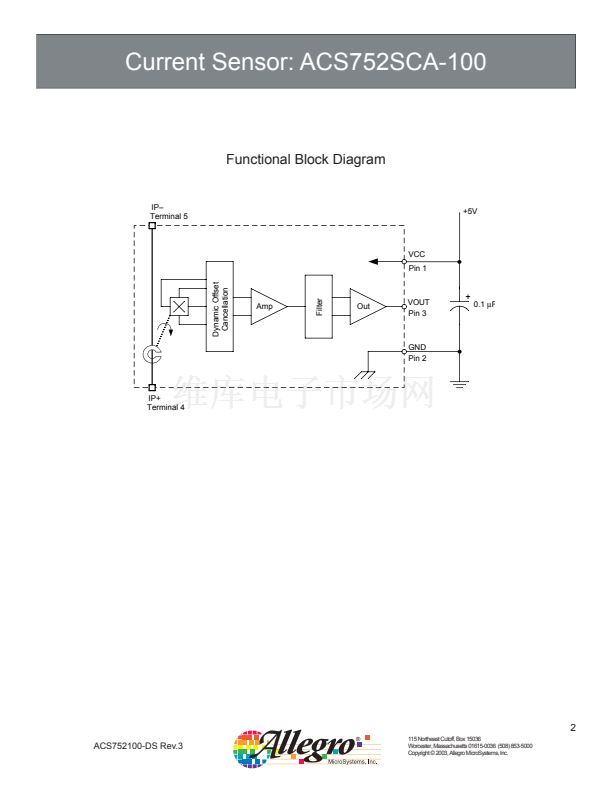

The sensor consists of a precision linear Hall IC, which is optimized to an internal
magnetic circuit to increase device sensitivity. The combination of a precisely
controlled self-aligning assembly process (patents pending), and the factory pro-
grammed precision of the linear Hall sensor, result in high-level performance and
product uniformity.
The primary conductor used for current sensing (terminals 4 and 5) is designed
for extremely low power loss. These power terminals also are electrically isolated
from the sensor leads (pins 1, 2, and 3). This allows the ACS752 family of sen-
sors to be used in applications requiring electrical isolation, without using opto-
isolators or other costly isolation techniques.
The output of this device has a positive slope (>V
CC
/ 2) when an increasing cur-
rent flows from terminal 4 to terminal 5.
4
5
1
2
3
Pin 1: V
CC
Pin 2: Gnd
Pin 3: Output
Terminal 4: I
p+
Terminal 5: I
p-
ABSOLUTE MAXIMUM RATINGS
Operating Temperature
S .....................................................
鈥?0 to +85潞C
Supply Voltage, Vcc...........................................
16 V
Output Voltage ...................................................
16 V
Output Current Source .....................................
3 mA
Output Current Sink........................................10
mA
Maximum Storage Temperature......................
170擄C
Maximum Junction Temperature ....................
165擄C
The ACS752 family is lead-free. All leads are coated with 100% matte tin, and
there is no lead inside the package. The heavy gauge leadframe is made of
oxygen-free copper.
Features and Benefits
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Always order by complete part number:
ACS752SCA-100
Monolithic Hall IC for high reliability
Single +5 V supply
High isolation voltage
Lead-free
UL recognized
End-of-line factory-trimmed for gain and offset
Ultra-low power loss: low resistance of primary conductor
Ratiometric output from supply voltage
Low thermal drift of offset voltage
On-chip transient protection
Small package size, with easy mounting capability
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Industrial systems
Motor control
Power distribution
Battery power systems
Electric vehicles
ACS752100-DS Rev.3
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
Copyright 漏 2003, Allegro MicroSystems, Inc.

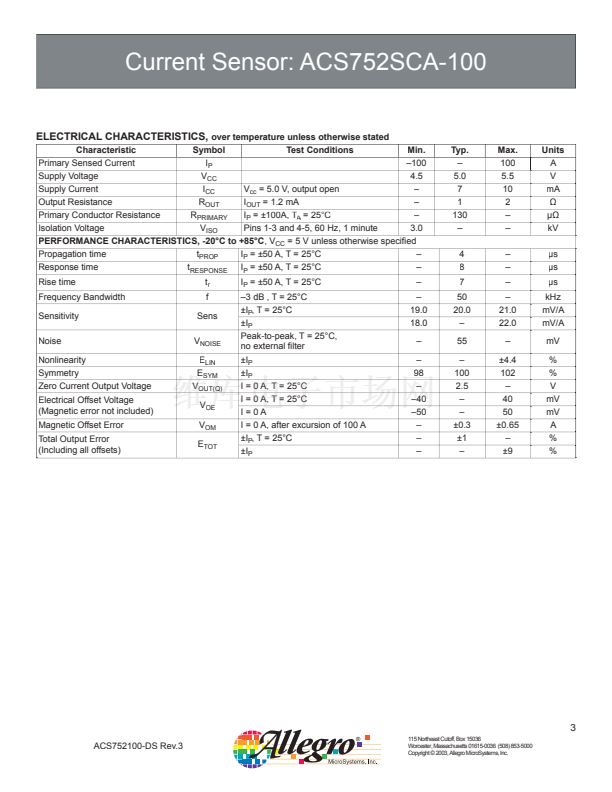

ACS752SCA-100 產品屬性

  • 170

  • 傳感器，轉換器

  • 電流

  • -

  • ±100A

  • ±1%

  • 38 ~ 42 mV/A

  • 7mA

  • 霍爾效應

  • 4.5 V ~ 5.5 V

  • 2.5V

  • 50kHz

  • 8µs

  • 雙向

  • -20°C ~ 85°C

  • 5-CA 成形引線

  • 散裝
