ACS120-7SB-TR Datasheet

  • ACS120-7SB-TR

  • AC LINE SWITCH

  • 121.85KB

  • 11頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

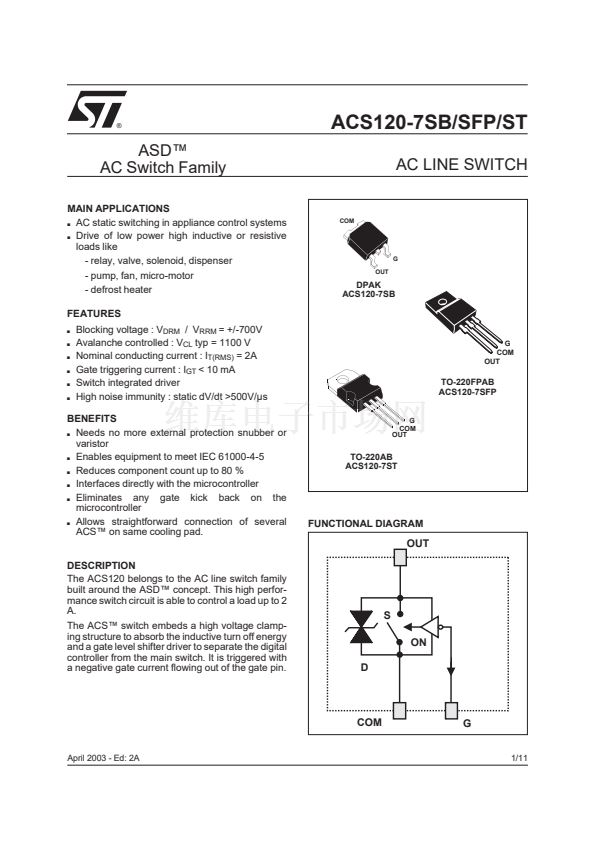

ACS120-7SB/SFP/ST
AC LINE SWITCH
ASD鈩?/div>
AC Switch Family

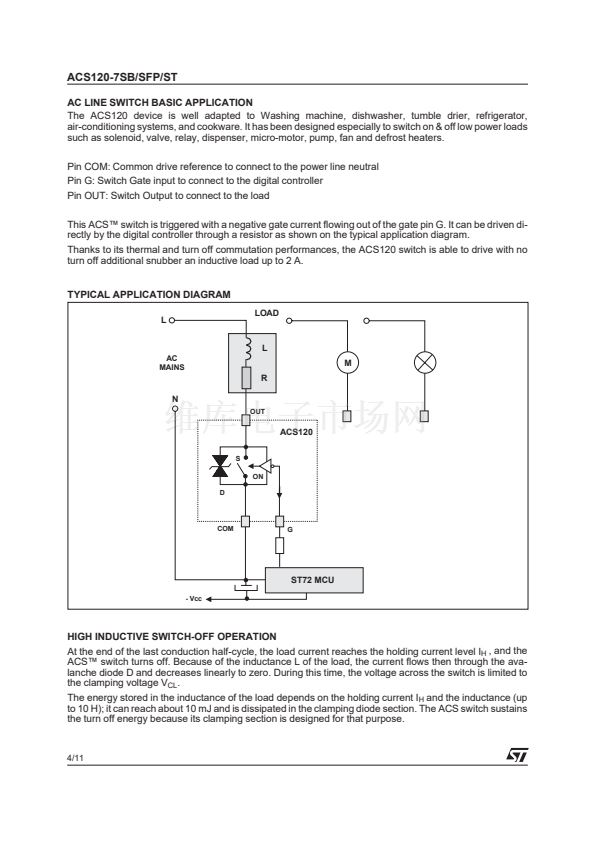

MAIN APPLICATIONS
AC static switching in appliance control systems
Drive of low power high inductive or resistive
loads like
- relay, valve, solenoid, dispenser
- pump, fan, micro-motor
- defrost heater
s
s
COM
G
OUT

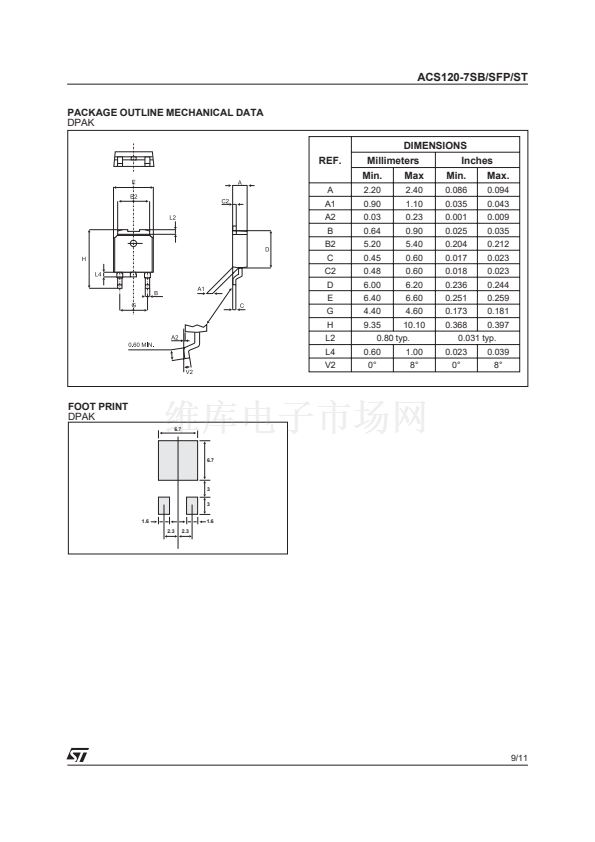

DPAK
ACS120-7SB
FEATURES
s
s
s
s
s
s
Blocking voltage : V
DRM
/ V
RRM
= +/-700V
Avalanche controlled : V
CL
typ = 1100 V
Nominal conducting current : I
T(RMS)
= 2A
Gate triggering current : I
GT
< 10 mA
Switch integrated driver
High noise immunity : static dV/dt >500V/碌s
G
COM
OUT
G
COM
OUT

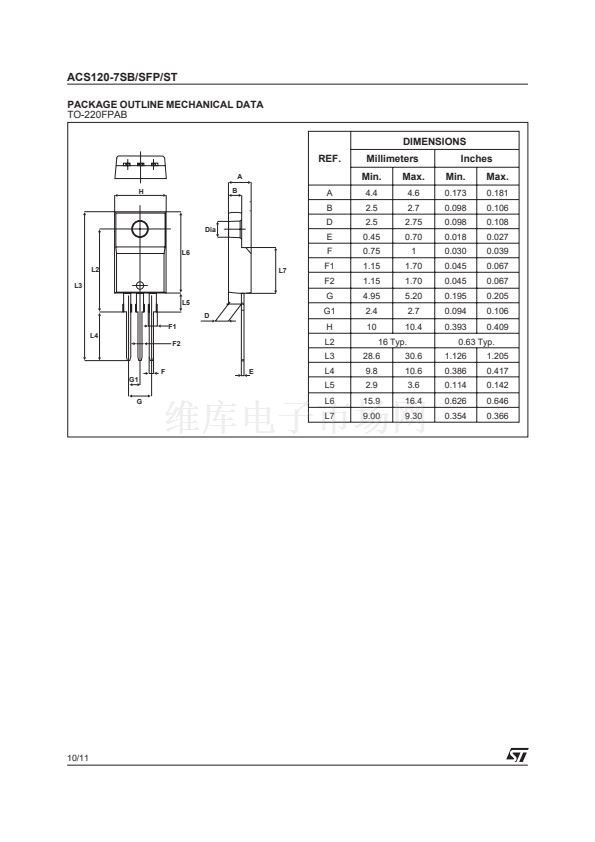

TO-220FPAB
ACS120-7SFP
BENEFITS
Needs no more external protection snubber or
varistor
Enables equipment to meet IEC 61000-4-5
Reduces component count up to 80 %
Interfaces directly with the microcontroller
Eliminates any gate kick back on the
microcontroller
Allows straightforward connection of several
ACS鈩?on same cooling pad.
s
s
s
s
s
s

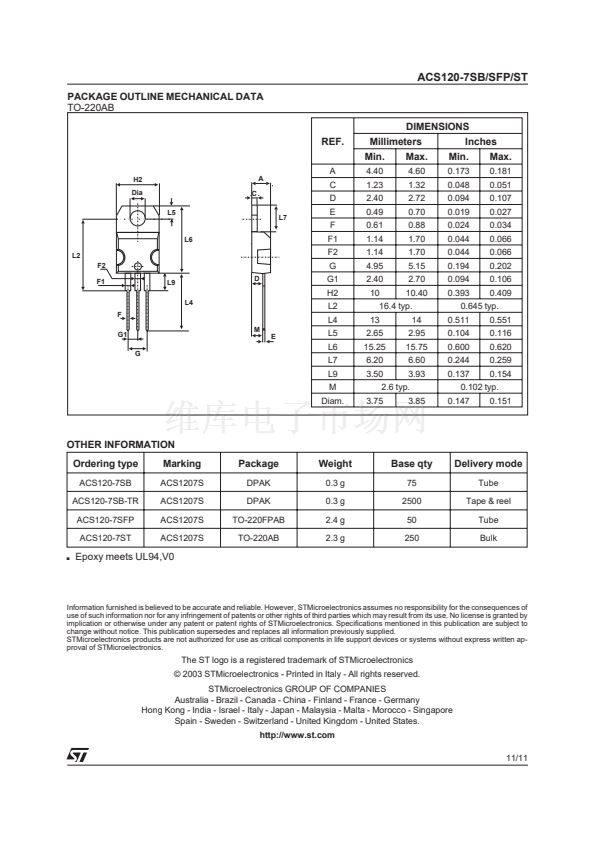

TO-220AB
ACS120-7ST
FUNCTIONAL DIAGRAM
OUT
DESCRIPTION
The ACS120 belongs to the AC line switch family
built around the ASD鈩?concept. This high perfor-
mance switch circuit is able to control a load up to 2
A.
The ACS鈩?switch embeds a high voltage clamp-
ing structure to absorb the inductive turn off energy
and a gate level shifter driver to separate the digital
controller from the main switch. It is triggered with
a negative gate current flowing out of the gate pin.
S
ON
D
COM
G
1/11
April 2003 - Ed: 2A

ACS120-7SB-TR 產品屬性

  • ACS120 View All Specifications

  • 1

  • 分離式半導體產品

  • 三端雙向可控硅開關

  • ASD™

  • 邏輯 - 靈敏柵極

  • 700V

  • 2A

  • 1V

  • 20A，11A

  • 10mA

  • 45mA

  • 單一

  • 表面貼裝

  • TO-252-3，DPak（2 引線+接片），SC-63

  • D-Pak

  • Digi-Reel?

  • 497-6099-6
