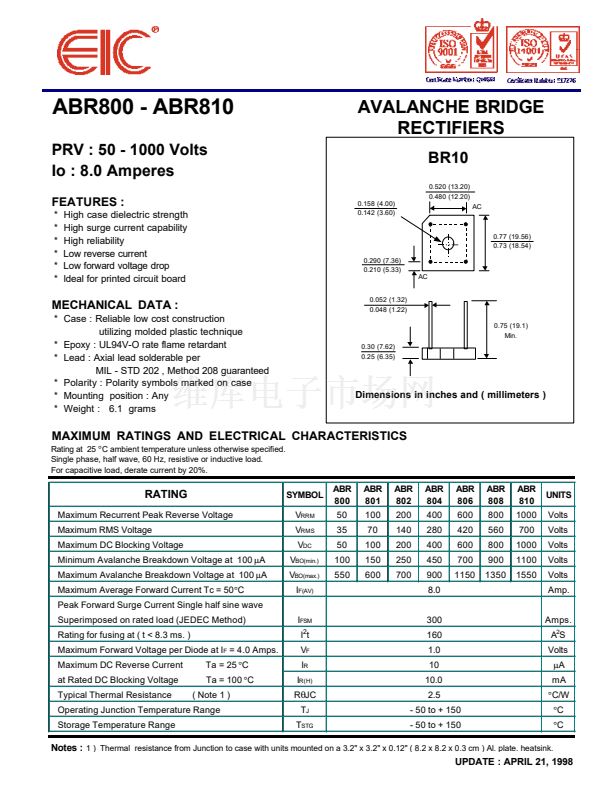

ABR800 - ABR810
PRV : 50 - 1000 Volts
Io : 8.0 Amperes
FEATURES :
*
*
*
*
*
*
High case dielectric strength
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
ldeal for printed circuit board
AVALANCHE BRIDGE
RECTIFIERS
BR10
0.520 (13.20)
0.480 (12.20)
0.158 (4.00)
0.142 (3.60)
AC
0.77 (19.56)
0.73 (18.54)
0.290 (7.36)
0.210 (5.33)
AC
MECHANICAL DATA :
* Case : Reliable low cost construction
utilizing molded plastic technique
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per
MIL - STD 202 , Method 208 guaranteed
* Polarity : Polarity symbols marked on case
* Mounting position : Any
* Weight : 6.1 grams
0.052 (1.32)
0.048 (1.22)
0.75 (19.1)
Min.
0.30 (7.62)
0.25 (6.35)
Dimensions in inches and ( millimeters )
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Minimum Avalanche Breakdown Voltage at 100
碌A(chǔ)
Maximum Avalanche Breakdown Voltage at 100
碌A(chǔ)
Maximum Average Forward Current Tc = 50擄C
Peak Forward Surge Current Single half sine wave
Superimposed on rated load (JEDEC Method)
Rating for fusing at ( t < 8.3 ms. )
Maximum Forward Voltage per Diode at I
F
= 4.0 Amps.
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance
Storage Temperature Range
Ta = 25
擄C
Ta = 100
擄C
( Note 1 )
SYMBOL
V
RRM
V
RMS
V
DC
V
BO(min.)
V
BO(max.)
I
F(AV)
I
FSM
I
2
t
V
F
I
R
I
R(H)
R
胃
JC
T
J
T
STG
ABR
800
50
35
50
100
550
ABR
801
100
70
100
150
600
ABR
802
200
140
200
250
700
ABR
804
400
280
400
450
900
8.0
300
160
1.0
10
10.0
2.5
ABR
806
600
420
600
700
1150
ABR
808
800
560
800
900
1350
ABR
810
1000
700
1000
1100
1550
UNITS
Volts
Volts
Volts
Volts
Volts
Amp.
Amps.
A
2
S
Volts
碌A(chǔ)
mA
擄C/W
擄C
擄C
Operating Junction Temperature Range
- 50 to + 150
- 50 to + 150
Notes :
1 ) Thermal resistance from Junction to case with units mounted on a 3.2" x 3.2" x 0.12" ( 8.2 x 8.2 x 0.3 cm ) Al. plate. heatsink.
UPDATE : APRIL 21, 1998
