A8282SLBTR Datasheet

  • A8282SLBTR

  • LNB Supply and Control Voltage Regulator

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

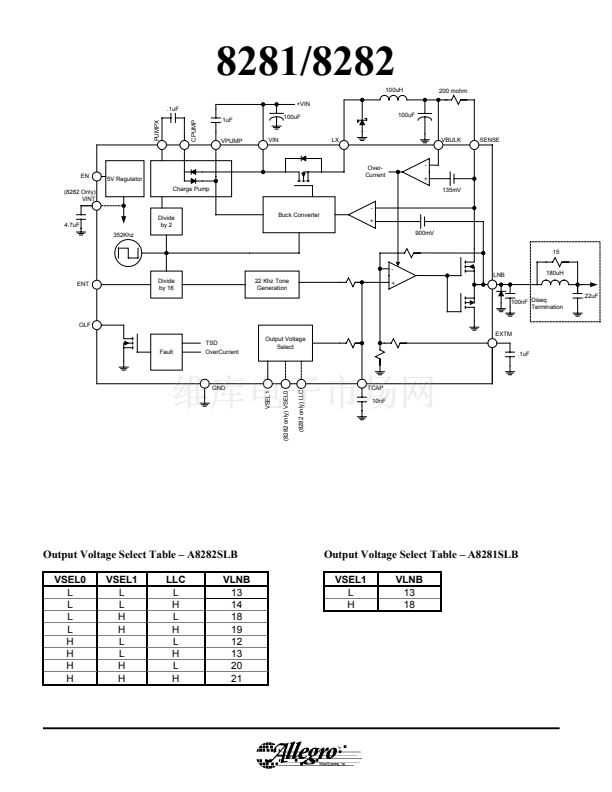

8281/8282
LNB SUPPLY AND CONTROL
VOLTAGE REGULATOR
11/18/2002
Intended for analog and digital satellite receivers, the low noise block
converter regulator (LNBR) is a monolithic linear and switching voltage
regulator, specifically designed to provide the power and the interface
signals to the LNB downconverter via the coaxial cable.
If the device is in stand-by mode (EN terminal LOW), the regulator
output is disabled. This is to allow the antenna downconverters to be
supplied/controlled by other satellite receivers sharing the same coaxial
cable. In this mode the device will limit reverse current.
The A8281 is supplied in a 16-lead plastic SOIC with copper batwing
tab (suffix 鈥淟B鈥?. The A8282 is supplied is a 24-lead plastic SOIC with
copper batwing tab (suffix 鈥淟B鈥?. Operating temperature range is standard
classification (suffix "S").
The A8282 is available for improved power dissipation as well as
allowing direct replacement of Allegro鈥檚 first generation LNBR device, the
A8283SLB, with the exception of the bypass switch.
ABSOLUTE MAXIMUM RATINGS
at TA = +25擄C
Load Supply Voltage, VIN ...........................47
V
Output Current, I
OUT
............
Internally Limited*
Output Voltage, V
OUT
........................
-1V to 22 V
Switching Node, LX .......................................-1V
Logic Input .....................................
-0.3 V to 7 V
Package Power Dissipation (TA = +25擄C), P
D
A8281SLB..........................
56
擄C/W**
A8282SLB..........................
50
擄C/W**
Operating Temperature Range,
T
A
................................
-20擄C to +85擄C
Junction Temperature, T
J
.........................
+150擄C
Storage Temperature Range,
T
S
...............................
-55擄C to +150擄C
*
Output current rating may be limited by duty cycle,
ambient temperature, and heat sinking. Under any set of
conditions, do not exceed the specified current rating or a
junction temperature of 150擄C.
** Measured on a PCB with 2 oz copper with ground area
of 1 square inch.
FEATURES
LNB selection and stand-by function
Built-in tone oscillator factory trimmed to 22 kHz facilitates DiSEqC鈩?/div>
encoding
Tracking switch-mode power converter for lowest dissipation
Externally adjustable short-circuit protection
LNB short-circuit protection and diagnostics
Auxiliary modulation input
Internal over temperature protection
Reverse current protection
Cable Length Compensation (A8282 only)
This device incorporates features that have patents pending.
Always order by complete part number:
Part Number
A8282SLBTR
A8282SLB
A8281SLB
Package
24 Lead SOIC Tape/Reel
24 Lead SOIC
16 Lead SOIC

A8282SLBTR 產品屬性

  • 1,000

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 專用型

  • -

  • 轉換器，模擬和數字式衛星信號接收器

  • 16.5 V ~ 48 V

  • 1

  • 12 V ~ 20 V

  • -20°C ~ 85°C

  • 表面貼裝

  • 24-SOIC（0.295"，7.50mm 寬）

  • 24-SOIC W

  • 帶卷 (TR)
