Earth- / Ground-Tester
SATURN GEO
With SATURN GEO you can measure and test:
q
RA (RE) Earth / Ground resistance 3 pole and 4 pole for
0.001
W
... 300 kW with voltages of 20 V / 48 V AC with
frequencies of 94, 105, 111, 128 Hz or AFC
(Automatic Frequency Control)
with autom. test of socket connection
q
R~ - Resistance 2 pole AC 0.001
W
... 300 kW
q
Noise voltage up to 50 V
q
R* - Measurement of the earthing impedance of electricity pylons
q
Autom. definition of auxiliary earth
electrode- and probe-resistance
q
Autom. limit value monitoring
q
Permanent storage of measurement values
Description

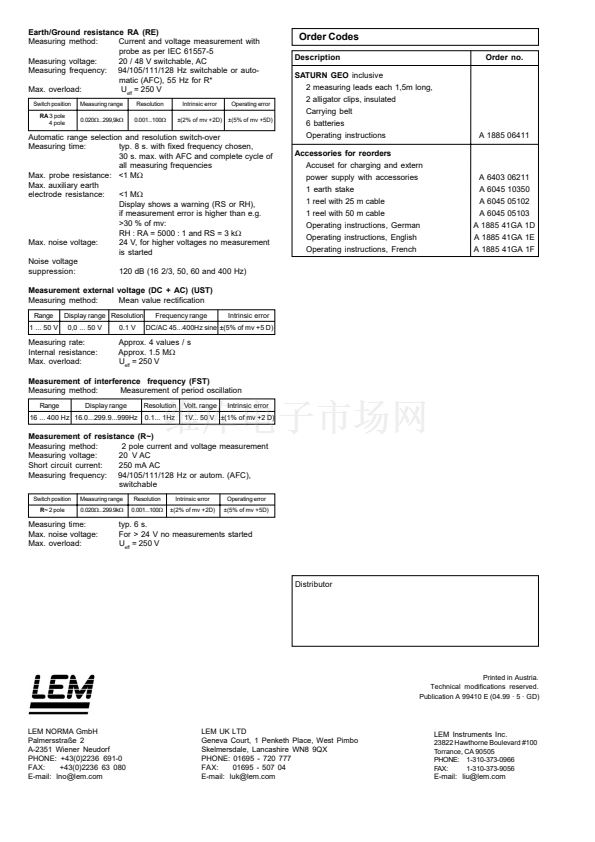

Technical data
General:
Display:
4-digit (2999), 7-Segment-Liquid-Crystal-
Display,
16 mm high, with fluorescent illumination
Working temp. range:
鈥?0擄 C 鈥?50擄 C
Operating temp. range: 0擄 C 鈥?35擄 C
Reference temp. range: +23擄 C 鹵 2擄 C
Storage temp. range:
鈥?0擄 C 鈥?60擄 C
Operating error:
Considers influence of operating tempera-
ture. Position and supply voltage have no
influence.
Intrinsic error:
Refers to the reference temperature range
Climate class:
JWG as per DIN 40040
Protective class:
IP 56 as per DIN 40050
Safety class:
Complies with class II ( ) as per
IEC 1010 300 V cat. II
Quality standard:
Developed, designed and manufactured
refering to DIN ISO 9001
Max. noise voltage:
For > 24 V measurements are locked
Power supply:
6 pcs. 1.5 V Alkali-Mangan batteries (LR 6)
or 1.5 V Zinc-Carbon-batteries (IEC R 6) or
1.2 V accus
Dimensions:
240 x 180 x 110 mm (L x W x H)
Weight:
Approx. 1.5 kg with batteries
ELMES 鈥?HEME 鈥?NORMA
