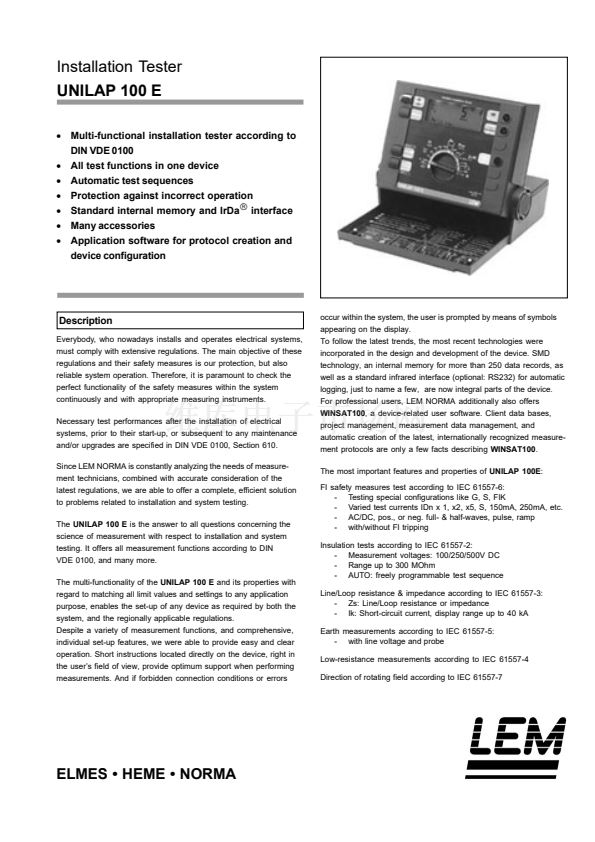

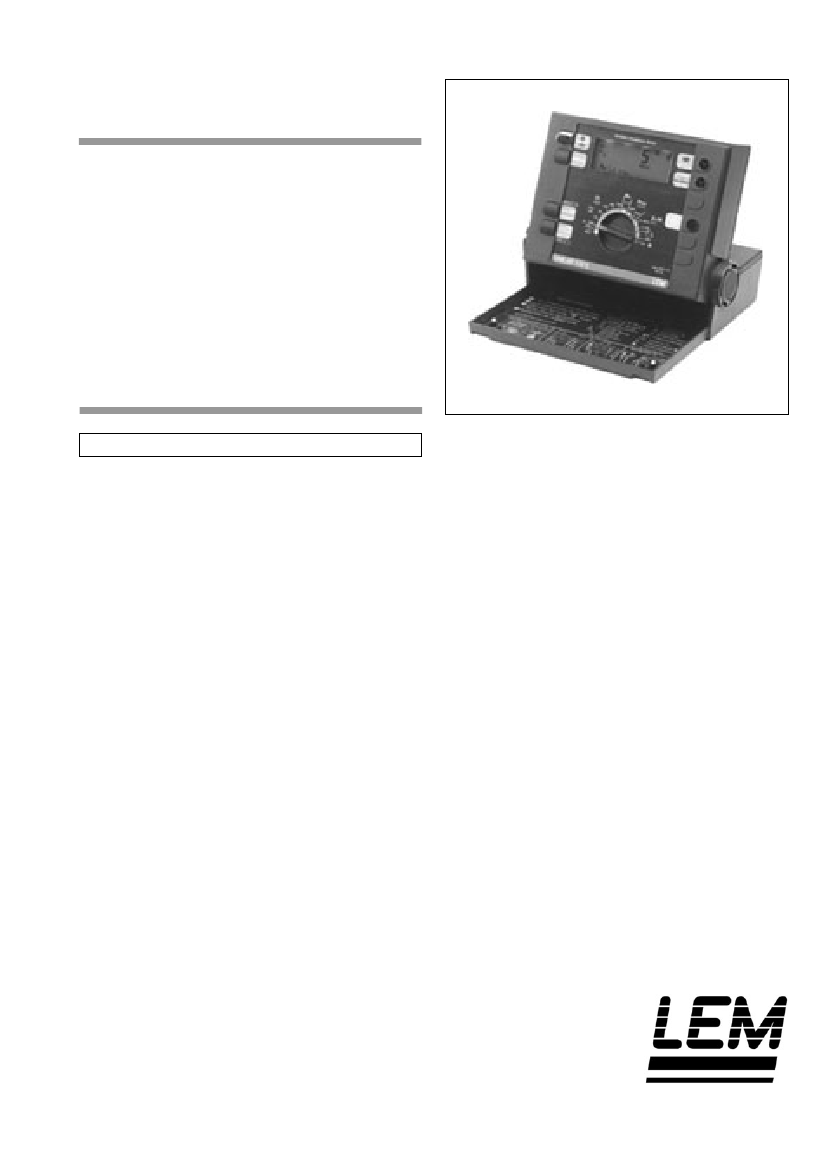

Installation Tester
UNILAP 100 E
路
Multi-functional installation tester according to
DIN VDE 0100
路
All test functions in one device
路
Automatic test sequences
路
Protection against incorrect operation
路
Standard internal memory and IrDa
芒
interface
路
Many accessories
路
Application software for protocol creation and
device configuration
Description
Everybody, who nowadays installs and operates electrical systems,
must comply with extensive regulations. The main objective of these
regulations and their safety measures is our protection, but also
reliable system operation. Therefore, it is paramount to check the
perfect functionality of the safety measures within the system
continuously and with appropriate measuring instruments.
Necessary test performances after the installation of electrical
systems, prior to their start-up, or subsequent to any maintenance
and/or upgrades are specified in DIN VDE 0100, Section 610.
Since LEM NORMA is constantly analyzing the needs of measure-
ment technicians, combined with accurate consideration of the
latest regulations, we are able to offer a complete, efficient solution
to problems related to installation and system testing.
The
UNILAP 100 E
is the answer to all questions concerning the
science of measurement with respect to installation and system
testing. It offers all measurement functions according to DIN
VDE 0100, and many more.
The multi-functionality of the
UNILAP 100 E
and its properties with
regard to matching all limit values and settings to any application
purpose, enables the set-up of any device as required by both the
system, and the regionally applicable regulations.
Despite a variety of measurement functions, and comprehensive,
individual set-up features, we were able to provide easy and clear
operation. Short instructions located directly on the device, right in
the user鈥檚 field of view, provide optimum support when performing
measurements. And if forbidden connection conditions or errors
occur within the system, the user is prompted by means of symbols
appearing on the display.
To follow the latest trends, the most recent technologies were
incorporated in the design and development of the device. SMD
technology, an internal memory for more than 250 data records, as
well as a standard infrared interface (optional: RS232) for automatic
logging, just to name a few, are now integral parts of the device.
For professional users, LEM NORMA additionally also offers
WINSAT100,
a device-related user software. Client data bases,
project management, measurement data management, and
automatic creation of the latest, internationally recognized measure-
ment protocols are only a few facts describing
WINSAT100.
The most important features and properties of
UNILAP 100E:

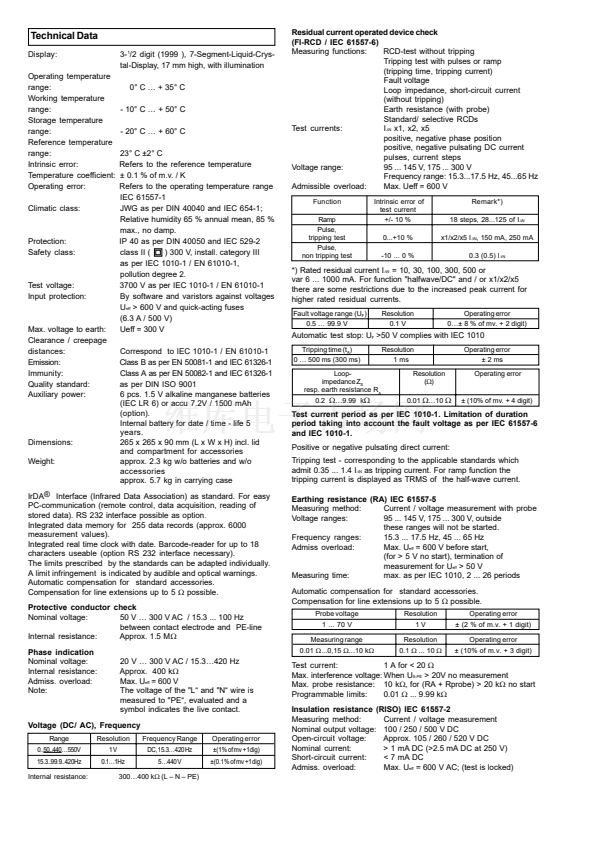

FI safety measures test according to IEC 61557-6:
- Testing special configurations like G, S, FIK
- Varied test currents IDn x 1, x2, x5, S, 150mA, 250mA, etc.
- AC/DC, pos., or neg. full- & half-waves, pulse, ramp
- with/without FI tripping
Insulation tests according to IEC 61557-2:
- Measurement voltages: 100/250/500V DC
- Range up to 300 MOhm
- AUTO: freely programmable test sequence

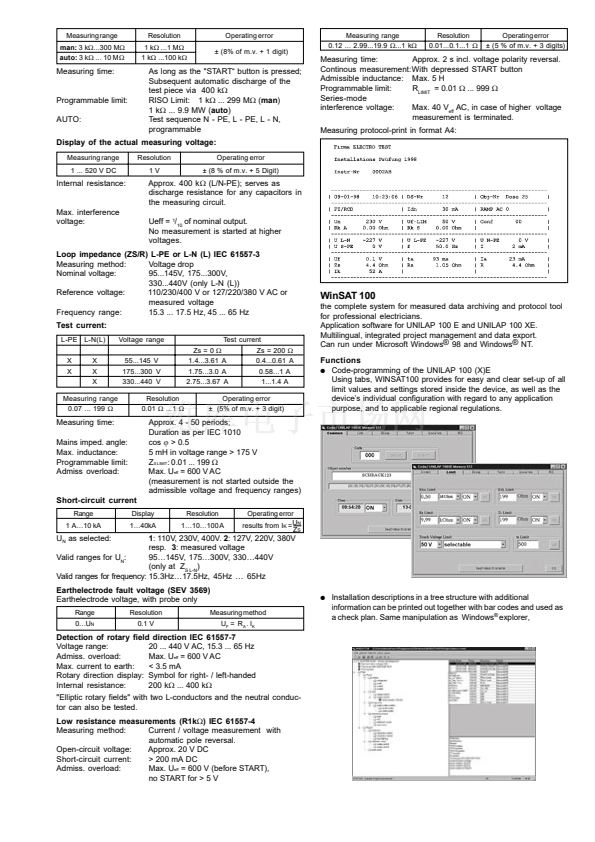

Line/Loop resistance & impedance according to IEC 61557-3:
- Zs: Line/Loop resistance or impedance
- Ik: Short-circuit current, display range up to 40 kA
Earth measurements according to IEC 61557-5:
- with line voltage and probe
Low-resistance measurements according to IEC 61557-4
Direction of rotating field according to IEC 61557-7
