93C66 Datasheet

  • 93C66

  • 4096-Bit Serial CMOS EEPROM (MICROWIRE⑩ Synchronous Bus)

  • 13頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FM93C66 4096-Bit Serial CMOS EEPROM
(MICROWIRE
TM
Synchronous Bus)
July 2000
FM93C66
4096-Bit Serial CMOS EEPROM
(MICROWIRE鈩?Synchronous Bus)
General Description
FM93C66 is a 4096-bit CMOS non-volatile EEPROM organized
as 256 x 16-bit array. This device features MICROWIRE interface
which is a 4-wire serial bus with chipselect (CS), clock (SK), data
input (DI) and data output (DO) signals. This interface is compat-
ible to many of standard Microcontrollers and Microprocessors.
There are 7 instructions implemented on the FM93C66 for various
Read, Write, Erase, and Write Enable/Disable operations. This
device is fabricated using Fairchild Semiconductor floating-gate
CMOS process for high reliability, high endurance and low power
consumption.
鈥淟Z鈥?and 鈥淟鈥?versions of FM93C66 offer very low standby current
making them suitable for low power applications. This device is
offered in both SO and TSSOP packages for small space consid-
erations.
Features
I
Wide V
CC
2.7V - 5.5V
I
Typical active current of 200碌A
10碌A standby current typical
1碌A standby current typical (L)
0.1碌A standby current typical (LZ)
I
No Erase instruction required before Write instruction
I
Self timed write cycle
I
Device status during programming cycles
I
40 year data retention
I
Endurance: 1,000,000 data changes
I
Packages available: 8-pin SO, 8-pin DIP, 8-pin TSSOP
Functional Diagram
CS
SK
DI
INSTRUCTION
REGISTER
V
CC
INSTRUCTION
DECODER
CONTROL LOGIC
AND CLOCK
GENERATORS
ADDRESS
REGISTER
HIGH VOLTAGE
GENERATOR
AND
PROGRAM
TIMER
DECODER
EEPROM ARRAY
16
READ/WRITE AMPS
16
V
SS
DATA IN/OUT REGISTER
16 BITS
DO
DATA OUT BUFFER
漏 2000 Fairchild Semiconductor International
FM93C66 Rev. C.1
1

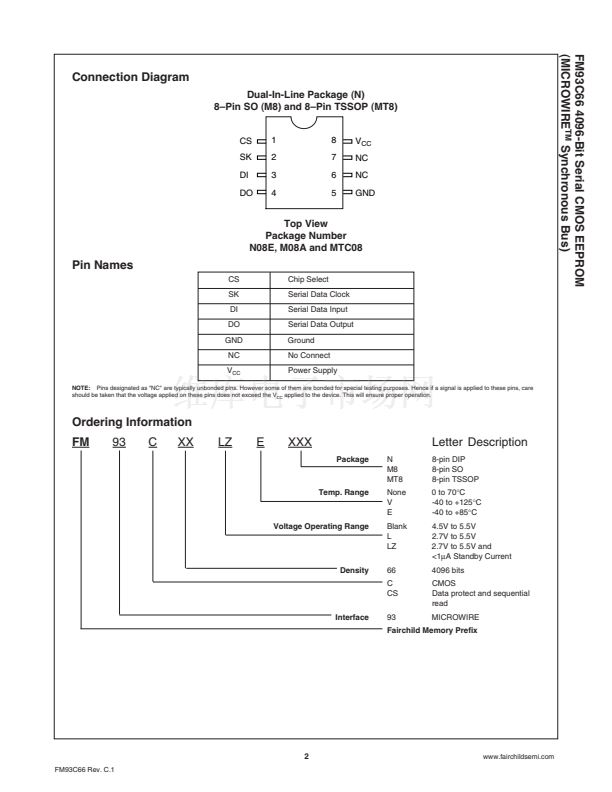

www.fairchildsemi.com
