93C57 Datasheet

  • 93C57

  • 2K-Bit Microwire Serial EEPROM

  • CATALYST

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

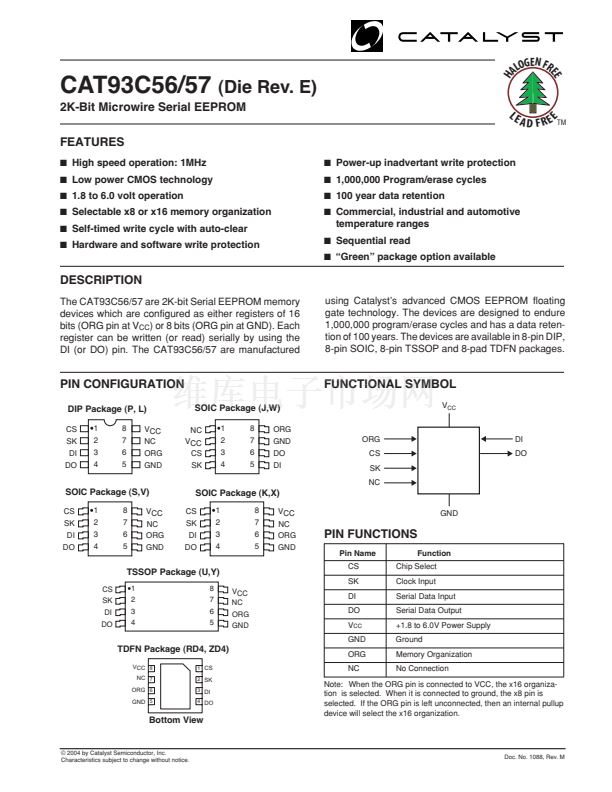

CAT93C56/57
(Die Rev. E)
2K-Bit Microwire Serial EEPROM
FEATURES
I
High speed operation: 1MHz
I
Low power CMOS technology
I
1.8 to 6.0 volt operation
I
Selectable x8 or x16 memory organization
I
Self-timed write cycle with auto-clear
I
Hardware and software write protection
H
GEN
FR
ALO
EE
LE
A
D
F
R
E
E
TM
I
Power-up inadvertant write protection
I
1,000,000 Program/erase cycles
I
100 year data retention
I
Commercial, industrial and automotive
temperature ranges
I
Sequential read
I
鈥淕reen鈥?package option available
DESCRIPTION

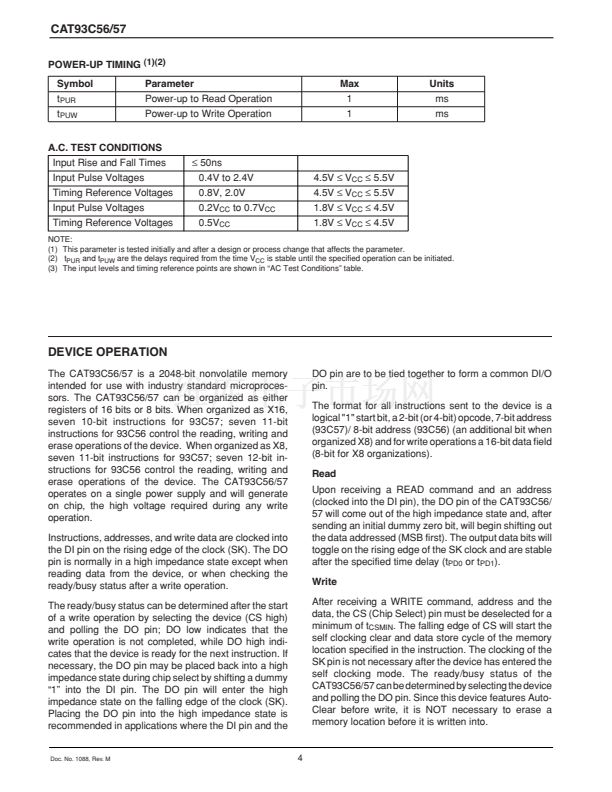

The CAT93C56/57 are 2K-bit Serial EEPROM memory
devices which are configured as either registers of 16
bits (ORG pin at V
CC
) or 8 bits (ORG pin at GND). Each
register can be written (or read) serially by using the
DI (or DO) pin. The CAT93C56/57 are manufactured
using Catalyst鈥檚 advanced CMOS EEPROM floating
gate technology. The devices are designed to endure
1,000,000 program/erase cycles and has a data reten-
tion of 100 years. The devices are available in 8-pin DIP,
8-pin SOIC, 8-pin TSSOP and 8-pad TDFN packages.
PIN CONFIGURATION
DIP Package (P, L)
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
NC
ORG
GND
FUNCTIONAL SYMBOL
SOIC Package (J,W)
NC
VCC
CS
SK
1
2
3
4
8
7
6
5
ORG
GND
DO
DI
V
CC
ORG
CS
SK
NC
DI
DO
SOIC Package (S,V)
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
NC
ORG
GND
SOIC Package (K,X)
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
NC
ORG
GND
GND
PIN FUNCTIONS
Pin Name
CS
SK
Function
Chip Select
Clock Input
Serial Data Input
Serial Data Output
+1.8 to 6.0V Power Supply
Ground
Memory Organization
No Connection
TSSOP Package (U,Y)
CS
SK
DI
DO
1
2
3
4
8
7
6
5
VCC
NC
ORG
GND
DI
DO
V
CC
GND
TDFN Package (RD4, ZD4)
VCC
8
NC
7
ORG
6
GND
5
1
CS
2
SK
3
DI
4
DO
ORG
NC
Bottom View
Note: When the ORG pin is connected to VCC, the x16 organiza-
tion is selected. When it is connected to ground, the x8 pin is
selected. If the ORG pin is left unconnected, then an internal pullup
device will select the x16 organization.

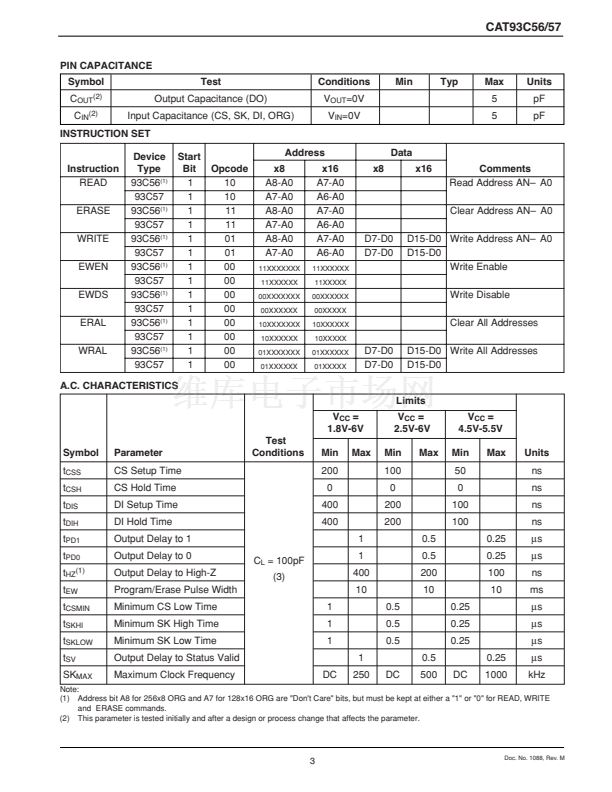

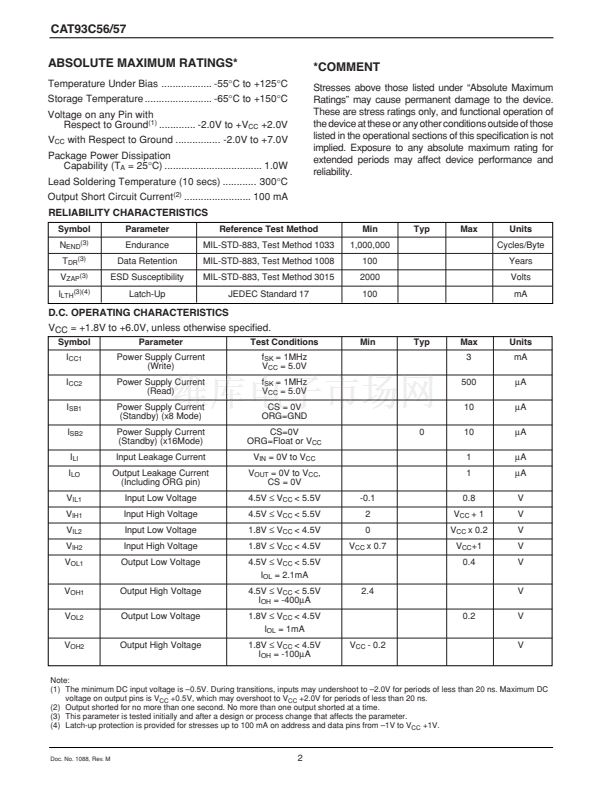

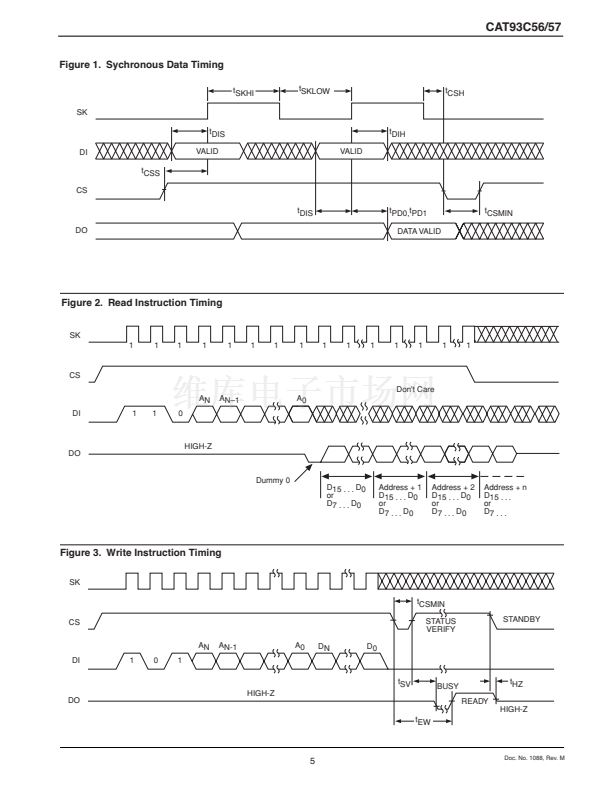

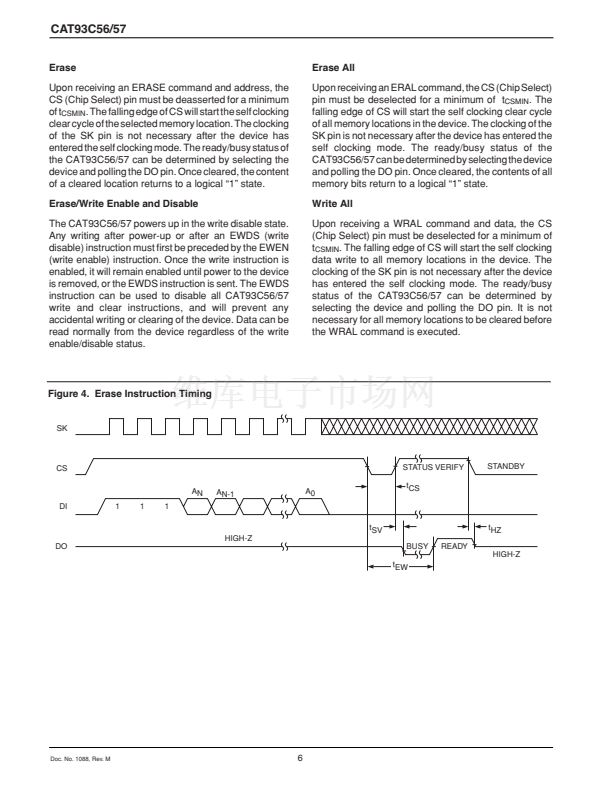

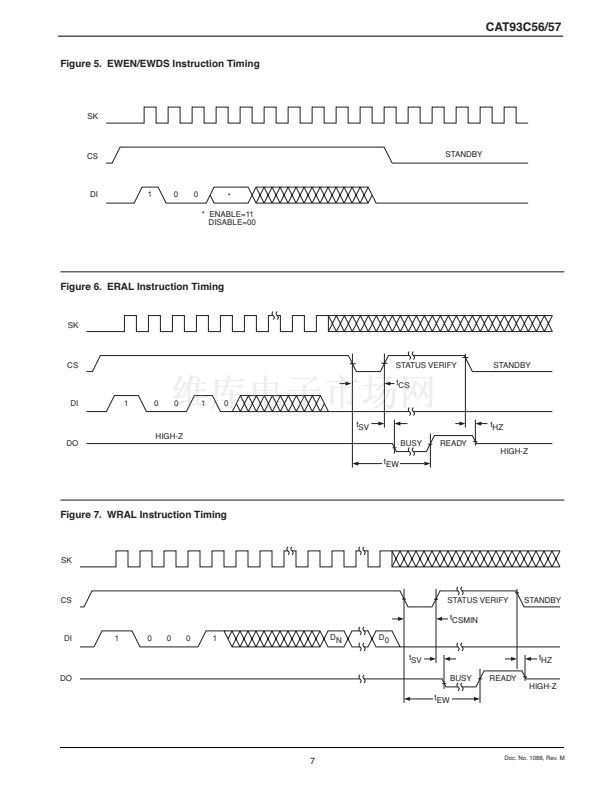

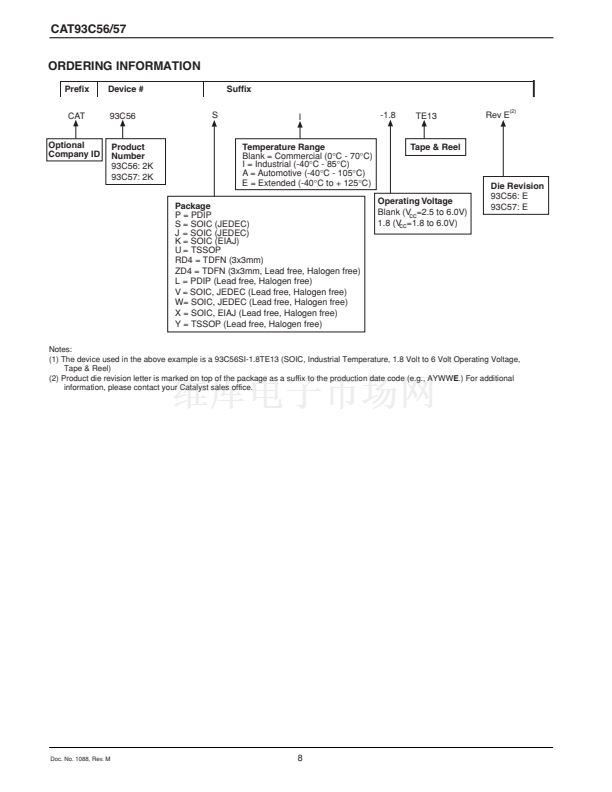

漏 2004 by Catalyst Semiconductor, Inc.
Characteristics subject to change without notice.
Doc. No. 1088, Rev. M
