9328DMQB Datasheet

  • 9328DMQB

  • Dual 8-Bit Shift Register

  • 6頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

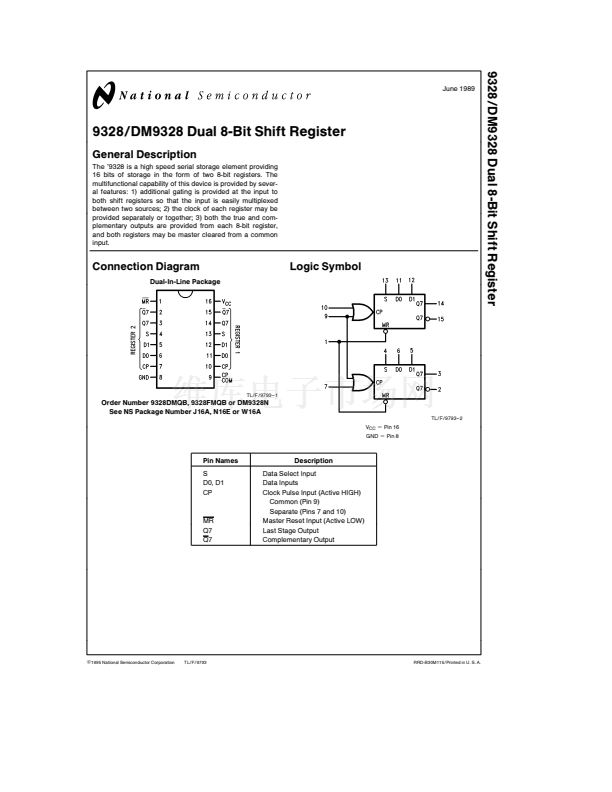

9328 DM9328 Dual 8-Bit Shift Register
June 1989
9328 DM9328 Dual 8-Bit Shift Register
General Description
The 鈥?328 is a high speed serial storage element providing
16 bits of storage in the form of two 8-bit registers The
multifunctional capability of this device is provided by sever-
al features 1) additional gating is provided at the input to
both shift registers so that the input is easily multiplexed
between two sources 2) the clock of each register may be
provided separately or together 3) both the true and com-
plementary outputs are provided from each 8-bit register
and both registers may be master cleared from a common
input
Connection Diagram
Dual-In-Line Package
Logic Symbol
TL F 9793 鈥?1
Order Number 9328DMQB 9328FMQB or DM9328N

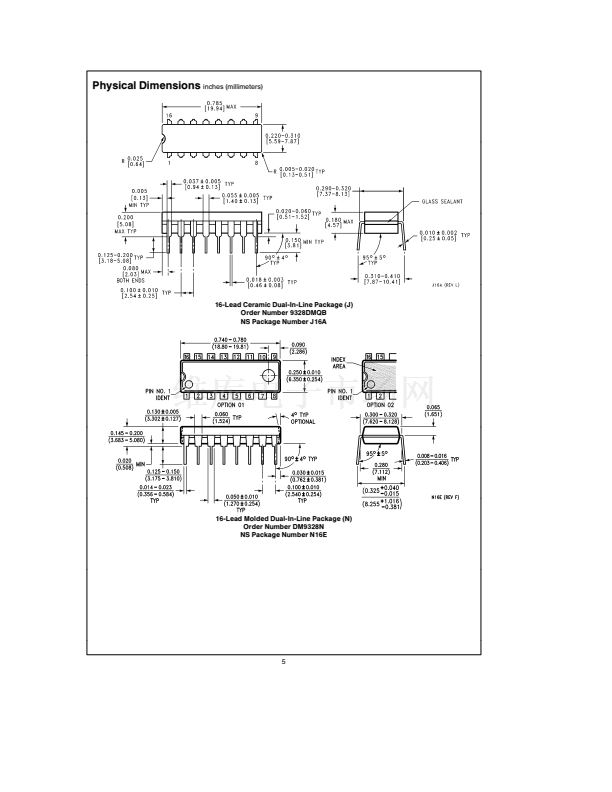

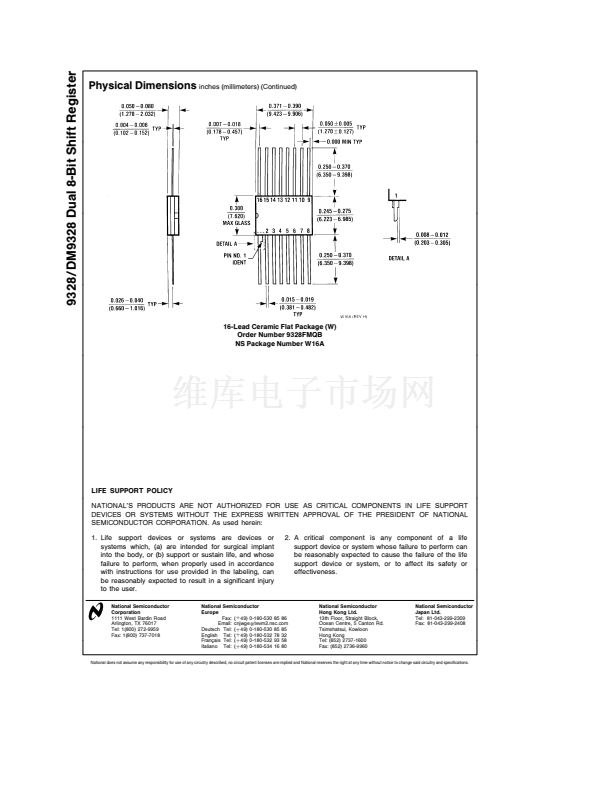

See NS Package Number J16A N16E or W16A
TL F 9793 鈥?2
V
CC
e
Pin 16
GND
e
Pin 8
Pin Names
S
D0 D1
CP
Description
Data Select Input
Data Inputs
Clock Pulse Input (Active HIGH)
Common (Pin 9)
Separate (Pins 7 and 10)
Master Reset Input (Active LOW)
Last Stage Output
Complementary Output
MR
Q7
Q7
C
1995 National Semiconductor Corporation
TL F 9793
RRD-B30M115 Printed in U S A
