9321 DM9321 Dual 1-of-4 Decoder

June 1989

9321 DM9321

Dual 1-of-4 Decoder

General Description

The 9321 consists of two independent multipurpose decod-

ers each designed to accept two inputs and provide four

mutually exclusive outputs In addition an active LOW en-

able input which gives demultiplexing capability is provided

for each decoder

Features

Y

Y

Y

Y

Multifunction capability

Mutually exclusive outputs

Demultiplexing capability

Active low enable for each decoder

Connection Diagram

Dual-In-Line Package

Logic Symbol

TL F 10209 鈥?2

TL F 10209 鈥?1

V

CC

e

Pin 16

GND

e

Pin 8

Order Number 9321DMQB 9321FMQB or DM9321N

See NS Package Number J16A N16E or W16A

Pin Names

Ea Eb

A0a A1a A0b A1b

O0a鈥揙3a

O0b鈥揙3b

Description

Enable Inputs (Active LOW)

Address Inputs

Decoder Outputs (Active LOW)

(

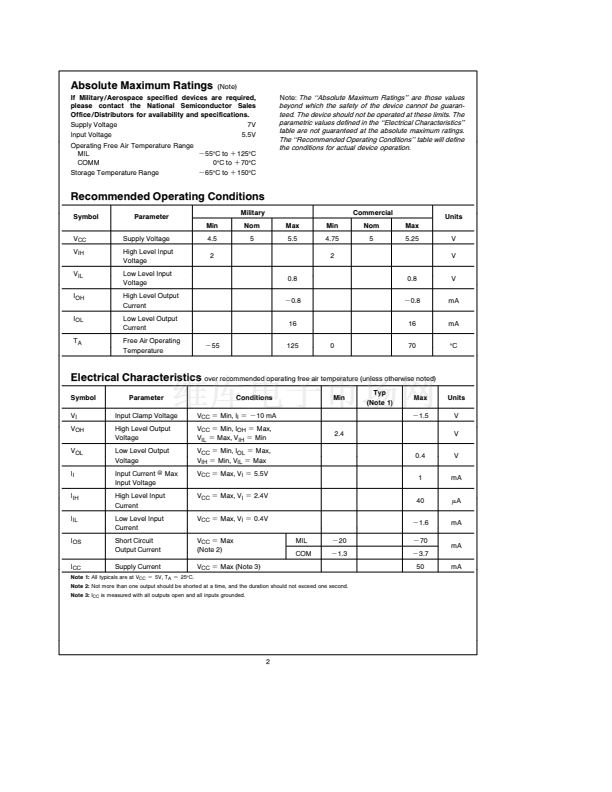

C

1995 National Semiconductor Corporation

TL F 10209

RRD-B30M105 Printed in U S A
