908E624 Datasheet

  • 908E624

  • TRIPLE HIGH-SIDE SWITCH WITH EMBEDDED MCU AND LIN

  • 32頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Freescale Semiconductor
Technical Data
MM908E624
Internal Rev 4.0, 12/2004
Integrated Triple High-Side
Switch with Embedded MCU
and LIN Serial Communication
for Relay Drivers
The 908E624 is an integrated single-package solution that
includes a high-performance HC08 microcontroller with a
SMARTMOS
TM
analog control IC. The HC08 includes flash memory,
a timer, enhanced serial communications interface (ESCI), an
analog-to-digital converter (ADC), serial peripheral interface (SPI)
(only internal), and an internal clock generator module. The analog
control die provides three high-side outputs with diagnostic functions,
voltage regulator, watchdog, operational amplifier, and local
interconnect network (LIN) physical layer.
The single-package solution, together with LIN, provides optimal
application performance adjustments and space-saving PCB design.
It is well suited for the control of automotive high-current motors
applications using relays (e.g., window lifts, fans, and sun roofs).
Features
鈥?High-Performance M68HC908EY16 Core
鈥?16 K Bytes of On-Chip Flash Memory
鈥?512 Bytes of RAM
鈥?Internal Clock Generator Module
鈥?Two 16-Bit, 2-Channel Timers
鈥?10-Bit Analog-to-Digital Converter (ADC)
鈥?LIN Physical Layer Interface
鈥?Low Dropout Voltage Regulator
鈥?Three High-Side Outputs
鈥?Two Wake-Up Inputs
鈥?16 Microcontroller I/Os
VBAT
VSUP1
LIN
Interface
+5.0 V
LIN
VREFH
VDDA
EVDD
VCC
VDD
VREFL
VSSA
EVSS
AGND
GND
RxD
PTE1/RxD
RSTB
RSTB_A
IRQB
IRQB_A
PTD0/TACH0
PWMin
Microcontroller
Ports
PTA0鈭?
PTB1;3鈭?
PTC2鈭?
PTD1/TACH1
HS2
+E
VSUP2
HS3
L1
L2
908E624
TRIPLE HIGH-SIDE SWITCH WITH
EMBEDDED MCU AND LIN
DW SUFFIX
98ASA99294D
54-TERMINAL SOICW
ORDERING INFORMATION
Device
MM908E624ACDWB/R
Temperature
Range (T
A
)
-40擄C to 85擄C
Package
54 SOICW
HS1
M
To Microcontroller A/D Channel
OUT
-E
WDCONF
Figure 1. 908E624 Simplified Application Diagram

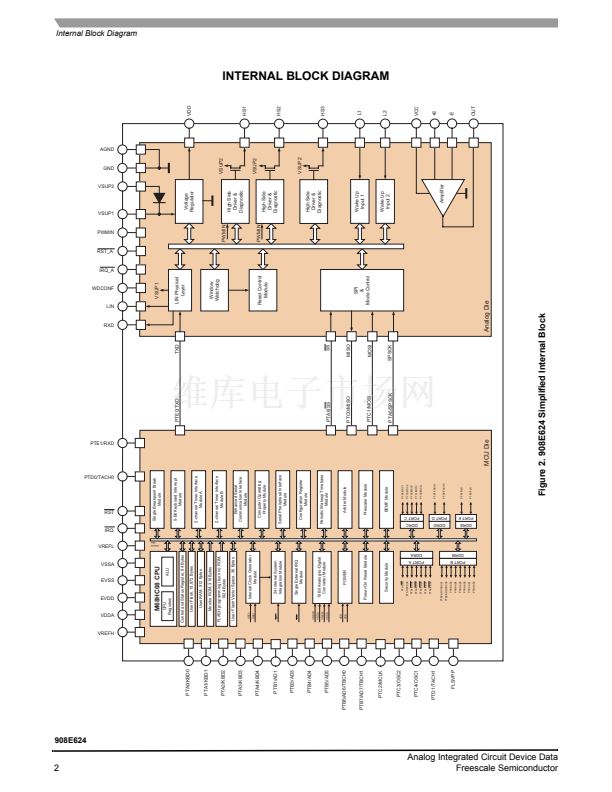

This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
漏 Freescale Semiconductor, Inc., 2004. All rights reserved.
