8XC196MH Datasheet

  • 8XC196MH

  • 8XC196MH INDUSTRIAL MOTOR CONTROL CHMOS MICROCONTROLLER

  • 546.95KB

  • 41頁

  • INTEL   INTEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

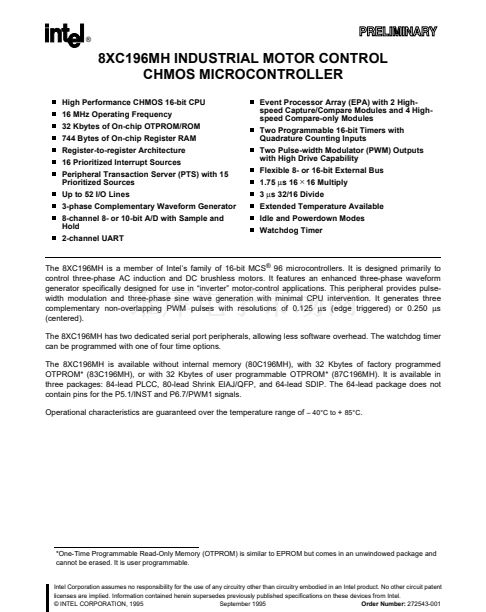

8XC196MH INDUSTRIAL MOTOR CONTROL
CHMOS MICROCONTROLLER
n
n
n
n
n
n
n
n
n
n
n
High Performance CHMOS 16-bit CPU
16 MHz Operating Frequency
32 Kbytes of On-chip OTPROM/ROM
744 Bytes of On-chip Register RAM
Register-to-register Architecture
16 Prioritized Interrupt Sources
Peripheral Transaction Server (PTS) with 15
Prioritized Sources
Up to 52 I/O Lines
3-phase Complementary Waveform Generator

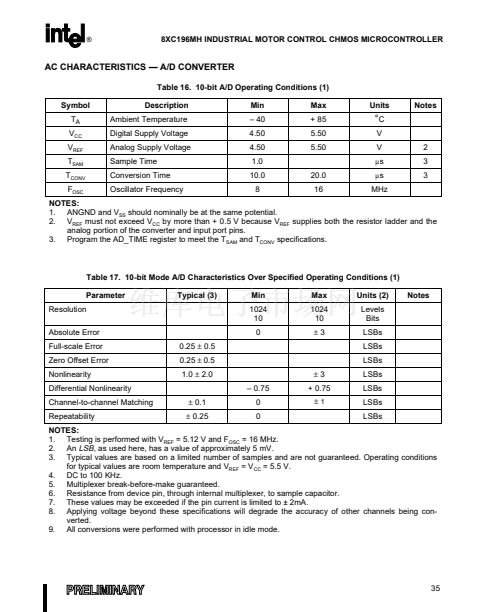

8-channel 8- or 10-bit A/D with Sample and
Hold
2-channel UART
n
n
n
n
n
n
n
n
n
Event Processor Array (EPA) with 2 High-
speed Capture/Compare Modules and 4 High-
speed Compare-only Modules
Two Programmable 16-bit Timers with
Quadrature Counting Inputs
Two Pulse-width Modulator (PWM) Outputs
with High Drive Capability
Flexible 8- or 16-bit External Bus
1.75
碌s
16
脳
16 Multiply
3
碌s
32/16 Divide
Extended Temperature Available
Idle and Powerdown Modes
Watchdog Timer
The 8XC196MH is a member of Intel鈥檚 family of 16-bit MCS
廬
96 microcontrollers. It is designed primarily to
control three-phase AC induction and DC brushless motors. It features an enhanced three-phase waveform
generator specifically designed for use in 鈥渋nverter鈥?motor-control applications. This peripheral provides pulse-
width modulation and three-phase sine wave generation with minimal CPU intervention. It generates three
complementary non-overlapping PWM pulses with resolutions of 0.125
碌s
(edge triggered) or 0.250
碌s
(centered).

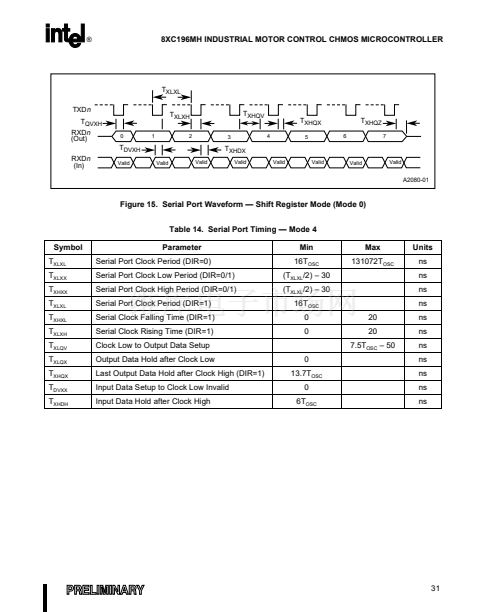

The 8XC196MH has two dedicated serial port peripherals, allowing less software overhead. The watchdog timer
can be programmed with one of four time options.
The 8XC196MH is available without internal memory (80C196MH), with 32 Kbytes of factory programmed
OTPROM* (83C196MH), or with 32 Kbytes of user programmable OTPROM* (87C196MH). It is available in

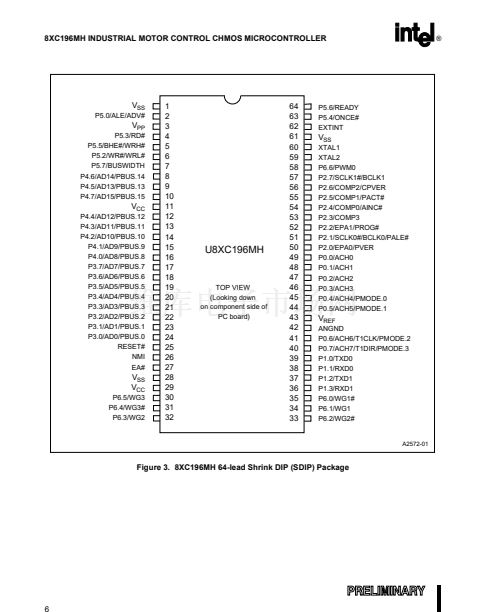

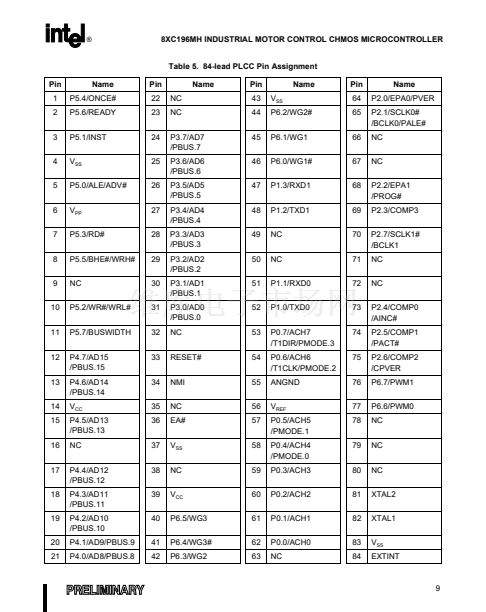

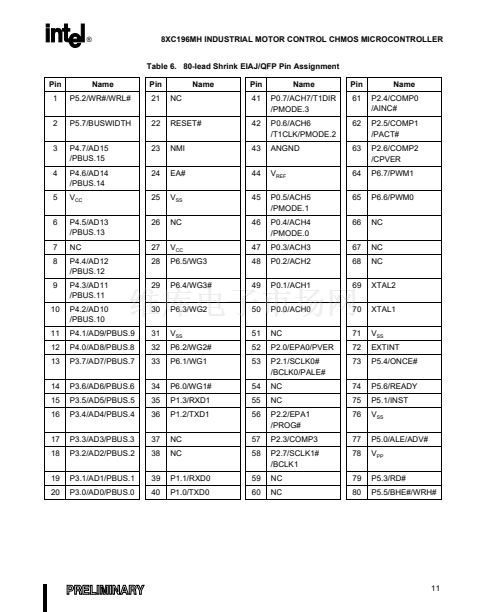

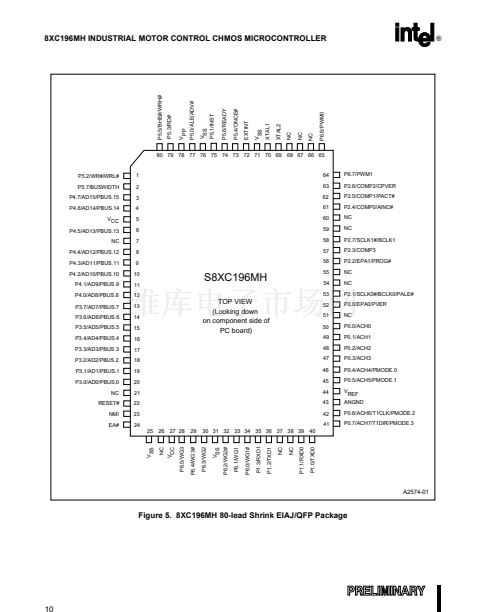

three packages: 84-lead PLCC, 80-lead Shrink EIAJ/QFP, and 64-lead SDIP. The 64-lead package does not
contain pins for the P5.1/INST and P6.7/PWM1 signals.

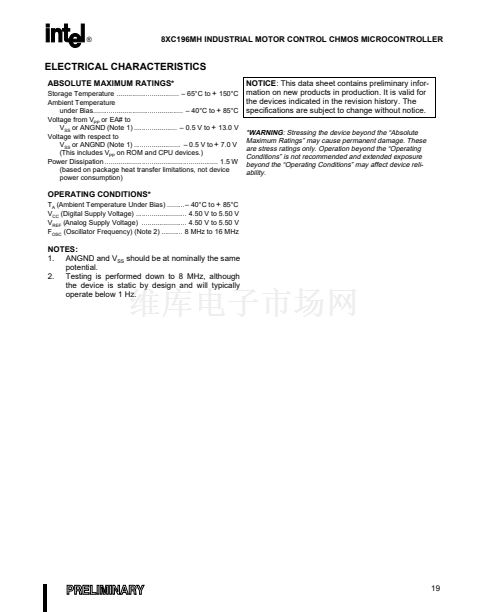

Operational characteristics are guaranteed over the temperature range of
鈥?40擄C to
+
85擄C
.
*One-Time Programmable Read-Only Memory (OTPROM) is similar to EPROM but comes in an unwindowed package and
cannot be erased. It is user programmable.
Intel Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in an Intel product. No other circuit patent
licenses are implied. Information contained herein supersedes previously published specifications on these devices from Intel.
漏 INTEL CORPORATION, 1995
September 1995
Order Number:
272543-001
