8EWS08STRL Datasheet

  • 8EWS08STRL

  • SURFACE MOUNTABLE INPUT RECTIFIER DIODE

  • 7頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

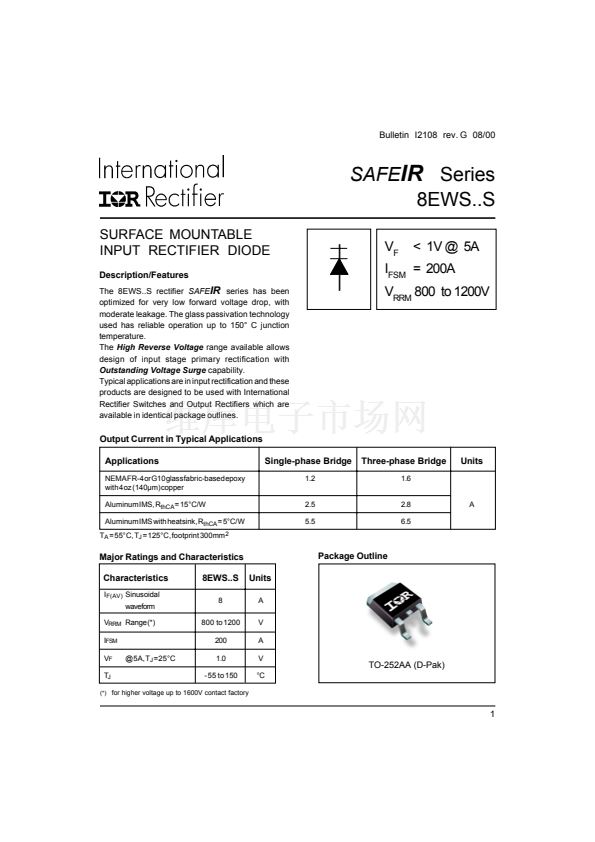

Bulletin I2108 rev. G 08/00
SAFE
IR
Series
8EWS..S
SURFACE MOUNTABLE
INPUT RECTIFIER DIODE
Description/Features
The 8EWS..S rectifier
SAFE
IR
series has been
optimized for very low forward voltage drop, with
moderate leakage. The glass passivation technology
used has reliable operation up to 150擄 C junction
temperature.
The
High Reverse Voltage
range available allows
design of input stage primary rectification with
Outstanding Voltage Surge
capability.
Typical applications are in input rectification and these
products are designed to be used with International
Rectifier Switches and Output Rectifiers which are
available in identical package outlines.
V
F
< 1V @ 5A
I
FSM
= 200A
V
RRM
800 to 1200V
Output Current in Typical Applications
Applications
NEMA FR-4 or G10 glass fabric-based epoxy
with 4 oz (140碌m) copper
Aluminum IMS, R
thCA
= 15擄C/W
Aluminum IMS with heatsink, R
thCA
= 5擄C/W
T
A
= 55擄C, T
J
= 125擄C, footprint 300mm
2
Single-phase Bridge
1.2
2.5
5.5
Three-phase Bridge
1.6
2.8
6.5
Units
A
Major Ratings and Characteristics
Characteristics
I
F(AV)
Sinusoidal
waveform
V
RRM
Range (*)
I
FSM
V
F
T
J
@ 5A, T
J
= 25擄C
Package Outline
Units
A
V
A
V
擄C
8EWS..S
8
800 to 1200
200
1.0
- 55 to 150
TO-252AA (D-Pak)
(*)
for higher voltage up to 1600V contact factory
1

8EWS08STRL 產品屬性

  • 3,000

  • 分離式半導體產品

  • 單二極管/整流器

  • -

  • 標準

  • 800V

  • 8A

  • 1.1V @ 8A

  • 標準恢復 >500ns，> 200mA（Io）

  • -

  • 50µA @ 800V

  • -

  • 表面貼裝

  • TO-252-3，DPak（2 引線+接片），SC-63

  • D-Pak

  • 帶卷 (TR)

  • VS-8EWS08STRLVS-8EWS08STRL-NDVS8EWS08STRLVS8EWS08STRL-ND
