8ETH03 Datasheet

  • 8ETH03

  • Ultrafast Rectifier

  • 8頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

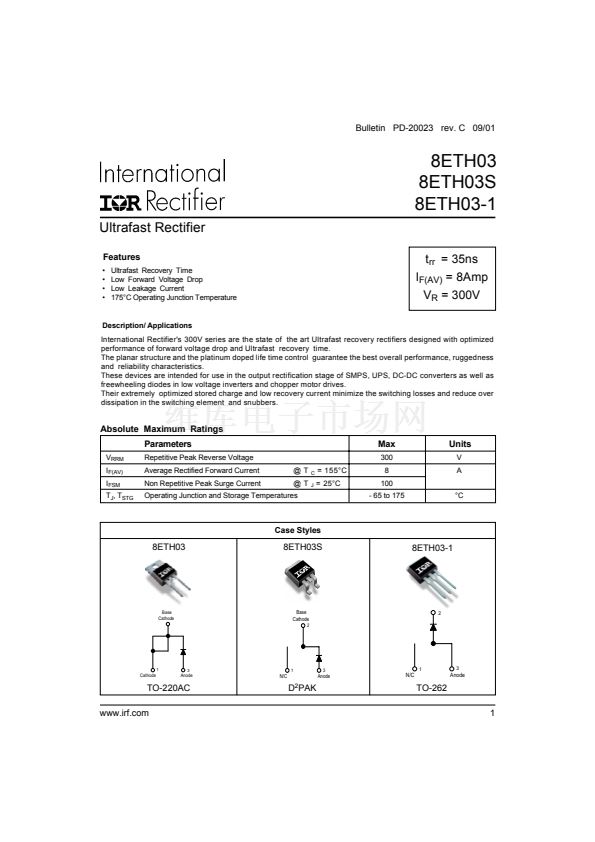

Bulletin PD-20023 rev. C 09/01
8ETH03
8ETH03S
8ETH03-1
Ultrafast Rectifier
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultrafast Recovery Time
Low Forward Voltage Drop
Low Leakage Current
175擄C Operating Junction Temperature
t
rr
= 35ns
I
F(AV)
= 8Amp
V
R
= 300V
Description/ Applications
International Rectifier's 300V series are the state of the art Ultrafast recovery rectifiers designed with optimized
performance of forward voltage drop and Ultrafast recovery time.
The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness
and reliability characteristics.
These devices are intended for use in the output rectification stage of SMPS, UPS, DC-DC converters as well as
freewheeling diodes in low voltage inverters and chopper motor drives.
Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
Absolute Maximum Ratings
Parameters
V
RRM
I
F(AV)
I
FSM
T
J
, T
STG
Repetitive Peak Reverse Voltage
Average Rectified Forward Current
Non Repetitive Peak Surge Current
@T
@T
C
J
Max
300
= 155擄C
= 25擄C
8
100
- 65 to 175
Units
V
A
擄C
Operating Junction and Storage Temperatures

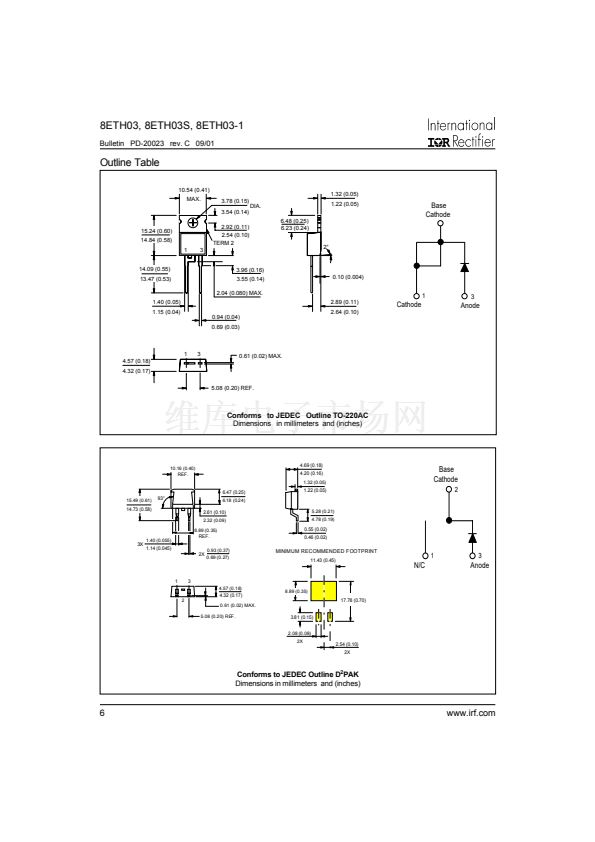

Case Styles
8ETH03
8ETH03S
8ETH03-1
Base
Cathode
Base
Cathode
2
2
1
3
1
3
1
3
Cathode
Anode
N/C
Anode
N/C
Anode
TO-220AC
www.irf.com
D
2
PAK
TO-262
1

8ETH03 產品屬性

  • 1,000

  • 分離式半導體產品

  • 單二極管/整流器

  • FRED Pt™

  • 標準

  • 300V

  • 8A

  • 1.25V @ 8A

  • 快速恢復 = 200mA（Io）

  • 35ns

  • 20µA @ 300V

  • -

  • 通孔

  • TO-220-2 熔斷式，TO-220AC

  • TO-220AC

  • 管件

  • *8ETH03VS-8ETH03VS-8ETH03-NDVS8ETH03VS8ETH03-ND
