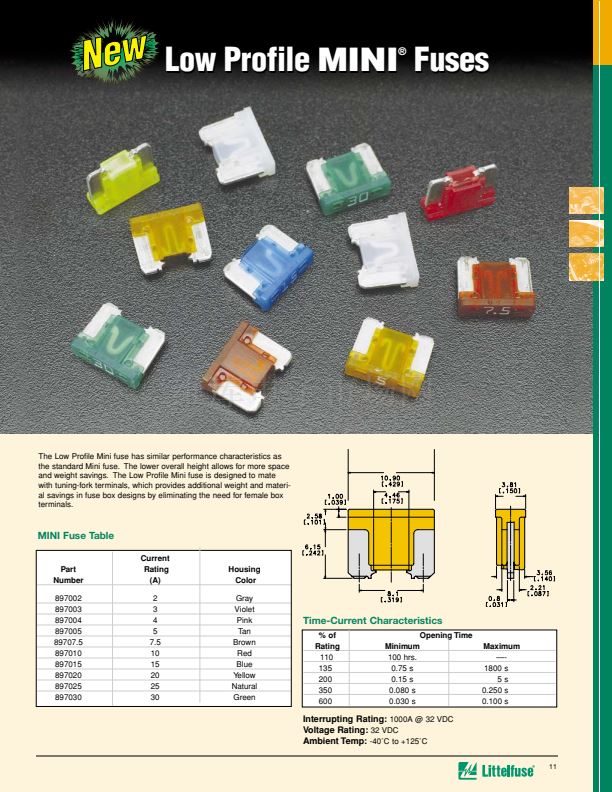

New
Low Profile
MINI
Fuses
廬
The Low Profile Mini fuse has similar performance characteristics as
the standard Mini fuse. The lower overall height allows for more space
and weight savings. The Low Profile Mini fuse is designed to mate
with tuning-fork terminals, which provides additional weight and materi-
al savings in fuse box designs by eliminating the need for female box
terminals.
MINI Fuse Table
Current
Rating
(A)
2
3
4
5
7.5
10
15
20
25
30
Part
Number
897002
897003
897004
897005
89707.5
897010
897015
897020
897025
897030
Housing
Color
Gray
Violet
Pink
Tan
Brown
Red
Blue
Yellow
Natural
Green
Time-Current Characteristics
% of
Rating
110
135
200
350
600
Opening Time
Minimum
100 hrs.
0.75 s
0.15 s
0.080 s
0.030 s
Maximum
鈥?
1800 s
5s
0.250 s
0.100 s
Interrupting Rating:
1000A @ 32 VDC
Voltage Rating:
32 VDC
Ambient Temp:
-40藲C to +125藲C
