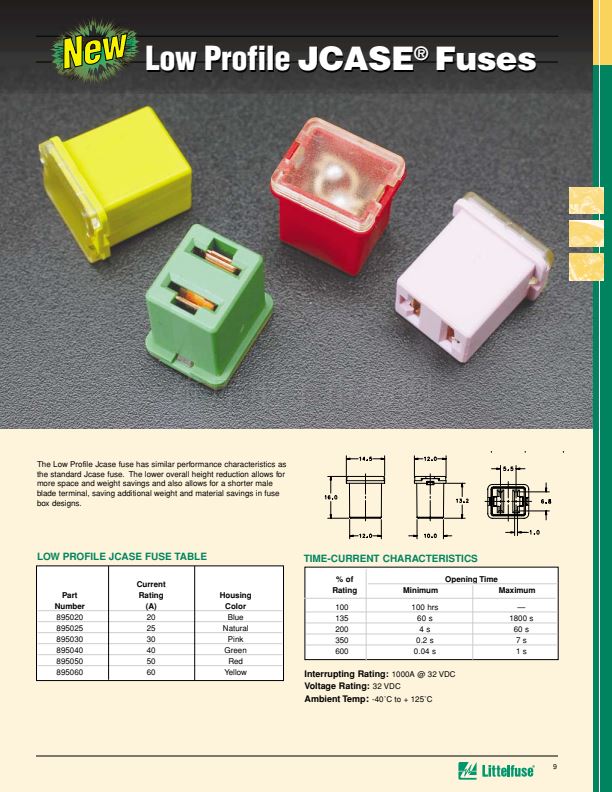

ew
Low Profile
JCASE
廬
Fuses
N
The Low Profile Jcase fuse has similar performance characteristics as
the standard Jcase fuse. The lower overall height reduction allows for
more space and weight savings and also allows for a shorter male
blade terminal, saving additional weight and material savings in fuse
box designs.
LOW PROFILE JCASE FUSE TABLE
Current
Rating
(A)
20
25
30
40
50
60
TIME-CURRENT CHARACTERISTICS
% of
Rating
100
135
200
350
600
Opening Time
Minimum
100 hrs
60 s
4s
0.2 s
0.04 s
Maximum
鈥?/div>
1800 s
60 s
7s
1s
Part
Number
895020
895025
895030
895040
895050
895060
Housing
Color
Blue
Natural
Pink
Green
Red
Yellow
Interrupting Rating:
1000A @ 32 VDC
Voltage Rating:
32 VDC
Ambient Temp
:
-40藲C to + 125藲C
