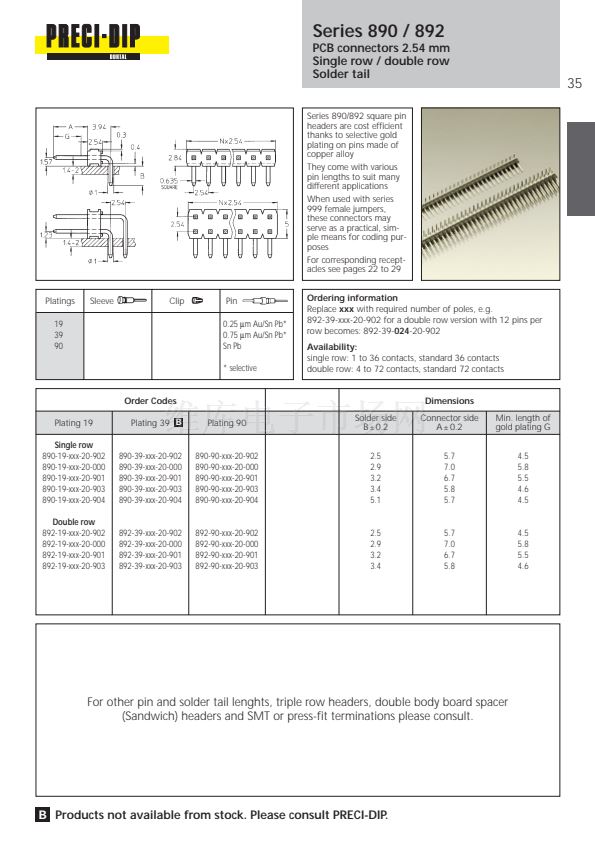

Series 890 / 892
PCB connectors 2.54 mm
Single row / double row
Solder tail
35
Series 890/892 square pin
headers are cost efficient
thanks to selective gold
plating on pins made of
copper alloy
They come with various
pin lengths to suit many
different applications
When used with series
999 female jumpers,
these connectors may
serve as a practical, sim-
ple means for coding pur-
poses
For corresponding recept-
acles see pages 22 to 29
Ordering information
Replace
xxx
with required number of poles, e.g.
892-39-xxx-20-902 for a double row version with 12 pins per
row becomes: 892-39-024-20-902
Availability:
single row: 1 to 36 contacts, standard 36 contacts
double row: 4 to 72 contacts, standard 72 contacts
Platings
19
39
90
Sleeve
Clip
Pin
0.25
碌m
Au/Sn Pb*
0.75
碌m
Au/Sn Pb*
Sn Pb
* selective
Order Codes
Plating 19
Single row
890-19-xxx-20-902
890-19-xxx-20-000
890-19-xxx-20-901
890-19-xxx-20-903
890-19-xxx-20-904
Double row
892-19-xxx-20-902
892-19-xxx-20-000
892-19-xxx-20-901
892-19-xxx-20-903
Plating 39
B
Plating 90
Solder side
B 鹵 0.2
2.5
2.9
3.2
3.4
5.1
Dimensions
Connector side
A 鹵 0.2
5.7
7.0
6.7
5.8
5.7
Min. length of
gold plating G
4.5
5.8
5.5
4.6
4.5
890-39-xxx-20-902
890-39-xxx-20-000
890-39-xxx-20-901
890-39-xxx-20-903
890-39-xxx-20-904
890-90-xxx-20-902
890-90-xxx-20-000
890-90-xxx-20-901
890-90-xxx-20-903
890-90-xxx-20-904
892-39-xxx-20-902
892-39-xxx-20-000
892-39-xxx-20-901
892-39-xxx-20-903
892-90-xxx-20-902
892-90-xxx-20-000
892-90-xxx-20-901
892-90-xxx-20-903
2.5
2.9
3.2
3.4
5.7
7.0
6.7
5.8
4.5
5.8
5.5
4.6
For other pin and solder tail lenghts, triple row headers, double body board spacer
(Sandwich) headers and SMT or press-fit terminations please consult.
B
Products not available from stock. Please consult PRECI-DIP.
