Transceiver
Solutions
Alaska
廬
X

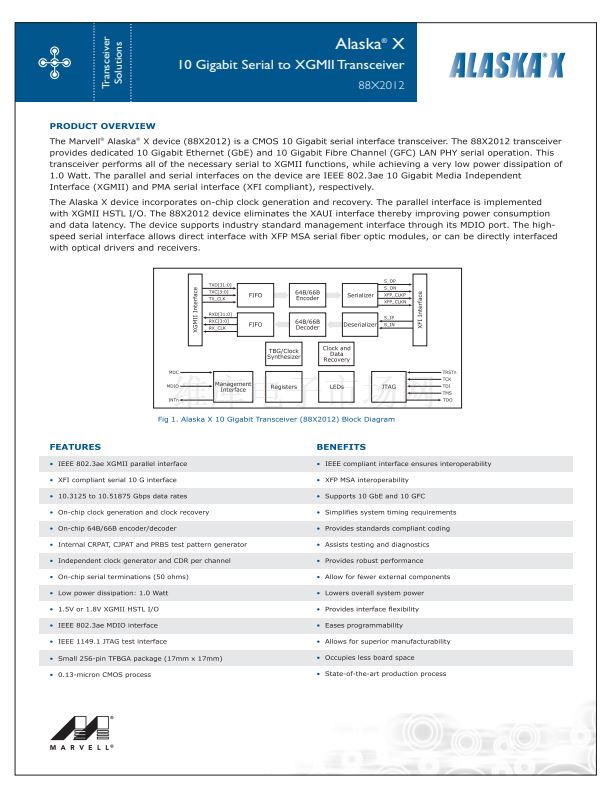

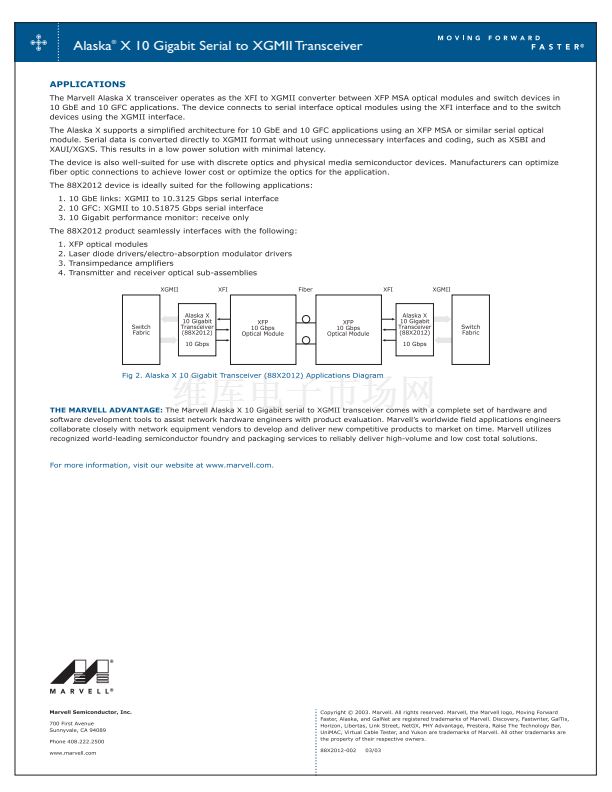

10 Gigabit Serial to XGMII Transceiver
88X2012
The Marvell
簍
Alaska
簍
X device (88X2012) is a CMOS 10 Gigabit serial interface transceiver. The 88X2012 transceiver
provides dedicated 10 Gigabit Ethernet (GbE) and 10 Gigabit Fibre Channel (GFC) LAN PHY serial operation. This
transceiver performs all of the necessary serial to XGMII functions, while achieving a very low power dissipation of
1.0 Watt. The parallel and serial interfaces on the device are IEEE 802.3ae 10 Gigabit Media Independent
Interface (XGMII) and PMA serial interface (XFI compliant), respectively.
The Alaska X device incorporates on-chip clock generation and recovery. The parallel interface is implemented
with XGMII HSTL I/O. The 88X2012 device eliminates the XAUI interface thereby improving power consumption
and data latency. The device supports industry standard management interface through its MDIO port. The high-
speed serial interface allows direct interface with XFP MSA serial fiber optic modules, or can be directly interfaced
with optical drivers and receivers.
XGMII Interface
XFI Interface
TRSTn
TCK
TDI
TMS
TDO
TXD[31:0]
TXC[3:0]
TX_CLK
RXD[31:0]
RXC[3:0]
RX_CLK
PRODUCT OVERVIEW
FIFO
FIFO
64B/66B
Encoder
64B/66B
Decoder
TBG/Clock
Synthesizer
Serializer
Deserializer
Clock and
Data
Recovery
LEDs
S_OP
S_ON
XFP_CLKP
XFP_CLKN
S_IP
S_IN
MDC
MDIO
INTn
Management
Interface
Registers
JTAG
Fig 1. Alaska X 10 Gigabit Transceiver (88X2012) Block Diagram
FEATURES
樓
IEEE 802.3ae XGMII parallel interface
樓
XFI compliant serial 10 G interface
樓
10.3125 to 10.51875 Gbps data rates
樓
On-chip clock generation and clock recovery
樓
On-chip 64B/66B encoder/decoder
樓
Internal CRPAT, CJPAT and PRBS test pattern generator
樓
Independent clock generator and CDR per channel
樓
On-chip serial terminations (50 ohms)
樓
Low power dissipation: 1.0 Watt
樓
1.5V or 1.8V XGMII HSTL I/O
樓
IEEE 802.3ae MDIO interface
樓
IEEE 1149.1 JTAG test interface
樓
Small 256-pin TFBGA package (17mm x 17mm)
樓
0.13-micron CMOS process
BENEFITS
樓
IEEE compliant interface ensures interoperability
樓
XFP MSA interoperability
樓
Supports 10 GbE and 10 GFC
樓
Simplifies system timing requirements
樓
Provides standards compliant coding
樓
Assists testing and diagnostics
樓
Provides robust performance
樓
Allow for fewer external components
樓
Lowers overall system power
樓
Provides interface flexibility
樓
Eases programmability
樓
Allows for superior manufacturability
樓
Occupies less board space
樓
State-of-the-art production process
