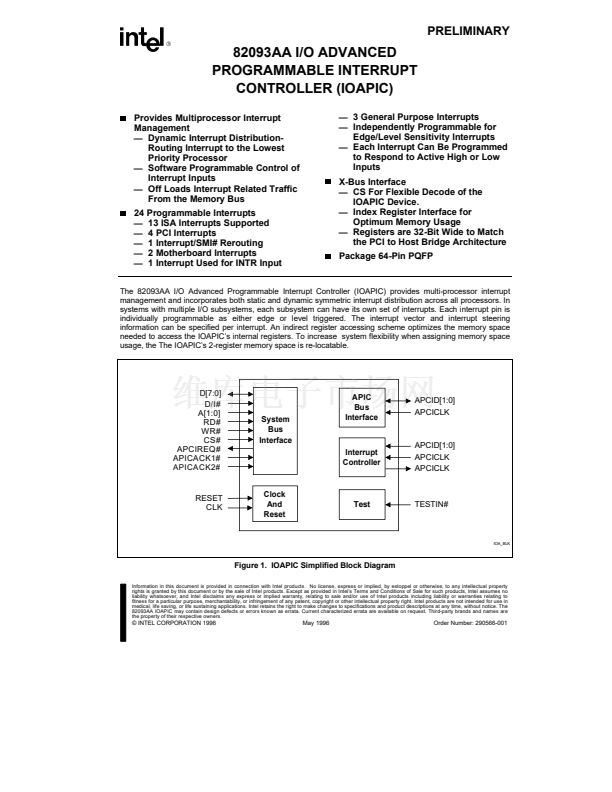

PRELIMINARY
82093AA I/O ADVANCED
PROGRAMMABLE INTERRUPT
CONTROLLER (IOAPIC)
Provides Multiprocessor Interrupt
Management
錚?/div>
Dynamic Interrupt Distribution-
Routing Interrupt to the Lowest
Priority Processor
錚?/div>
Software Programmable Control of
Interrupt Inputs
錚?/div>
Off Loads Interrupt Related Traffic
From the Memory Bus
24 Programmable Interrupts
錚?/div>
13 ISA Interrupts Supported
錚?/div>
4 PCI Interrupts
錚?/div>
1 Interrupt/SMI# Rerouting
錚?/div>
2 Motherboard Interrupts
錚?/div>
1 Interrupt Used for INTR Input
錚?/div>
3 General Purpose Interrupts
錚?/div>
Independently Programmable for
Edge/Level Sensitivity Interrupts
錚?/div>
Each Interrupt Can Be Programmed
to Respond to Active High or Low
Inputs
X-Bus Interface
錚?/div>
CS For Flexible Decode of the
IOAPIC Device.
錚?/div>
Index Register Interface for
Optimum Memory Usage
錚?/div>
Registers are 32-Bit Wide to Match
the PCI to Host Bridge Architecture

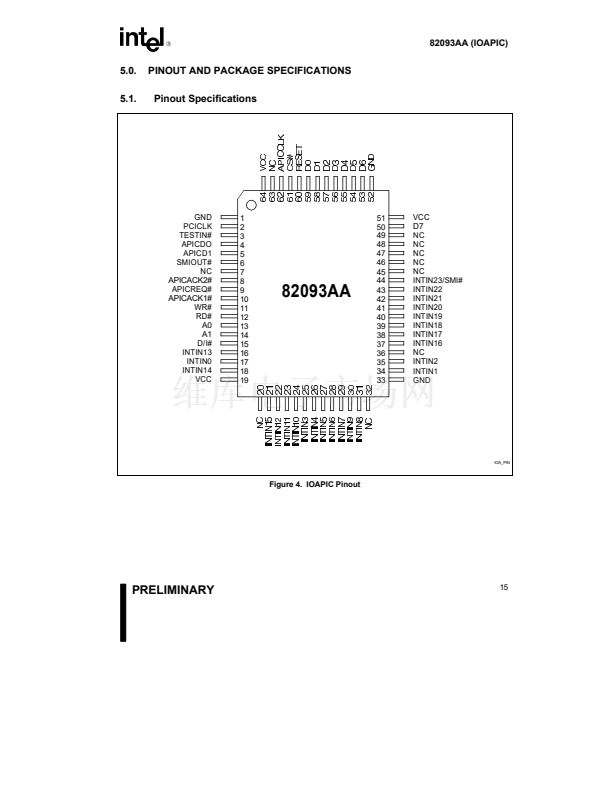

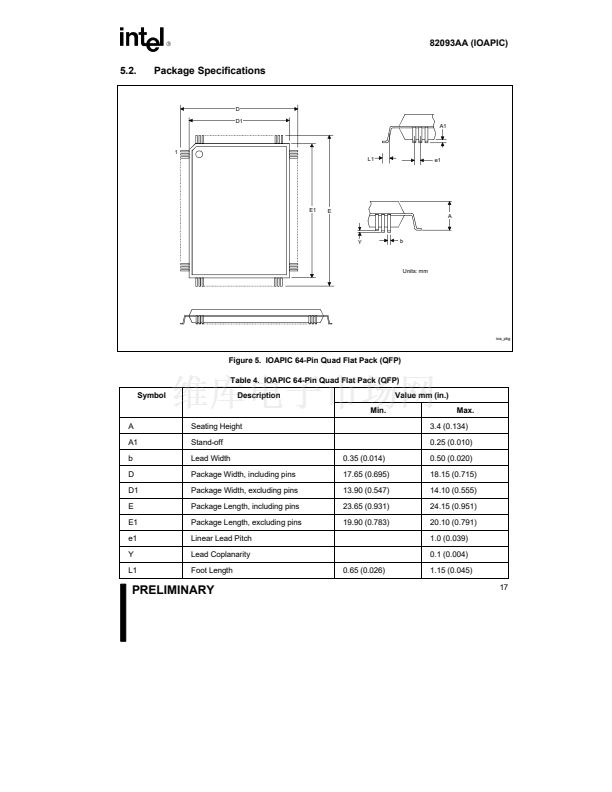

Package 64-Pin PQFP

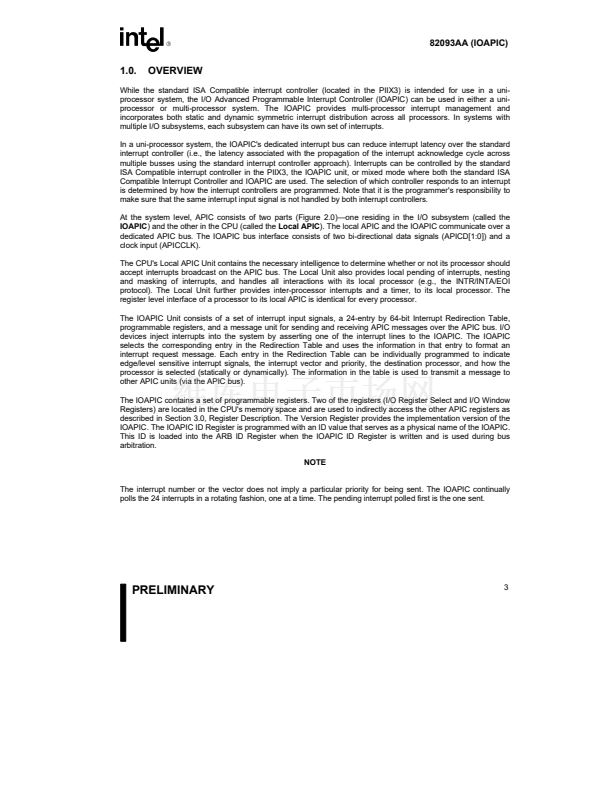

The 82093AA I/O Advanced Programmable Interrupt Controller (IOAPIC) provides multi-processor interrupt
management and incorporates both static and dynamic symmetric interrupt distribution across all processors. In
systems with multiple I/O subsystems, each subsystem can have its own set of interrupts. Each interrupt pin is
individually programmable as either edge or level triggered. The interrupt vector and interrupt steering
information can be specified per interrupt. An indirect register accessing scheme optimizes the memory space
needed to access the IOAPIC鈥檚 internal registers. To increase system flexibility when assigning memory space
usage, the The IOAPIC鈥檚 2-register memory space is re-locatable.
D[7:0]
D/I#
A[1:0]
RD#
WR#
CS#
APCIREQ#
APICACK1#
APICACK2#
System
Bus
Interface
APIC
Bus
Interface
APCID[1:0]
APCICLK
Interrupt
Controller
APCID[1:0]
APCICLK
APCICLK
RESET
CLK
Clock
And
Reset

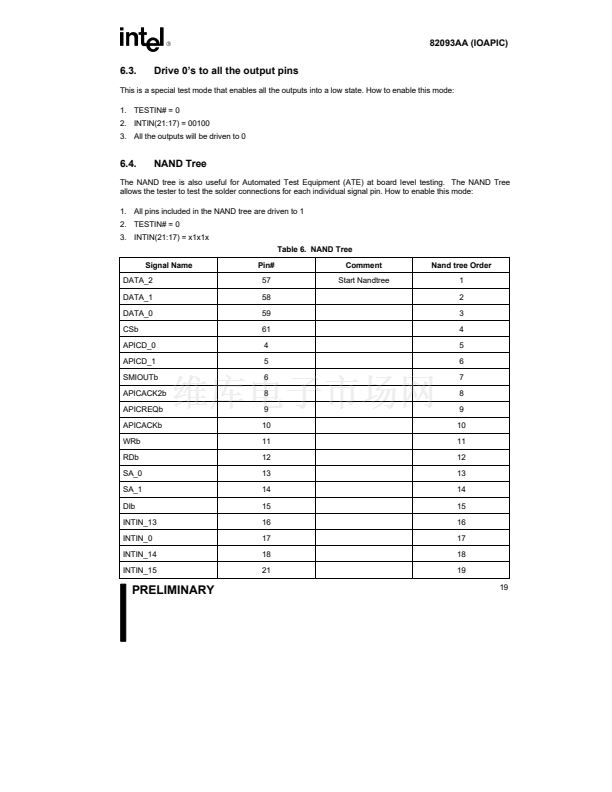

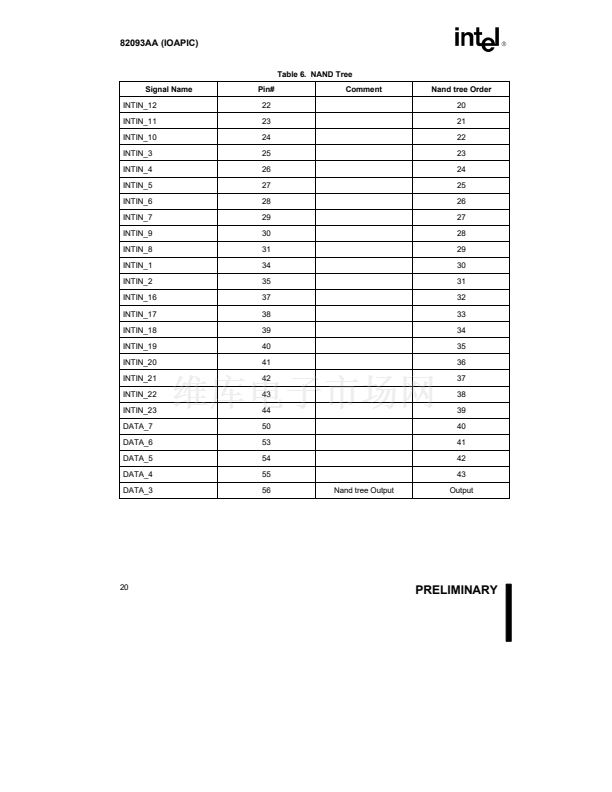

Test
TESTIN#
IOA_BLK
Figure 1. IOAPIC Simplified Block Diagram
Information in this document is provided in connection with Intel products. No license, express or implied, by estoppel or otherwise, to any intellectual property
rights is granted by this document or by the sale of Intel products. Except as provided in Intel鈥檚 Terms and Conditions of Sale for such products, Intel assumes no
liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in
medical, life saving, or life sustaining applications. Intel retains the right to make changes to specifications and product descriptions at any time, without notice. The
82093AA IOAPIC may contain design defects or errors known as errata. Current characterized errata are available on request. Third-party brands and names are
the property of their respective owners.
漏 INTEL CORPORATION 1996
May 1996
Order Number: 290566-001
