818L8D80 Datasheet

  • 818L8D80

  • 2 X 4 8-Pole Filters

  • 13頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

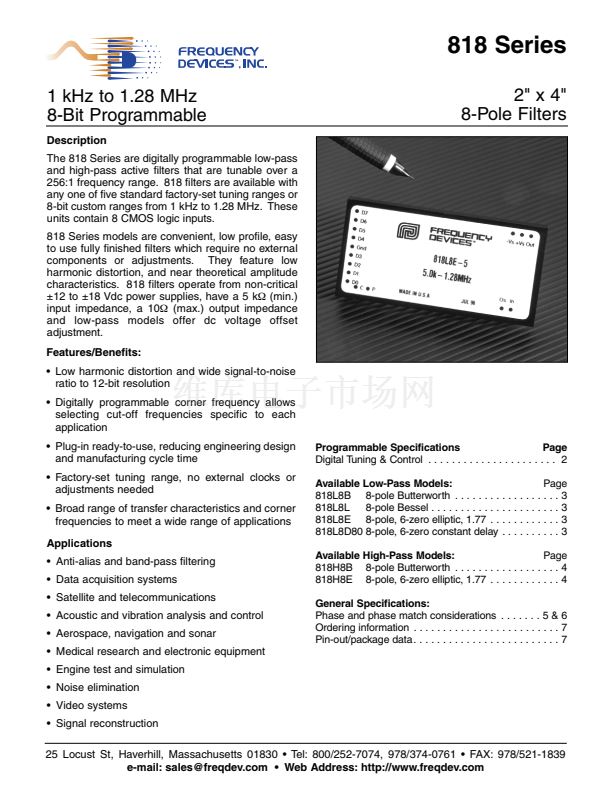

818 Series
1 kHz to 1.28 MHz
8-Bit Programmable
Description
The 818 Series are digitally programmable low-pass
and high-pass active filters that are tunable over a
256:1 frequency range. 818 filters are available with
any one of five standard factory-set tuning ranges or
8-bit custom ranges from 1 kHz to 1.28 MHz. These
units contain 8 CMOS logic inputs.
818 Series models are convenient, low profile, easy
to use fully finished filters which require no external
components or adjustments. They feature low
harmonic distortion, and near theoretical amplitude
characteristics. 818 filters operate from non-critical
鹵12 to 鹵18 Vdc power supplies, have a 5 k鈩?(min.)
input impedance, a 10鈩?(max.) output impedance
and low-pass models offer dc voltage offset
adjustment.
Features/Benefits:
鈥?Low harmonic distortion and wide signal-to-noise
ratio to 12-bit resolution
鈥?Digitally programmable corner frequency allows
selecting cut-off frequencies specific to each
application
鈥?Plug-in ready-to-use, reducing engineering design
and manufacturing cycle time
鈥?Factory-set tuning range, no external clocks or
adjustments needed
鈥?Broad range of transfer characteristics and corner
frequencies to meet a wide range of applications
Applications
鈥?Anti-alias and band-pass filtering
鈥?Data acquisition systems
鈥?Satellite and telecommunications
鈥?Acoustic and vibration analysis and control
鈥?Aerospace, navigation and sonar
鈥?Medical research and electronic equipment
鈥?Engine test and simulation
鈥?Noise elimination
鈥?Video systems
鈥?Signal reconstruction
Available High-Pass Models:
. . . . . . . . . . . . . .
Page

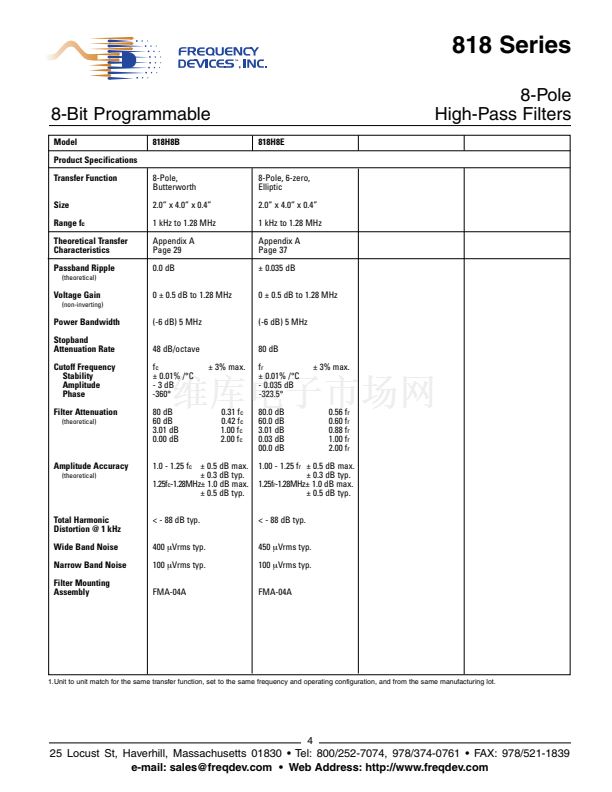

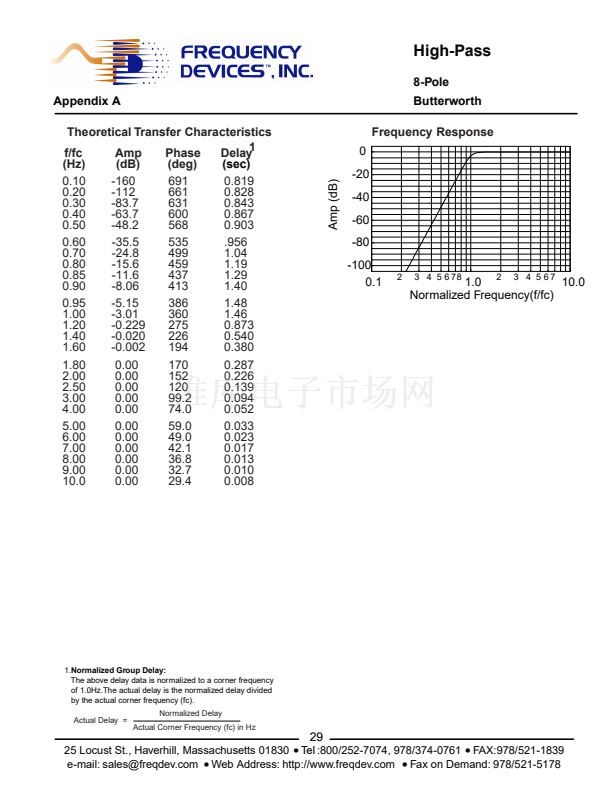

818H8B 8-pole Butterworth . . . . . . . . . . . . . . . . . . 4

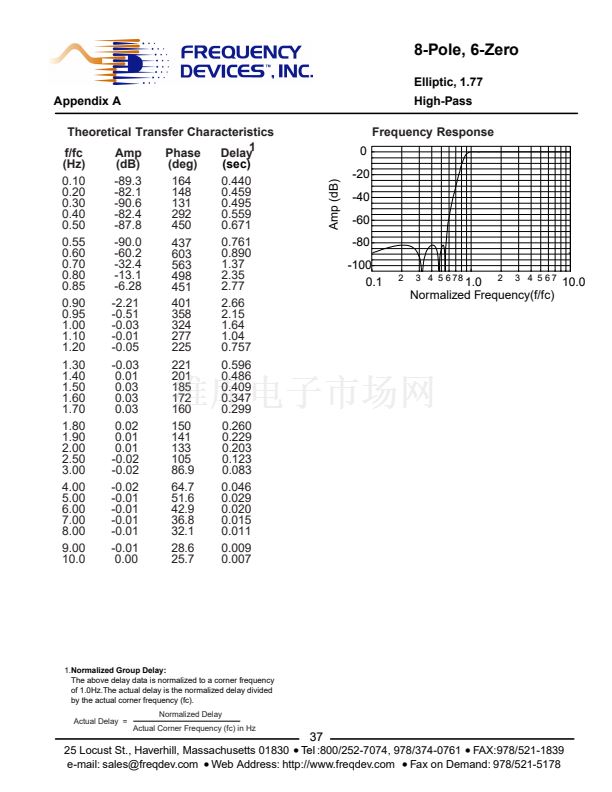

818H8E 8-pole, 6-zero elliptic, 1.77 . . . . . . . . . . . . 4
General Specifications:

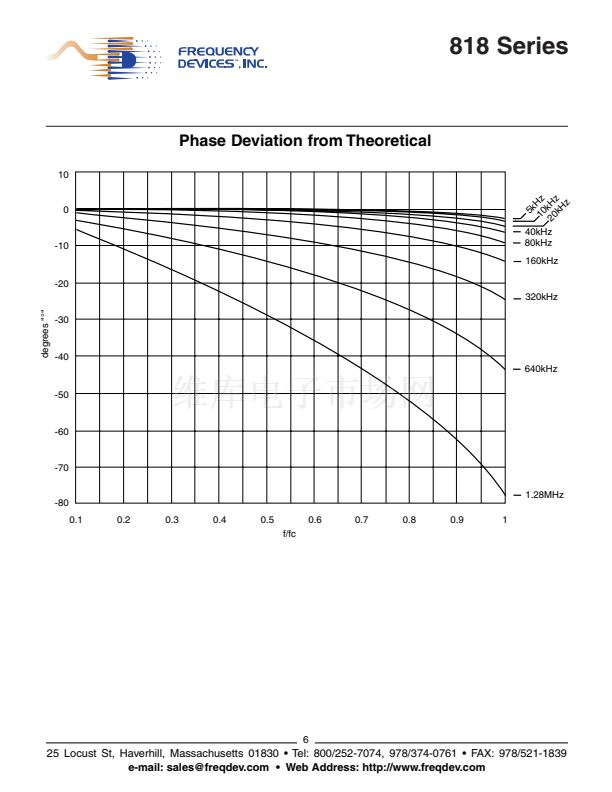

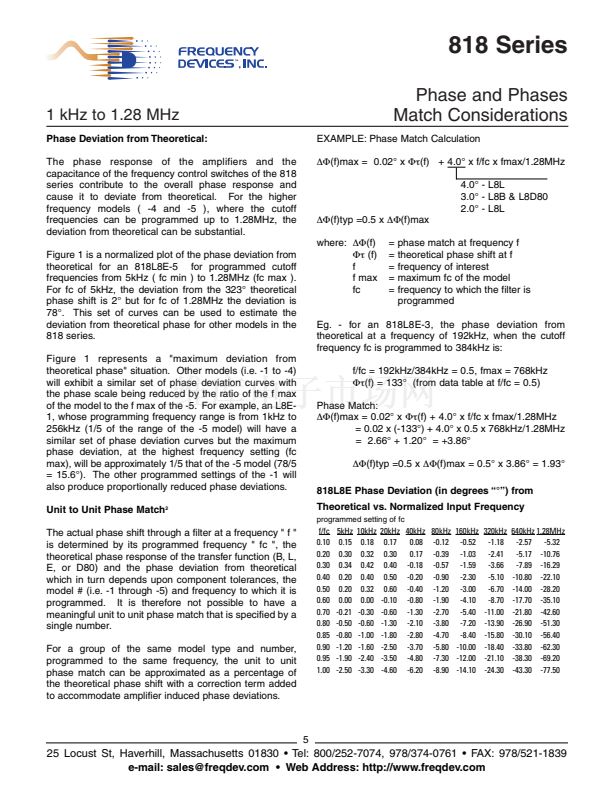

Phase and phase match considerations . . . . . . . 5 & 6

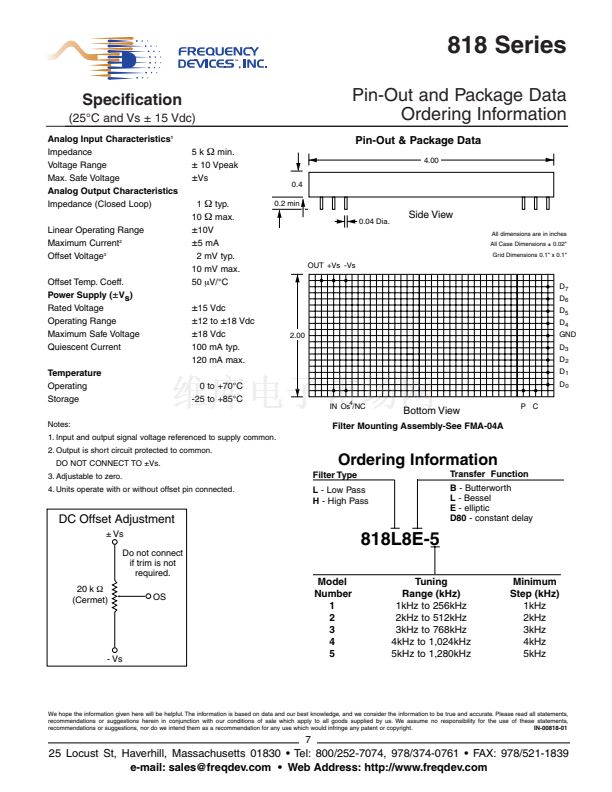

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pin-out/package data. . . . . . . . . . . . . . . . . . . . . . . . . 7
Programmable Specifications.
. . . . . . . . . . . . .
Page

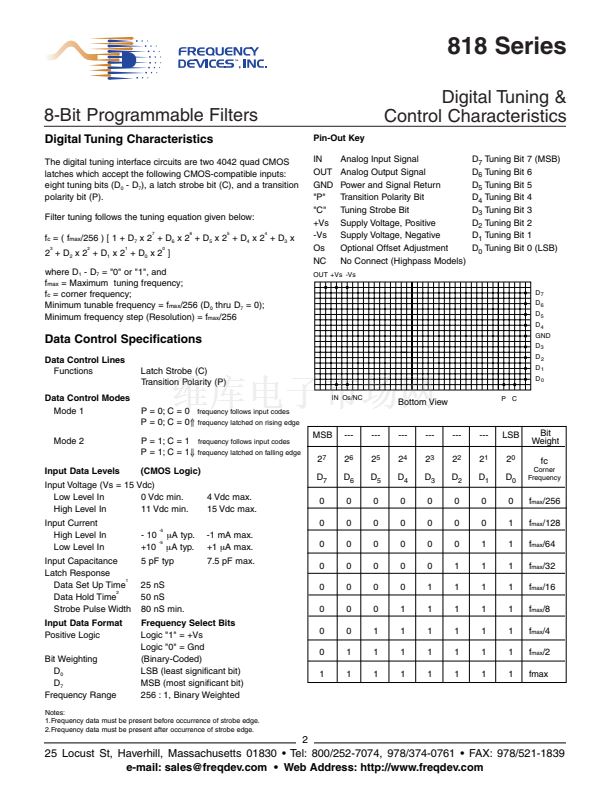

Digital Tuning & Control . . . . . . . . . . . . . . . . . . . . . . 2

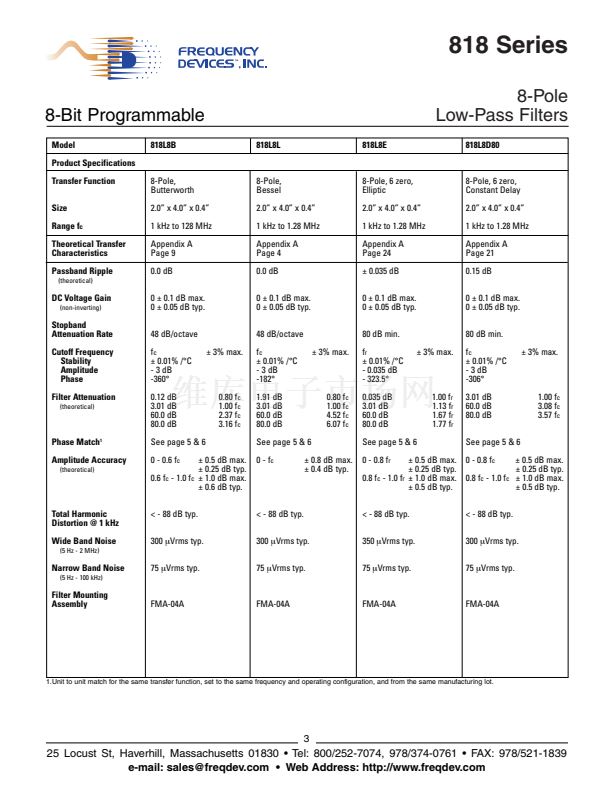

Available Low-Pass Models:
. . . . . . . . . . . . . . .
Page

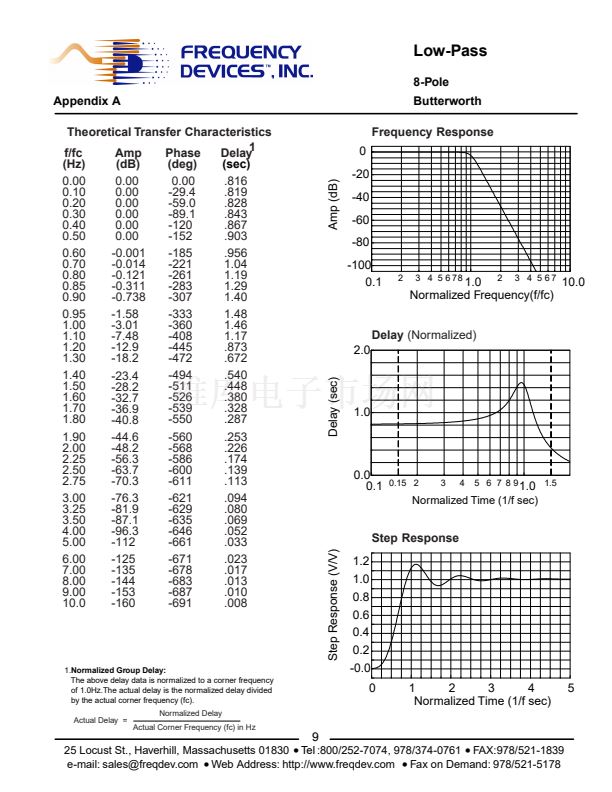

818L8B 8-pole Butterworth . . . . . . . . . . . . . . . . . . 3
818L8L
8-pole Bessel . . . . . . . . . . . . . . . . . . . . . . 3

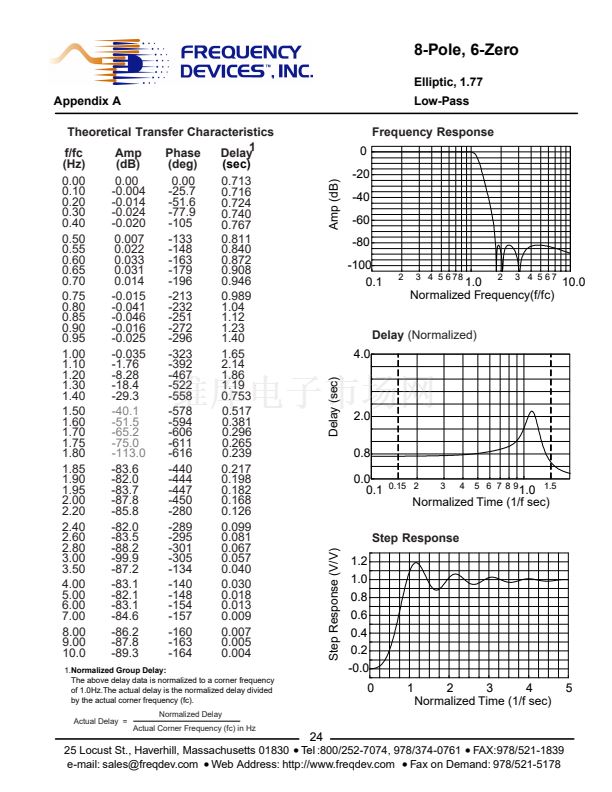

818L8E 8-pole, 6-zero elliptic, 1.77 . . . . . . . . . . . . 3

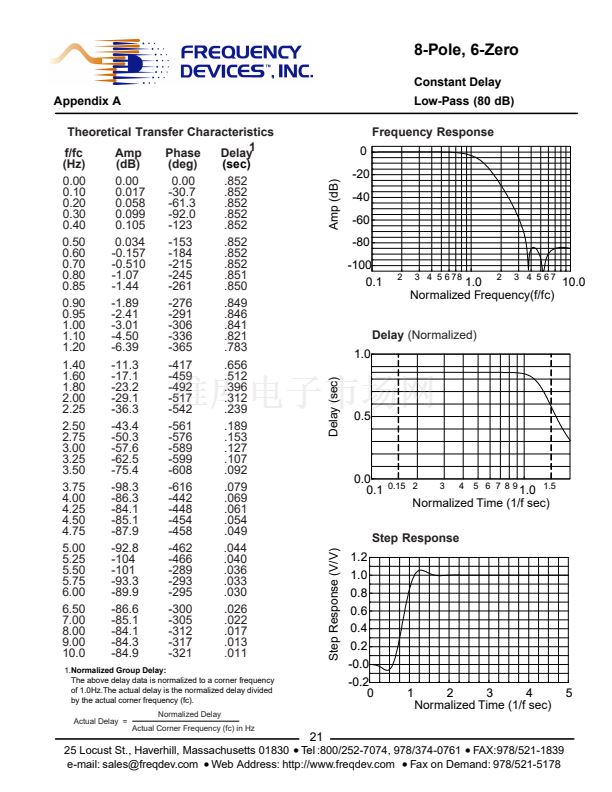

818L8D80 8-pole, 6-zero constant delay . . . . . . . . . . 3
2" x 4"
8-Pole Filters
25 Locust St, Haverhill, Massachusetts 01830 鈥?Tel: 800/252-7074, 978/374-0761 鈥?FAX: 978/521-1839
e-mail: sales@freqdev.com 鈥?Web Address: http://www.freqdev.com
