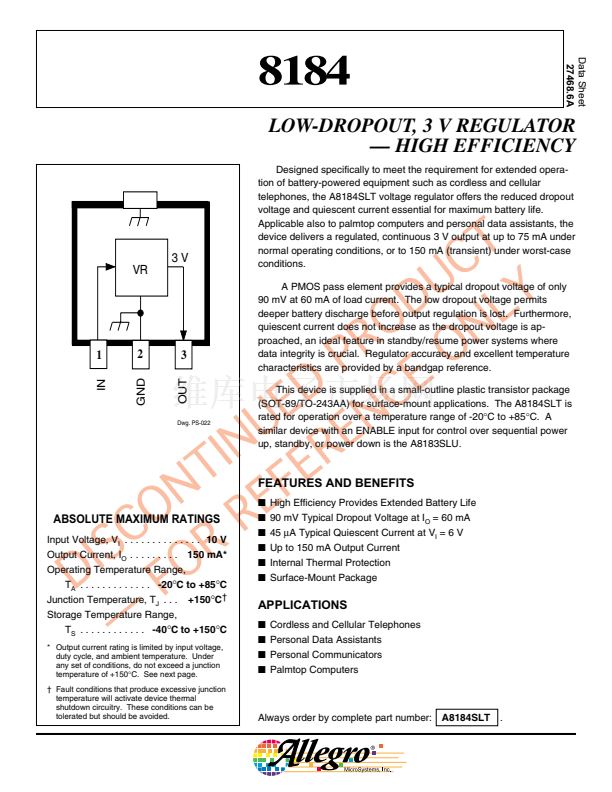

LOW-DROPOUT, 3 V REGULATOR
鈥?HIGH EFFICIENCY
Designed specifically to meet the requirement for extended opera-
tion of battery-powered equipment such as cordless and cellular
telephones, the A8184SLT voltage regulator offers the reduced dropout
voltage and quiescent current essential for maximum battery life.
Applicable also to palmtop computers and personal data assistants, the
device delivers a regulated, continuous 3 V output at up to 75 mA under
normal operating conditions, or to 150 mA (transient) under worst-case
conditions.

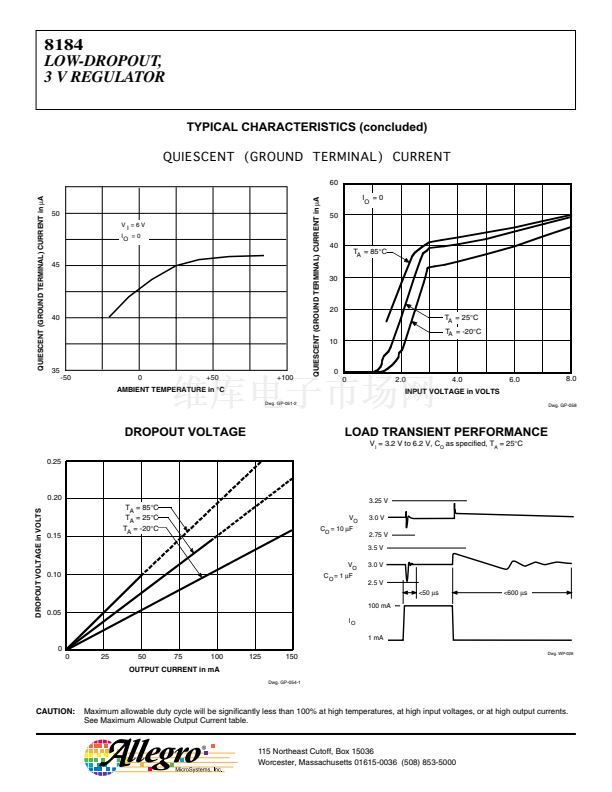

A PMOS pass element provides a typical dropout voltage of only
90 mV at 60 mA of load current. The low dropout voltage permits
deeper battery discharge before output regulation is lost. Furthermore,
quiescent current does not increase as the dropout voltage is ap-
proached, an ideal feature in standby/resume power systems where
data integrity is crucial. Regulator accuracy and excellent temperature
characteristics are provided by a bandgap reference.

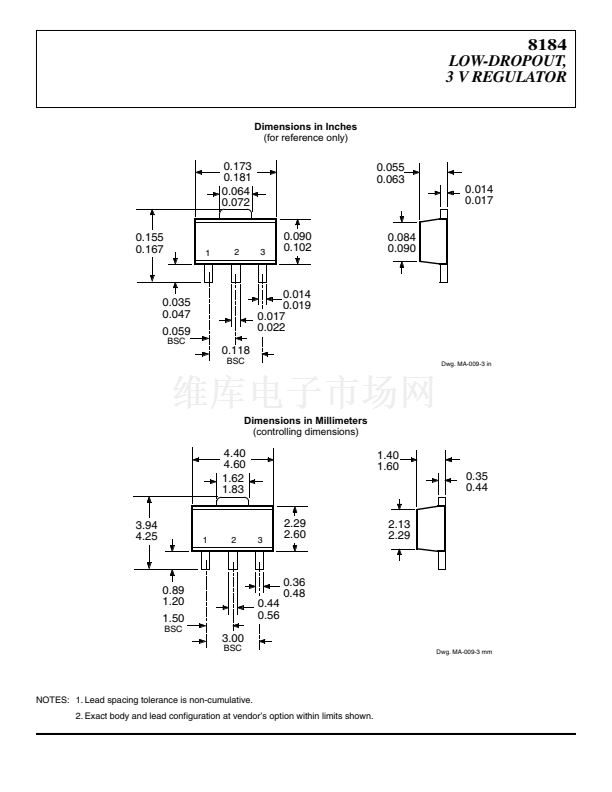

This device is supplied in a small-outline plastic transistor package
(SOT-89/TO-243AA) for surface-mount applications. The A8184SLT is
rated for operation over a temperature range of -20擄C to +85擄C. A
similar device with an ENABLE input for control over sequential power
up, standby, or power down is the A8183SLU.
Data Sheet
27468.6A
ABSOLUTE MAXIMUM RATINGS
Input Voltage, V
I
. . . . . . . . . . . . . .
10 V
Output Current, I
O
. . . . . . . . .
150 mA*
Operating Temperature Range,
T
A
. . . . . . . . . . . . .
-20
擄
C to +85
擄
C
Junction Temperature, T
J
. . .
+150
擄
C
鈥?/div>
Storage Temperature Range,
T
S
. . . . . . . . . . . .
-40
擄
C to +150
擄
C

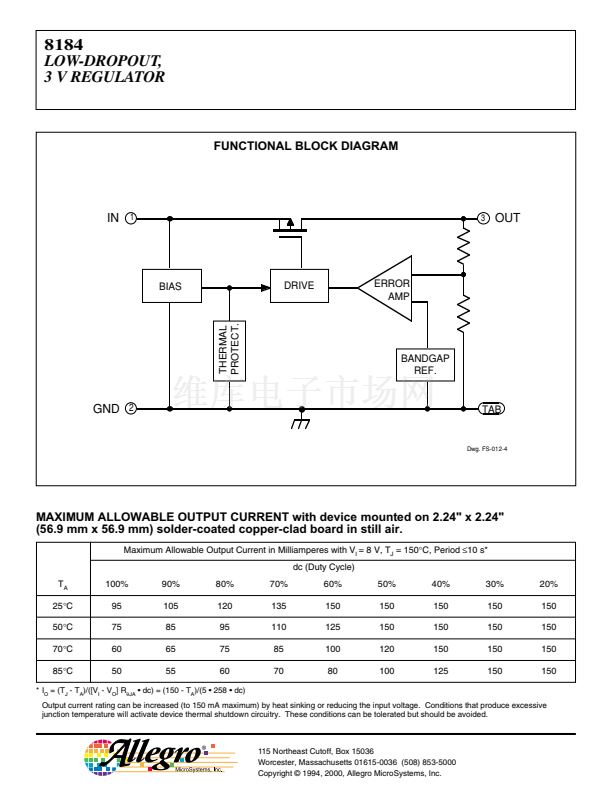

* Output current rating is limited by input voltage,
duty cycle, and ambient temperature. Under
any set of conditions, do not exceed a junction
temperature of +150擄C. See next page.
T
C
U Y
D L
O N
R O
P E
D C
E N
U E
IN ER
T F
N E
O R
C R
IS O
D F
鈥?/div>
VR
3V
1
2
3
GND
Dwg. PS-022
OUT
IN

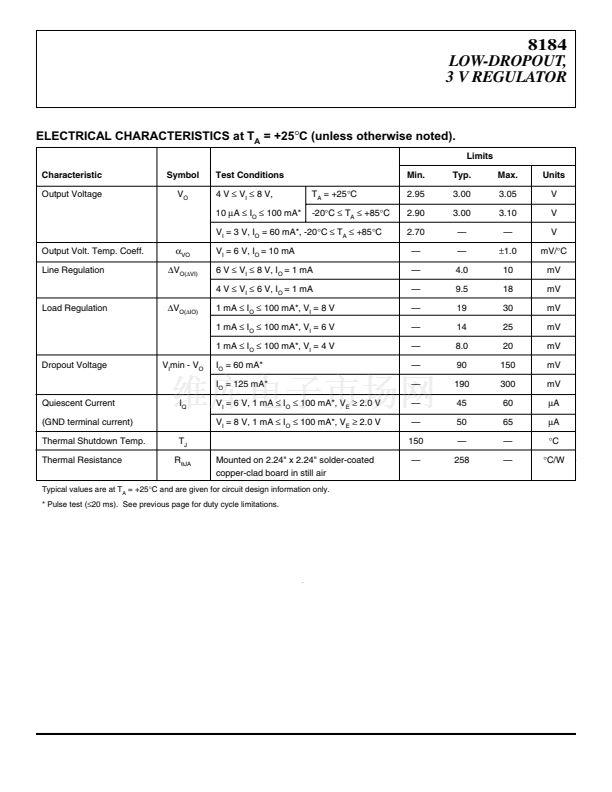

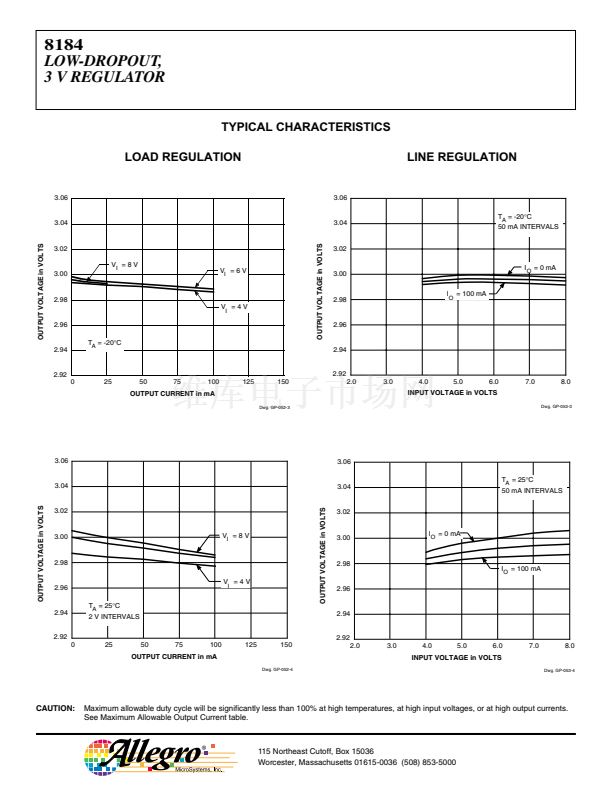

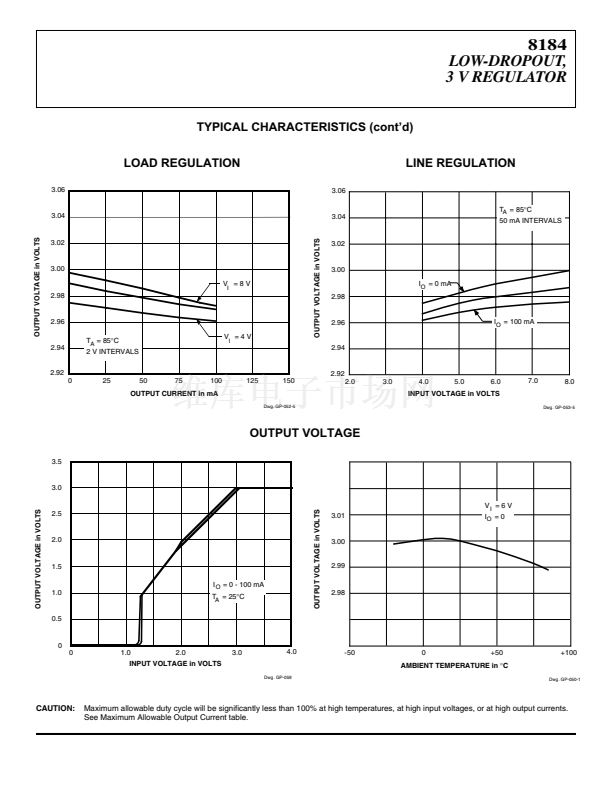

FEATURES AND BENEFITS
I
I
I
I
I
I
High Efficiency Provides Extended Battery Life
90 mV Typical Dropout Voltage at I
O
= 60 mA
45
碌A(chǔ)
Typical Quiescent Current at V
I
= 6 V
Up to 150 mA Output Current
Internal Thermal Protection
Surface-Mount Package
APPLICATIONS
I
I
I
I
Cordless and Cellular Telephones
Personal Data Assistants
Personal Communicators
Palmtop Computers
鈥?Fault conditions that produce excessive junction
temperature will activate device thermal
shutdown circuitry. These conditions can be
tolerated but should be avoided.
Always order by complete part number:
A8184SLT
.
