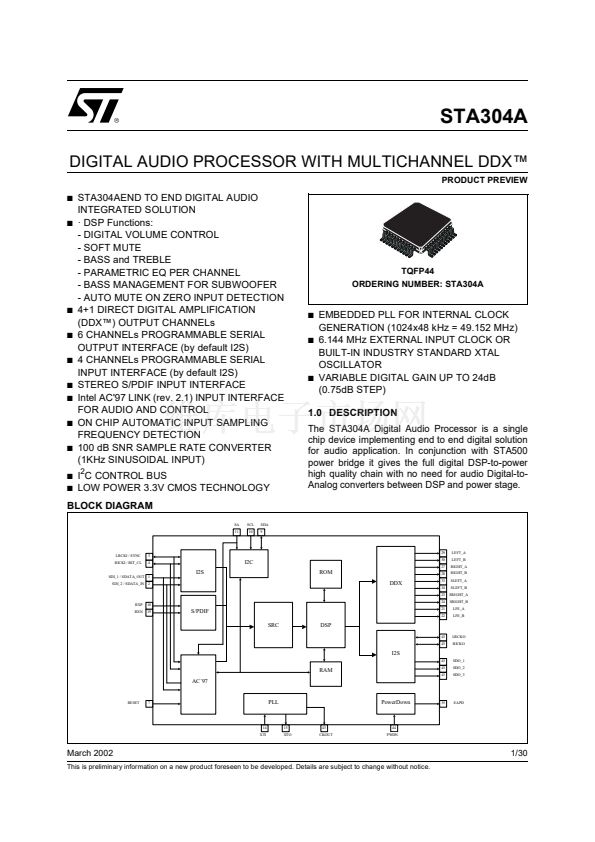

STA304A

DIGITAL AUDIO PROCESSOR WITH MULTICHANNEL DDX鈩?/div>

PRODUCT PREVIEW

STA304AEND TO END DIGITAL AUDIO

INTEGRATED SOLUTION

路 DSP Functions:

- DIGITAL VOLUME CONTROL

- SOFT MUTE

- BASS and TREBLE

- PARAMETRIC EQ PER CHANNEL

- BASS MANAGEMENT FOR SUBWOOFER

- AUTO MUTE ON ZERO INPUT DETECTION

4+1 DIRECT DIGITAL AMPLIFICATION

(DDX鈩? OUTPUT CHANNELs

6 CHANNELs PROGRAMMABLE SERIAL

OUTPUT INTERFACE (by default I2S)

4 CHANNELs PROGRAMMABLE SERIAL

INPUT INTERFACE (by default I2S)

STEREO S/PDIF INPUT INTERFACE

Intel AC'97 LINK (rev. 2.1) INPUT INTERFACE

FOR AUDIO AND CONTROL

ON CHIP AUTOMATIC INPUT SAMPLING

FREQUENCY DETECTION

100 dB SNR SAMPLE RATE CONVERTER

(1KHz SINUSOIDAL INPUT)

C CONTROL BUS

LOW POWER 3.3V CMOS TECHNOLOGY

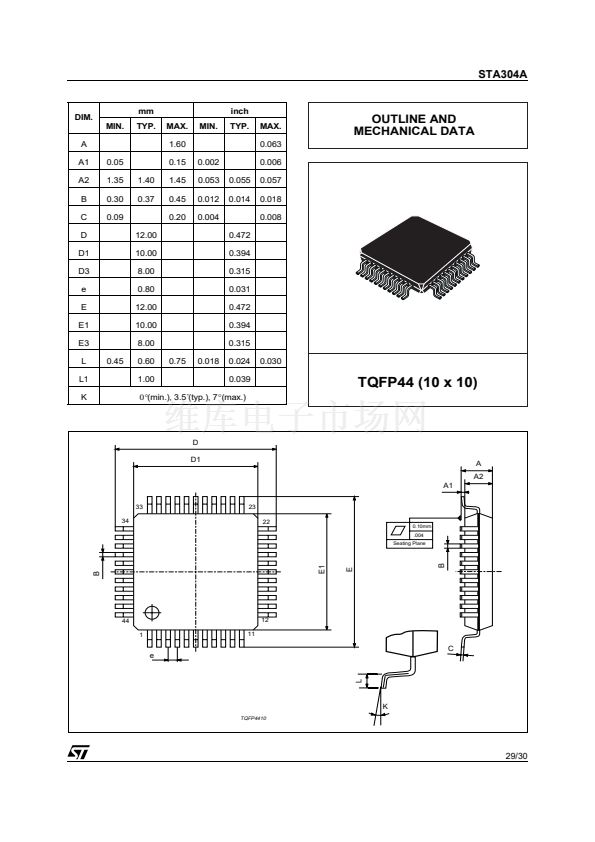

TQFP44

ORDERING NUMBER: STA304A

EMBEDDED PLL FOR INTERNAL CLOCK

GENERATION (1024x48 kHz = 49.152 MHz)

6.144 MHz EXTERNAL INPUT CLOCK OR

BUILT-IN INDUSTRY STANDARD XTAL

OSCILLATOR

VARIABLE DIGITAL GAIN UP TO 24dB

(0.75dB STEP)

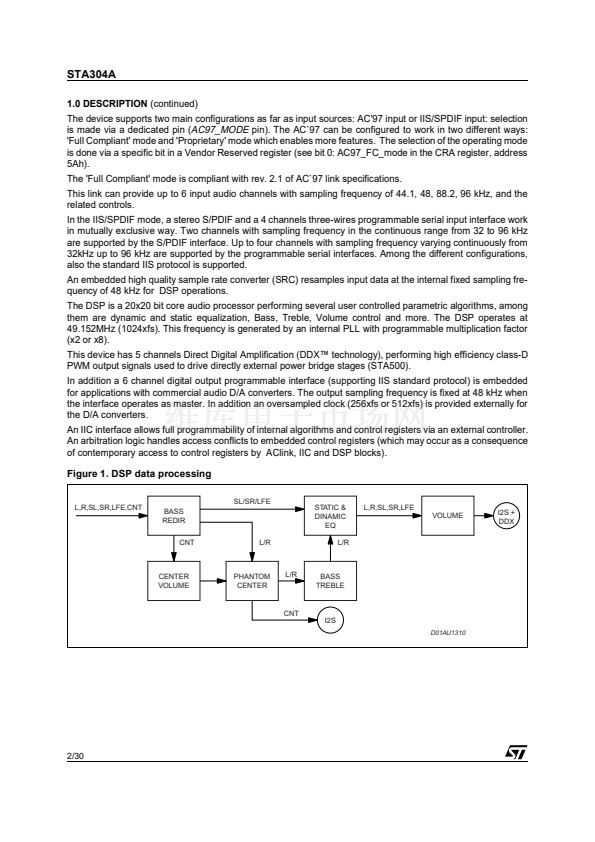

1.0 DESCRIPTION

The STA304A Digital Audio Processor is a single

chip device implementing end to end digital solution

for audio application. In conjunction with STA500

power bridge it gives the full digital DSP-to-power

high quality chain with no need for audio Digital-to-

Analog converters between DSP and power stage.

BLOCK DIAGRAM

SCL

SDA

LRCKI / SYNC

BICKI / BIT_CL

LEFT_A

LEFT_B

RIGHT_A

RIGHT_B

SLEFT_A

SLEFT_B

SRIGHT_A

SRIGHT_B

LFE_A

LFE_B

I2C

I2S

ROM

DDX

SDI_1 / SDATA_OUT 1

SDI_2 / SDATA_IN 2

RXP

RXN

S/PDIF

SRC

DSP

LRCKO

BICKO

I2S

SDO_1

SDO_2

SDO_3

RAM

AC`97

RESET

PLL

PowerDown

EAPD

XTI

XTO

CKOUT

PWDN

March 2002

This is preliminary information on a new product foreseen to be developed. Details are subject to change without notice.

1/30
